Enerpac Portable Low Height Hydraulic Cylinder Single Acting 20t Capacity 700 bar Maximum Operating Pressure RSM200

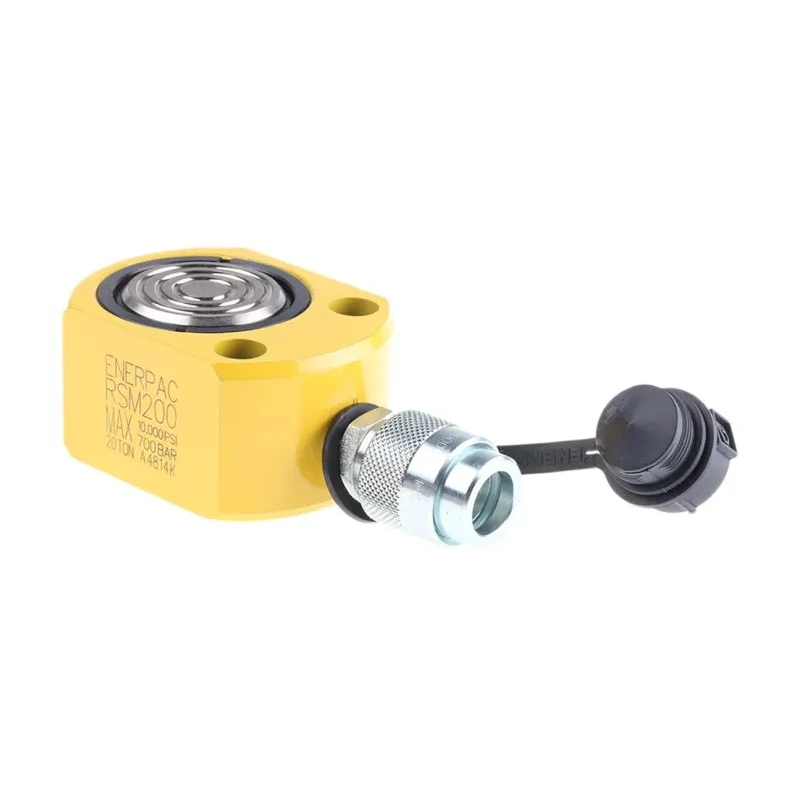

Enerpac RSM200 Portable Low Height Hydraulic Cylinder is a single acting hydraulic cylinder engineered for use in extremely confined spaces where standard cylinders cannot fit. The cylinder offers a 20 ton capacity and operates at a maximum pressure of 700 bar, making it suitable for demanding industrial, manufacturing, and construction applications.

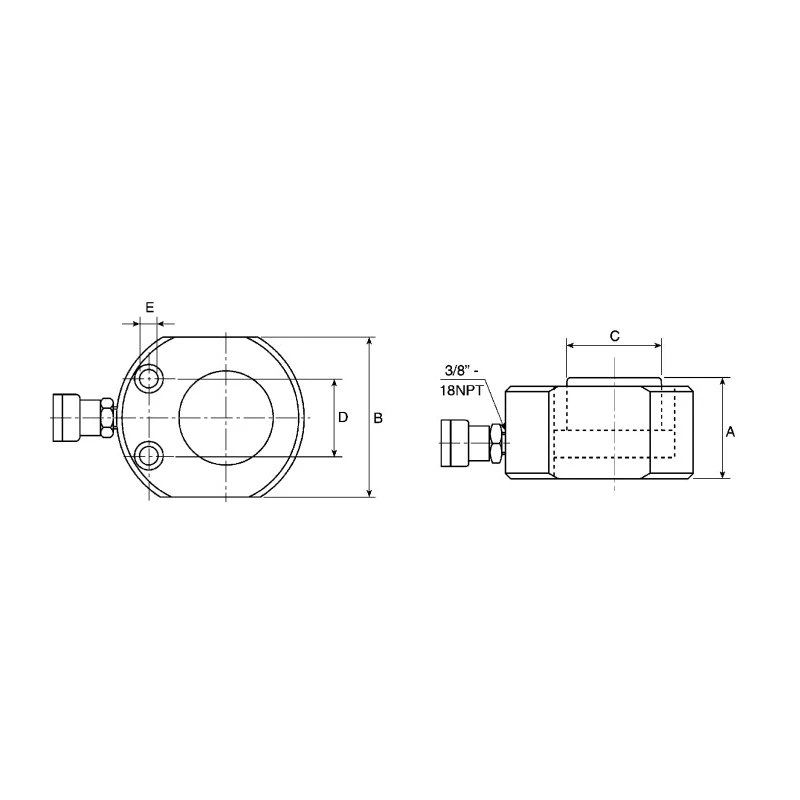

Its compact and flat profile includes a stroke length of 11 mm, a closed height of 51 mm, and an extended height of 62 mm, facilitating operation in low clearance environments. Constructed from high strength alloy steel with a baked enamel finish, the cylinder ensures durability against wear and corrosion. The chrome plated plunger enhances resistance to rust and wear while hardened saddles prevent piston jamming, contributing to reliable performance.

The cylinder is designed with ANSI B30.1 compliance for operational safety. It features port connections sized 3/8-18 NPT and is equipped with a female high flow coupler to maintain hydraulic efficiency. Heavy-duty return springs enable rapid piston retraction, improving operational speed during repetitive tasks. The flat Jac® spring return design allows for compactness and easy mounting via mounting holes, optimizing installation in tight workspaces.

This hydraulic cylinder is ideal for hydraulic repair shops, industrial maintenance, heavy equipment manufacturing, and fluid power systems where robust, compact hydraulic actuators are required. Its low profile design makes it perfect for applications such as metal forming, assembly lines, and hydraulic press operations.

The product weighs 3.1 kg, enabling easy handling and transportation for portable hydraulic needs. It does not carry any specific certifications but meets industrial quality and safety standards. The cylinder's oil capacity is 32 cm³ and the effective cylinder area is 28.7 cm², balancing power and speed effectively.

The cylinder’s flat and compact design suits extremely confined spaces. High strength alloy steel construction with baked enamel finish enhances durability. Chrome plated plunger improves corrosion resistance and wear life.

Hardened saddles prevent piston jamming and extend service life. ANSI B30.1 standard compliance ensures safety in use. 3/8-18 NPT port connections with female coupler ensure hydraulic efficiency. Heavy-duty return springs provide fast piston retraction for efficient operation.

Lightweight and portable with 3.1 kg gross weight. Suitable for industrial, construction, fluid power, and maintenance applications. Manufactured in China under strict quality control. Explore more Hydraulic Cylinder options and tools in our Industrial Tools & Equipment category on EnvMart for robust hydraulic solutions.
