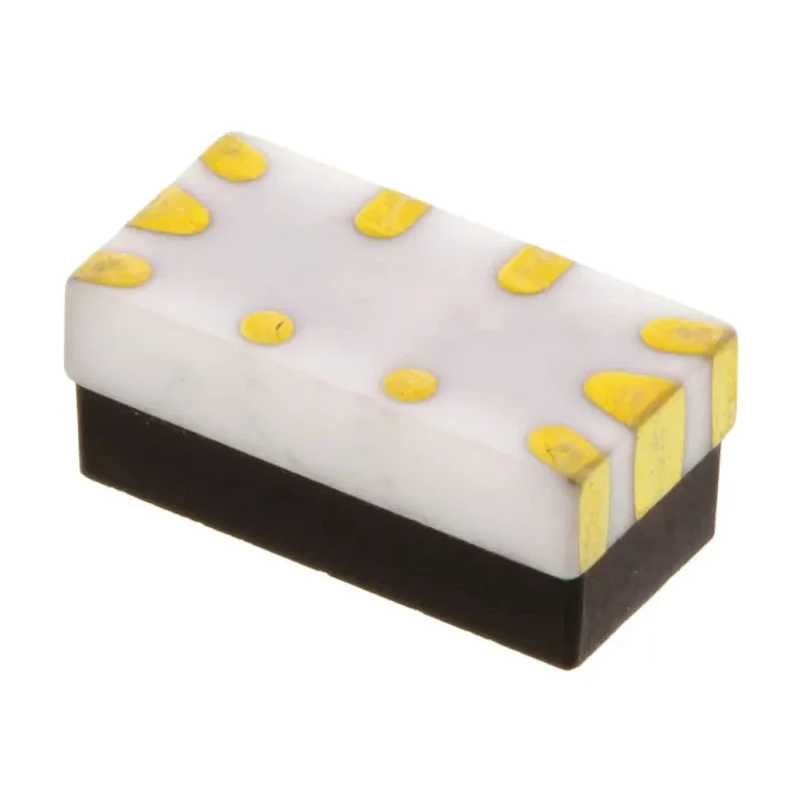

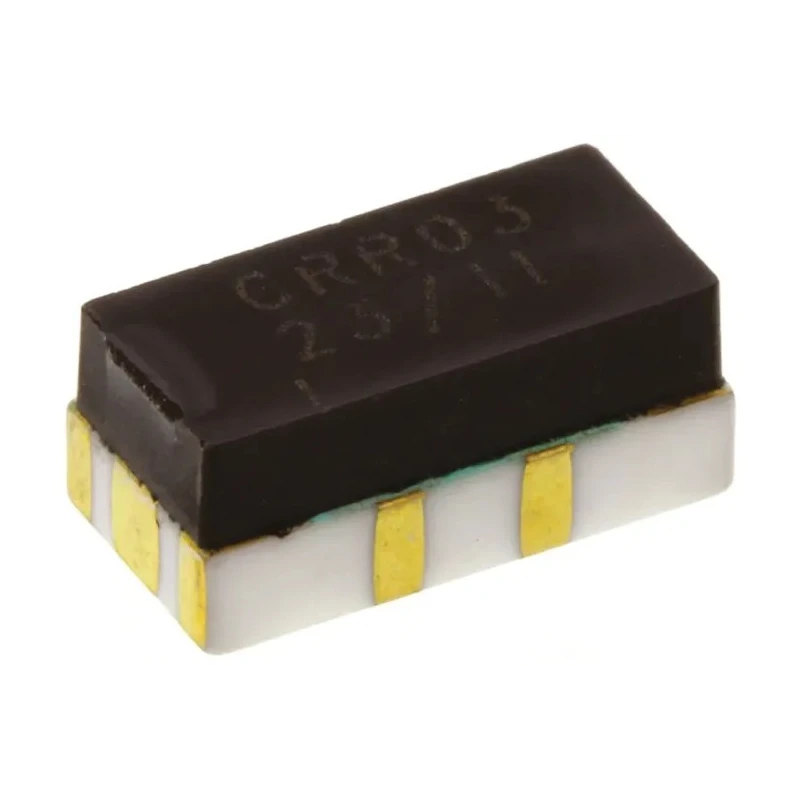

Meder SPST Surface Mount Micro-Miniature Reed Relay Ceramic Thermoset Package CRR03-1A

Meder CRR03-1A SPST Surface Mount Reed Relay is a micro-miniature component designed for electrical and automation applications requiring precise signal switching. Manufactured in Germany, this relay offers robust performance with a ceramic thermoset moulded package optimized for surface mounting and reflow soldering up to 260°C.

The relay has one normally open contact equipped with gold plated contact pads, facilitating low contact resistance and excellent conductivity. Its leadless design minimizes complications such as lead skewing during automated PCB assembly, enhancing manufacturing efficiency.

Its low profile and compact size make it suitable for densely populated circuit boards where space saving is essential. The device features a typical insulation resistance of 10¹⁴ ohms, providing reliable isolation and minimal leakage current, crucial for sensitive signal conditioning tasks.

This relay exhibits a very low thermal offset of approximately 1 microvolt, reducing signal distortion and enabling accurate switching in precision electronic equipment. The CRR03-1A is ideal for industrial, laboratory, communication, and automation control systems where space, reliability, and electrical performance are key considerations.

Features one normally open contact with gold plated contact pads for enhanced conductivity. Constructed in a ceramic thermoset moulded low profile package suitable for surface mounting. Capable of withstanding reflow soldering operations up to 260°C.

Exhibits extremely high insulation resistance up to 10¹⁴ ohms for signal integrity. Low thermal offset voltage typically 1 microvolt, ensuring precision switching performance. Leadless design eliminates lead skewing during surface mounting.

Extremely small form factor aids in space saving on PCB layouts. Manufactured in Germany ensuring high quality standards and reliability.

This product is a reliable choice for electronic design engineers and manufacturers focusing on advanced automation and signal control solutions. Explore the Reed Relay category at EnvMart for complementary devices and accessories.
