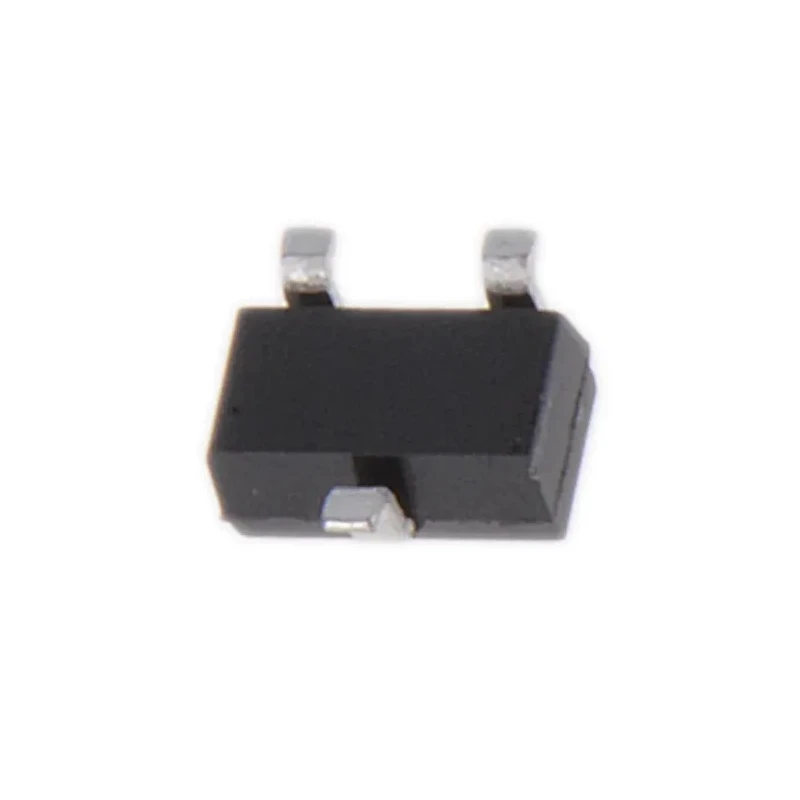

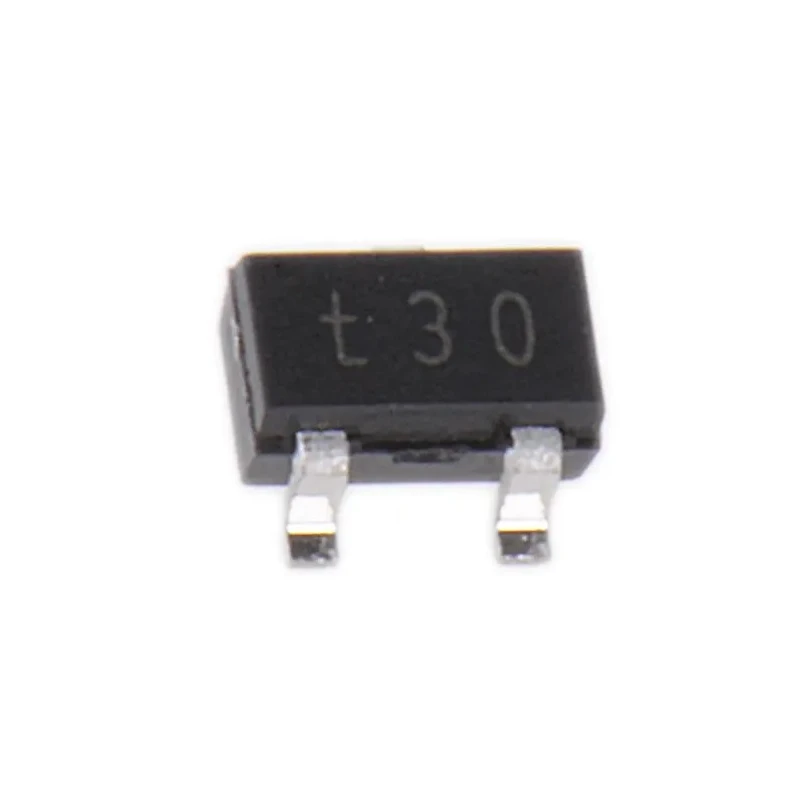

Nexperia Digital Transistor NPN 100 mA 50 V 3-Pin UMT PDTC114YU,115

The Nexperia PDTC114YU,115 is a digital NPN transistor designed for use in switching and amplification applications within electronic circuits. It features integrated bias resistors, often called "digital transistors," which enable direct interfacing with digital logic outputs without the need for additional components.

This transistor is packaged in a compact 3-pin UMT surface mount form factor, allowing for efficient PCB space utilization. With a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V, it caters well to moderate power applications.

The device supports a broad operating temperature range from -65°C to 150°C, making it suitable for industrial and automotive environments. It meets the automotive standard AEC-Q101 and is compliant with RoHS directives, ensuring quality and environmental safety.

Its high transition frequency of 230 MHz allows for faster switching performance in digital circuits. The minimum DC current gain (hFE) of 100 provides reliable gain characteristics for control and amplification tasks. Power dissipation is rated at 200 mW, indicating low energy loss during operation.

Used for switching and amplification in electronic circuits. Compact 3-pin UMT surface mount package ensures easy PCB integration. Built-in bias resistor enhances digital driving capabilities. High transition frequency of 230 MHz supports high-speed operation.

Operates reliably from -65°C up to 150°C temperature range. Complies with RoHS environmental standards. AEC-Q101 certified for automotive applications ensuring robustness. Minimum DC current gain (hFE) is 100, suitable for diverse control tasks.

Low power dissipation rating of 200 mW supports energy-efficient designs.

The PDTC114YU,115 transistor is ideal for use in industrial electronics, automotive controls, and consumer electronic products requiring reliable digital transistor components. Its integration facilitates simpler circuit designs and improves digital signal interfacing. Explore the full range of semiconductors and Digital Transistors available in our Electronics & Electricals category on EnvMart.
