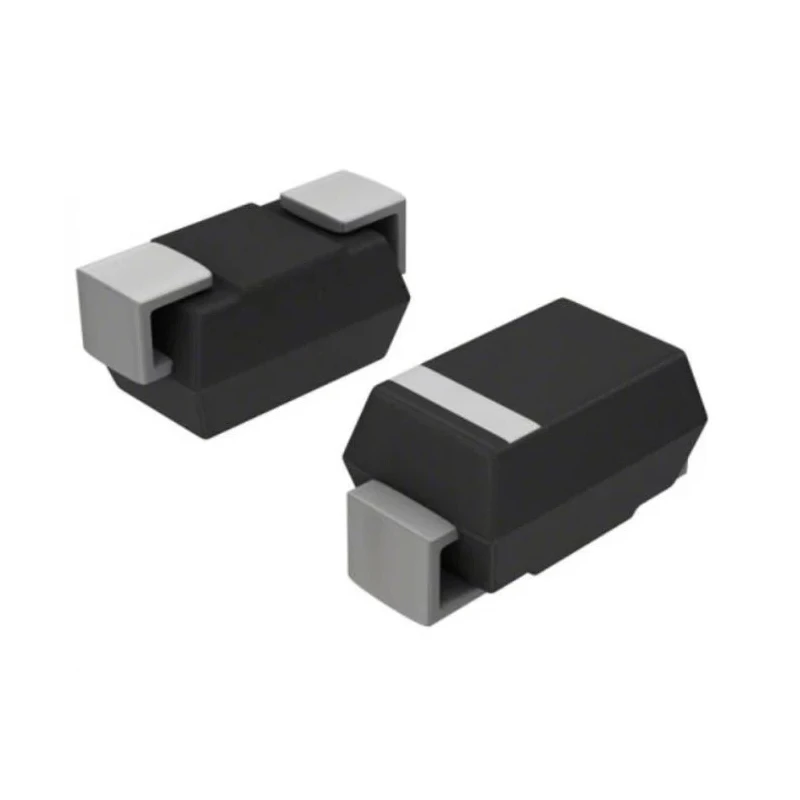

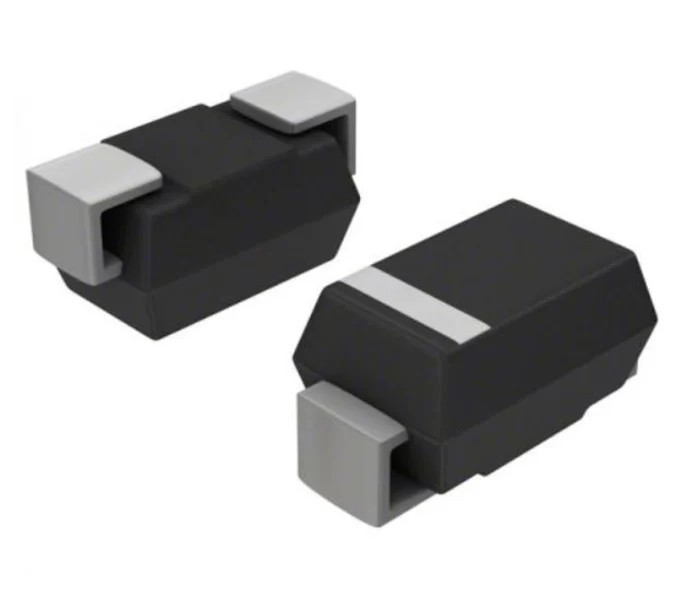

Vishay 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ33CA-E3/52
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ33CA-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 36.7V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 11.3A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Bi-directional diode configuration protects circuits against voltage transients.
- Minimum breakdown voltage of 36.7 V ensures effective voltage clamping.
- Surface mount DO-214 package type supports compact PCB designs.
- Maximum operating temperature of 150°C suitable for demanding industrial environments.
- Fast response time and low incremental surge resistance improve circuit reliability.
- Clamping voltage of 53.3 V limits transient voltage spikes effectively.
- Peak pulse current rating of 11.3 A supports high transient energy dissipation.
- Compliance with AEC-Q101 automotive standard confirms quality and durability.
Product Description
Vishay SMBJ33CA-E3/52 is a 1-element bi-directional TVS diode designed for transient voltage suppression in various electronic circuits. It can dissipate up to 600 watts peak pulse power, making it suitable for protecting sensitive components from voltage spikes caused by switching or inductive loads in industrial, automotive, and consumer electronics applications.

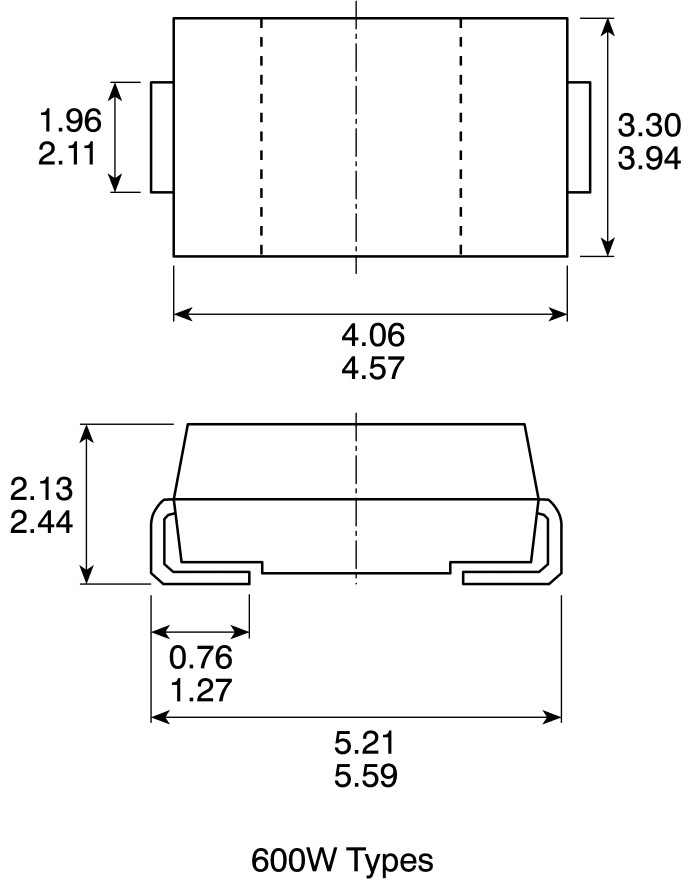

This device features a surface mount DO-214 package with a compact footprint measuring 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height, supporting modern PCB assembly techniques. The diode's breakdown voltage begins at 36.7 volts, while it maintains a maximum reverse standoff voltage of 33 volts, enabling precise voltage clamping and minimal power dissipation during normal operation.
Rated for operation in temperatures from -55°C to 150°C and compliant with the automotive AEC-Q101 standard, it ensures reliable performance in harsh environments. The fast response time and low incremental surge resistance of the TRANSZORB series offer excellent transient protection with minimal impact on circuit functionality.
Bi-directional voltage suppression for protecting circuits in both polarities. 600 W peak pulse power dissipation for robust transient handling. Compact DO-214 surface mount package for space-saving designs. Wide operating temperature range from -55°C to 150°C for diverse environments.
Low leakage current and excellent clamping characteristics for efficiency. Meets automotive standards for quality assurance in vehicle electronics. Ideal for industrial, automotive, telecommunications, and consumer electronics applications.
This Vishay TVS Diode is engineered to safeguard sensitive components against ESD and transient voltage faults in high-reliability settings such as manufacturing plants, automotive control units, power supplies, and communication systems.
Explore the range of Vishay semiconductors for your electronic protection needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMBJ33CA-E3/52 can dissipate up to 600 watts of peak pulse power, making it suitable for high transient energy dissipation applications.
The minimum breakdown voltage of this TVS diode is 36.7 volts, which ensures effective voltage clamping during transient events.
This diode is rated for operation in temperatures up to 150°C, suitable for demanding industrial environments.
The clamping voltage for this model is 53.3 volts, which helps limit transient voltage spikes effectively.
It comes in a surface mount DO-214 package type, which supports compact PCB designs.
The maximum reverse stand-off voltage for this model is 33 volts, allowing for precise voltage clamping during normal operation.
The maximum peak pulse current rating for this diode is 11.3 A, supporting its ability to handle high transient energy.
This model measures 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
It is compliant with the AEC-Q101 automotive standard, confirming its quality and suitability for automotive applications.
The minimum operating temperature for this model is -55°C, allowing it to function in diverse environmental conditions.
This diode features a single bi-directional configuration, providing voltage suppression for both polarities.
It is designed for use in industrial, automotive, telecommunications, and consumer electronics applications, providing protection against voltage transients.
