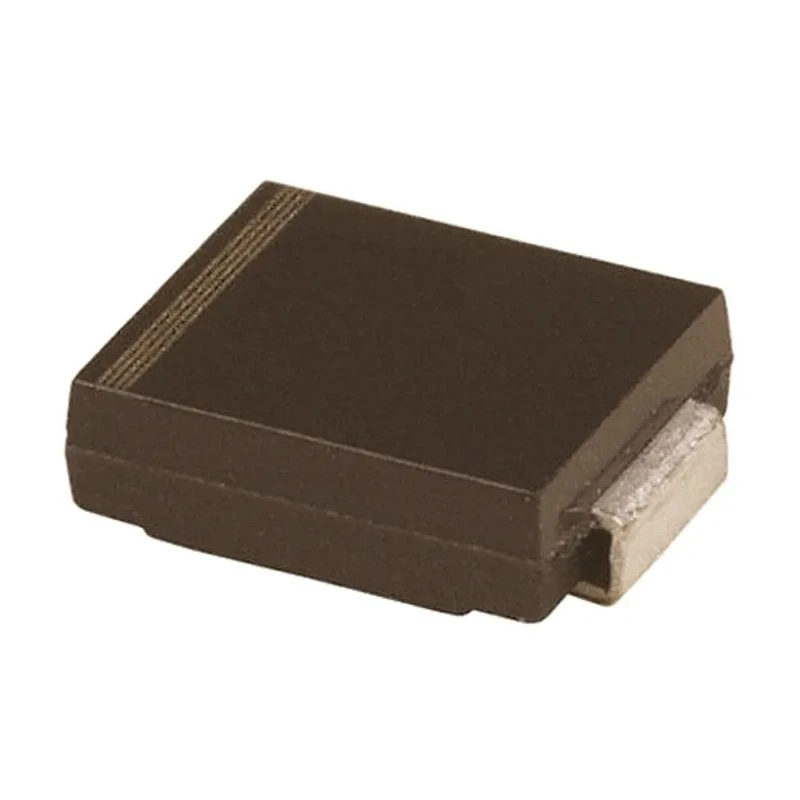

Vishay 1-Element Bi-Directional TVS Diode 400 W 2-Pin Surface Mount DO-214 P4SMA30CA-E3/61
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.087mm |
| Length | 4.5mm |
| Model | P4SMA30CA-E3/61 |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 41.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28.5V |
| Maximum Reverse Stand-off Voltage Vwm | 25.6V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 9.7A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This TVS diode provides bidirectional transient voltage suppression.
- It has a minimum breakdown voltage of 28.5 V and clamp voltage of 41.4 V.
- Designed for robust protection with peak pulse current rating of 9.7 A.
- Suitable for automotive applications, conforming to AEC-Q101 standard.
- The device supports a wide operating temperature range from -65°C to 150°C.
- The compact DO-214 package measures 4.5 mm in length and 2.79 mm in width.
- Offers low reverse leakage current of 1 μA for stable performance.
- Includes ESD protection and features a single element per chip configuration.
Product Description
Vishay P4SMA30CA-E3/61 is a high-performance 1-element bi-directional Transient Voltage Suppression (TVS) diode designed to protect sensitive electronic components from voltage spikes and transient surges. With a peak pulse power dissipation rating of 400 W, this device provides effective voltage clamping and surge protection in compact 2-pin DO-214 surface mount packaging.
Featuring a minimum breakdown voltage of 28.5 V and a clamping voltage of 41.4 V, the diode operates reliably within an extended temperature range of -65°C to 150°C, making it suitable for demanding industrial and automotive environments where robust transient suppression is critical. The device meets the automotive industry standard AEC-Q101, indicating its suitability for automotive electronic systems requiring high reliability and quality.
The single-element configuration simplifies circuit design while ensuring robust protection. Its bidirectional design supports both positive and negative transients, providing versatility for various PCB applications. The compact size with dimensions of 4.5 mm length and 2.79 mm width facilitates high-density PCB layouts while maintaining ease of assembly thanks to the surface mount package type.
This TVS diode exhibits a low maximum reverse leakage current of 1 μA, ensuring minimal standby current consumption and enhanced efficiency. Peak pulse current capability rated at 9.7 A guarantees withstanding severe transient events without device failure. This makes it ideal for use in power and signal line protection across electronics, industrial controls, automotive electronics, and communication equipment.
This TVS diode is ideal for transient voltage suppression in electronic circuits exposed to voltage spikes. The device supports automotive electronic applications with AEC-Q101 certification. Its compact DO-214 surface mount package supports automated PCB assembly.
Applicable in industrial, automotive, communication, and power supply protection systems. Single-element, bi-directional configuration offers effective polarity-independent protection.
Choose Vishay P4SMA30CA-E3/61 for reliable, industry-grade transient suppression to enhance device longevity and improve system stability in electrical and electronic designs. Explore more TVS Diodes and related semiconductor components available at EnvMart for comprehensive PCB protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay P4SMA30CA-E3/61 is rated at 400 W.
The minimum breakdown voltage for this TVS diode is 28.5 V.
The clamping voltage of this model is 41.4 V.
The maximum reverse leakage current for the Vishay P4SMA30CA-E3/61 is 1 μA.
This model operates within a temperature range of -65°C to 150°C.
The P4SMA30CA-E3/61 has a pin count of 2 and features a single-element configuration.
This diode is packaged in a DO-214 surface mount type.
The Vishay P4SMA30CA-E3/61 conforms to the AEC-Q101 automotive standard.
The maximum peak pulse current capability of this TVS diode is 9.7 A.
The dimensions of this model are 4.5 mm in length, 2.79 mm in width, and 2.087 mm in height.
This diode is suitable for automotive electronics, industrial controls, communication equipment, and power supply protection systems.
The P4SMA30CA-E3/61 provides bidirectional transient voltage suppression, protecting sensitive electronic components from voltage spikes and surges.
