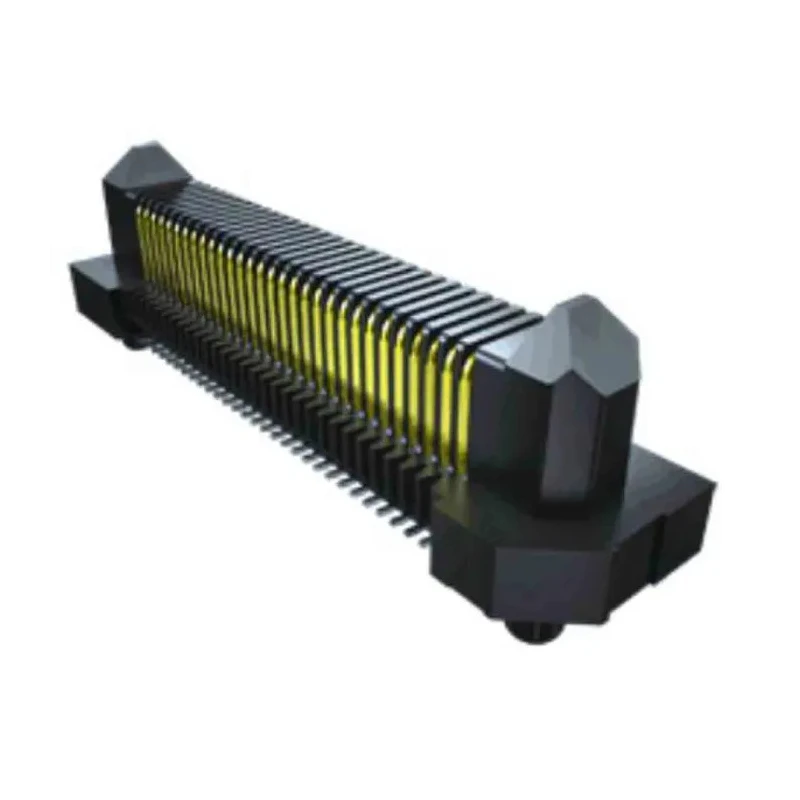

Samtec ERM5 Series Vertical Surface PCB Header 80 Contacts 0.5 mm Pitch 2 Row Shrouded ERM5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 269V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 1.5A |
| Model | ERM5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Supports current rating of 1.5A for efficient power handling.
- Constructed with liquid crystal polymer housing for high durability.
- Phosphor bronze contact material with gold plating ensures excellent conductivity and wear resistance.
- Vertical orientation with surface mount type for easy PCB assembly.
- Operational temperature range from -55°C to 125°C for demanding environments.
- Utilizes Edge Rate contact system optimized for high-mating cycles and 28Gbps performance.
- Designed to operate at voltage up to 269V.
- Features smooth broad milled contact surface for increased wear life.
Product Description
Samtec ERM5 series vertical surface PCB header model ERM5 provides a high-performance connection solution with an 80-contact count configured in 2 rows with a 0.5 mm pitch. Designed specifically for high-speed systems, this PCB header utilizes the Edge Rate contact system, delivering excellent mating cycle durability and supporting data rates up to 28Gbps.
The housing material is liquid crystal polymer, offering robustness and high thermal stability. The contacts are made from phosphor bronze and plated with gold to ensure excellent conductivity and resistance to corrosion and wear. The connector is shrouded and oriented vertically, mounted via surface solder for reliable board attachment.
Operating temperature ranges from -55°C to 125°C, making it suitable for challenging industrial and electronic environments. It is rated for 1.5 amperes current and supports voltages up to 269V, suitable for various electronics and power applications.
The smooth and broad milled contact surfaces increase wear life and ensure consistent electrical performance. As a male connector designed for board-to-board applications, it provides secure and stable connections in compact electronic systems.
Supports 1.5A current rating. Liquid crystal polymer housing for durability. Gold-plated phosphor bronze contacts. Shrouded, vertical, 2-row configuration. Surface mount termination type with solder. Operating range from -55°C to 125°C.
Edge Rate contact system for high-speed performance. Rated voltage up to 269V. Designed for high mating cycles and 28Gbps signal rates. Male contact gender.
This PCB header is ideal for use in electronics manufacturing, high-speed communication devices, industrial automation equipment, and other applications requiring reliable and compact board-to-board connections. Choose this component for advanced electronic designs where signal integrity and connector durability are critical.
Explore more products in our PCB Header category to find related connectors and accessories for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.5A, making it suitable for various power applications.
It is rated for a maximum voltage of 269V, allowing it to be used in high-voltage applications.
The housing is made from liquid crystal polymer, while the contacts are phosphor bronze with gold plating for excellent conductivity and wear resistance.
The operational temperature range is from -55°C to 125°C, suitable for demanding industrial environments.
This model features 80 contacts arranged in 2 rows with a 0.5 mm pitch.
It uses a surface mount termination type with solder, facilitating easy PCB assembly.
The ERM5 series is designed with a vertical orientation for efficient space utilization on PCBs.
This model features male contacts, designed for board-to-board applications.
The Edge Rate contact system is optimized for high-mating cycles and supports data rates of up to 28Gbps, ensuring reliable performance in high-speed applications.
It is ideal for use in electronics manufacturing, high-speed communication devices, and industrial automation equipment, where reliable board-to-board connections are critical.
The smooth broad milled contact surface increases wear life and ensures consistent electrical performance over time.
The country of origin for this model is India.
