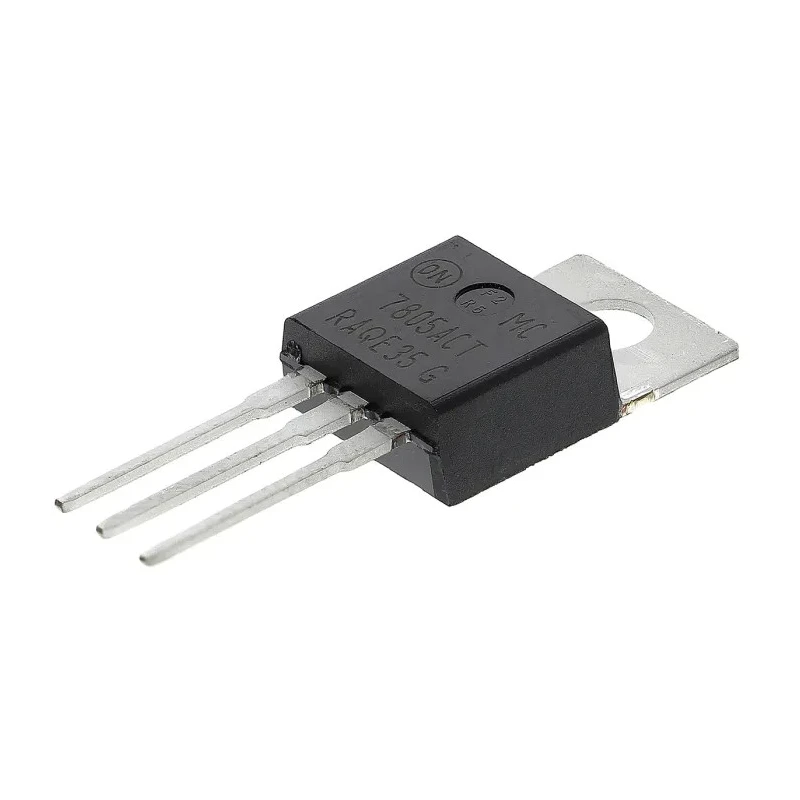

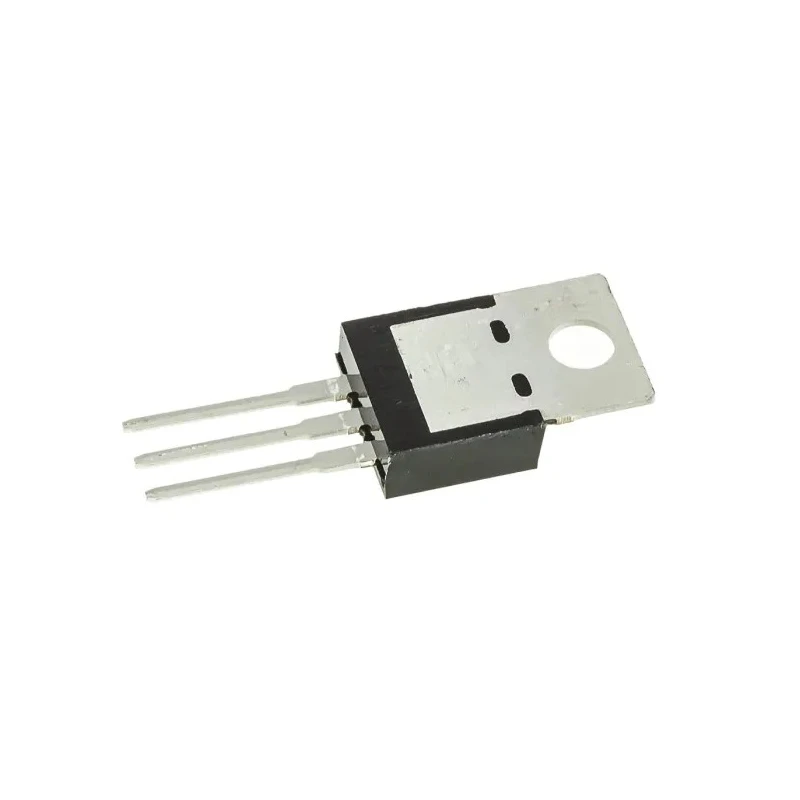

onsemi 5V Linear Voltage Regulator TO-220 3-Pin MC7805ACTG

onsemi MC7805ACTG is a high-quality 5-volt linear voltage regulator integrated circuit housed in a TO-220 three-pin through-hole package. It is engineered for fixed-voltage regulation across a wide variety of electronic devices requiring a constant 5V supply. This monolithic IC incorporates internal thermal overload protection and current limiting features, along with safe area compensation, enhancing its reliability and durability for continuous operation.

This voltage regulator operates within an input voltage range of 5V minimum to a maximum of 35V, with a maximum operating temperature rating of 125°C. It maintains a low quiescent current of 3.2mA, reducing power consumption and improving efficiency in battery-powered or energy-sensitive applications. Its positive polarity design makes it suitable for standard linear voltage regulation tasks.

The package is designed for through-hole mounting, facilitating easy assembly in printed circuit boards. The device measures approximately 30.02mm in height, 10.28mm in length, and 4.82mm in width. It complies with the automotive standard AEC-Q100, providing assurance of robust performance in automotive and industrial environments.

This voltage regulator is ideal for use in industrial controls, power supplies, consumer electronics, automotive electronics, and numerous other applications requiring precise voltage regulation. Manufactured in the Czech Republic under stringent quality control, it ensures long-term reliability and consistent electrical performance.

Monolithic integrated circuit providing fixed 5V output voltage. Internal thermal overload protection and current limiting with safe area compensation. TO-220 package for easy through-hole mounting in PCB designs. Operates with input voltages from 5V to a maximum of 35V.

Quiescent current of 3.2mA ensuring efficient energy use. Complies with automotive standard AEC-Q100 for enhanced reliability. Dimensions of 30.02mm height × 10.28mm length × 4.82mm width. Positive polarity fixed voltage regulator suitable for wide applications.

Manufactured in Czech Republic with ISO quality standards. Explore onsemi Voltage Regulators and other power management integrated circuits to optimize your electronic system designs at EnvMart.
