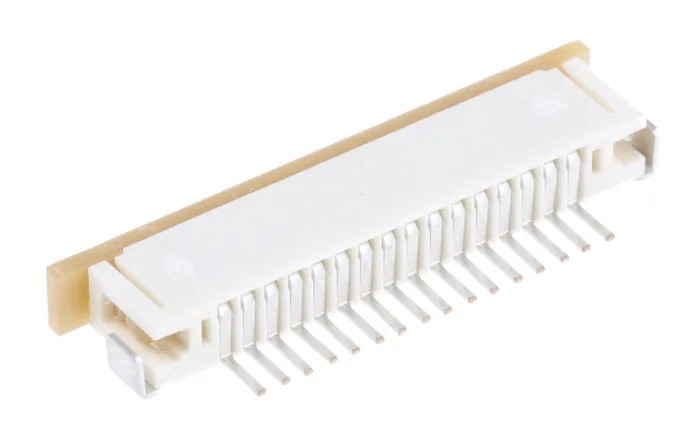

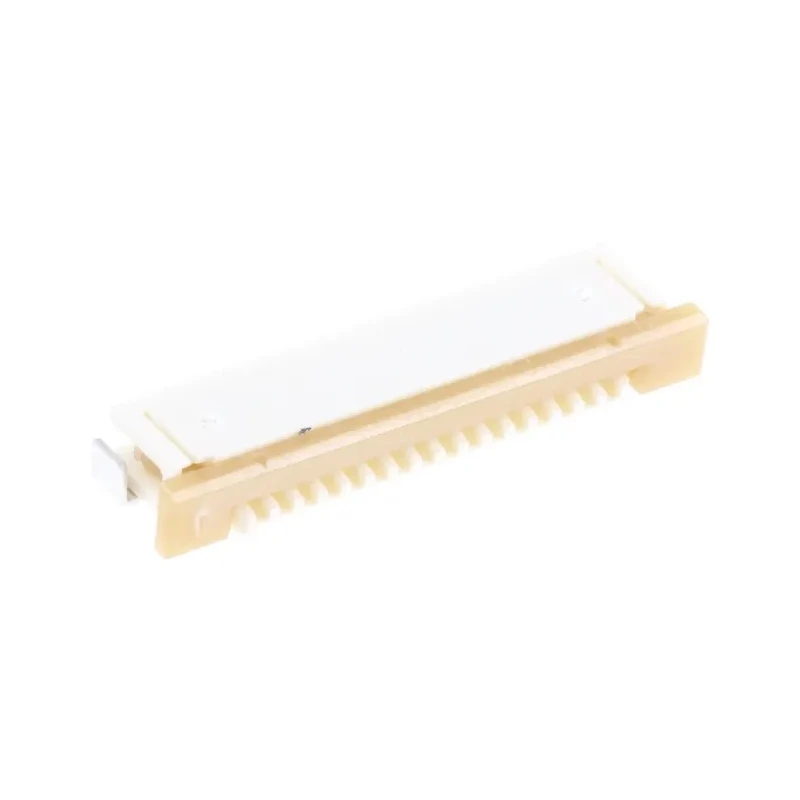

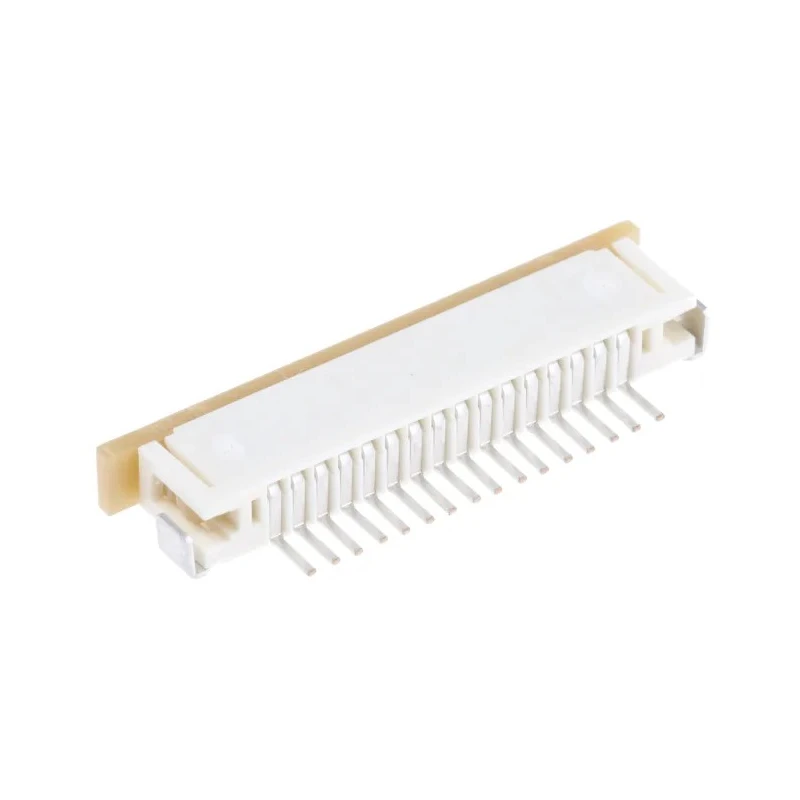

Molex 1 mm Pitch 16 Way Right Angle Female FPC Connector, Solder 52271-1679

Molex 52271-1679 is a 16-way right angle female FPC connector with a 1 mm pitch, designed for reliable and compact PCB interconnections. The solder termination and surface mount design ensure firm and durable connections in industrial and commercial applications.

This connector uses phosphor bronze contacts plated with a tin bismuth alloy, providing excellent electrical conductivity and corrosion resistance while the nylon housing offers electrical insulation and mechanical strength. The bottom contact position and right angle orientation optimize space usage on PCBs, particularly in tight packaging applications.

The connector features a slide actuator enabling zero insertion force (ZIF) for easy cable insertion and removal, minimizing wear and maintaining contact reliability over repeated cycles. It includes solder tabs for secure PCB mounting and strain relief.

Rated for 50 V AC voltage and 500 mA current rating, this connector operates effectively between -40°C and 85°C. It is suitable for usage in automotive navigation and audio systems, digital cameras, home security devices, medical monitoring instruments, and mobile communication equipment.

Compact 1.00 mm pitch with 16 contacts for high-density connectors. Right angle design with bottom contact offers space-saving PCB installation. Durable phosphor bronze contact material and tin bismuth alloy plating ensure conductivity and longevity.

ZIF slide actuator design facilitates easy and secure FPC cable insertion and removal. Nylon housing with locking mechanism provides insulation and secure assembly. Solder termination and tabs allow robust mechanical retention and strain relief on PCB.

Wide operating temperature range from -40°C to 85°C for various industrial environments. Applicable for diverse sectors including automotive, consumer electronics, medical, and communications. Explore the Molex FPC Connector range for your precision electronic component needs with reliable quality and performance from EnvMart.
