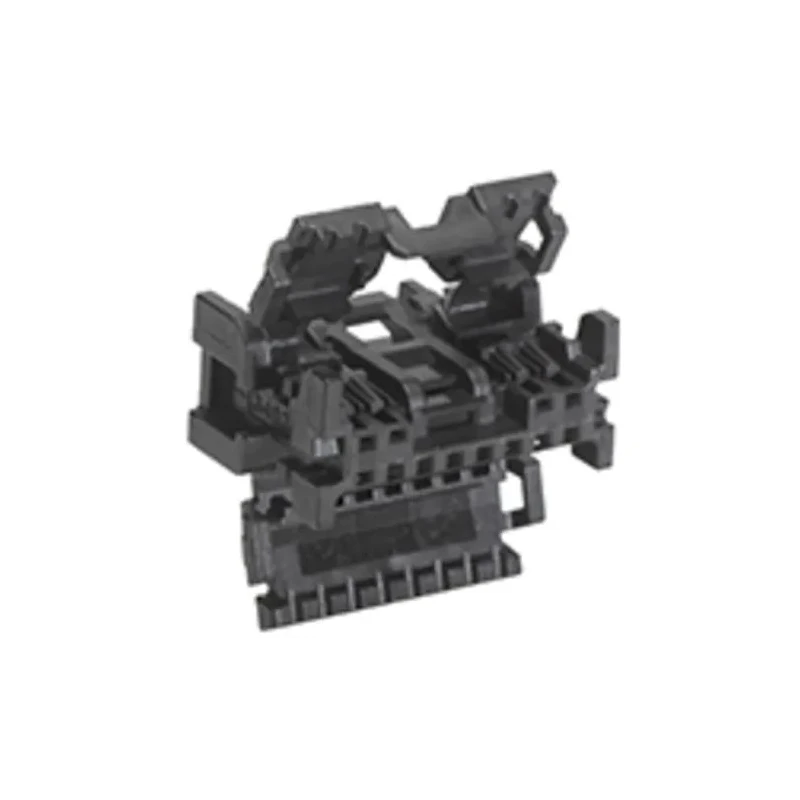

Molex Mini50 Automotive Connector Female Black Cable 12 Way Crimp Termination 34824-1124

Free Delivery in India | Lowest Global Shipping Charges

Molex Mini50 Automotive Connector Female Black Cable 12 Way Crimp Termination 34824-1124

Name: Molex Mini50 Automotive Connector Female Black Cable 12 Way Crimp Termination 34824-1124
Brand: Molex
SKU: 153869
Price: 1 USD
Availability: InStock



Category Automotive Connector Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Colour	Black
Current	3A
Height	9.43mm
Depth	14.25mm
Width	20.1mm
Gender	Female
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	Mini50
Termination Type	Crimp
Maximum Operating Temperature	105°C
Sub Type	Unsealed Receptacle
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	REACH SVHC, EU RoHS
Contact Plating	Silver, Gold, Tin
Number of Contacts	12

Key Features

The connector features a Mini50 series unsealed receptacle design.
It supports a current rating of 3 amperes with a dual-row configuration.
Termination is done via crimp method for reliable electrical contacts.
The housing is made of durable polybutylene terephthalate in black color.
Contact materials include copper alloy with silver, gold, and tin plating for corrosion resistance.
Operating temperature ranges from -40°C to 105°C, ensuring reliability in harsh conditions.
Mounting style is cable mount, with no cord included.
Standards compliant with REACH SVHC and EU RoHS directives.

Product Description

Molex 34824-1124 Mini50 Automotive Connector Female is a high-quality, durable connector designed for automotive electrical applications. This 12 way connector features a dual-row unsealed receptacle configuration, enabling reliable and secure connections in wiring harnesses and cable assemblies.

The connector supports a continuous current rating of 3 amps and employs crimp termination for solid electrical contact. Its housing is constructed from polybutylene terephthalate, providing excellent mechanical strength and resistance to automotive environmental conditions. The contacts are made from copper alloy and are plated with silver, gold, and tin to enhance conductivity and prevent corrosion.

This black connector operates effectively within a temperature range of -40°C to 105°C, making it suitable for demanding automotive environments. The mounting style is cable mount, and note that the cord is not included with the connector. Compact dimensions of 20.1 mm width, 9.43 mm height, and 14.25 mm depth allow installation in tight automotive spaces.

Compliance with REACH SVHC and EU RoHS standards ensures the product meets strict environmental and safety regulations. This automotive connector is ideal for use in automotive assembly, wiring repairs, and manufacturing where dependable connectivity is critical.

The connector features a Mini50 series unsealed receptacle design. It supports a current rating of 3 amperes with a dual-row configuration. Termination is done via crimp method for reliable electrical contacts. The housing is made of durable polybutylene terephthalate in black color.

Contact materials include copper alloy with silver, gold, and tin plating for corrosion resistance. Operating temperature ranges from -40°C to 105°C, ensuring reliability in harsh conditions. Mounting style is cable mount, with no cord included.

Dimensions are compact: width 20.1 mm, height 9.43 mm, depth 14.25 mm. Standards compliant with REACH SVHC and EU RoHS directives.

Suitable for industrial, automotive manufacturing, electrical harness assembly, and repair applications, this connector supports efficient and durable electrical connections. Explore more Automotive Connectors and electronic components at EnvMart.
