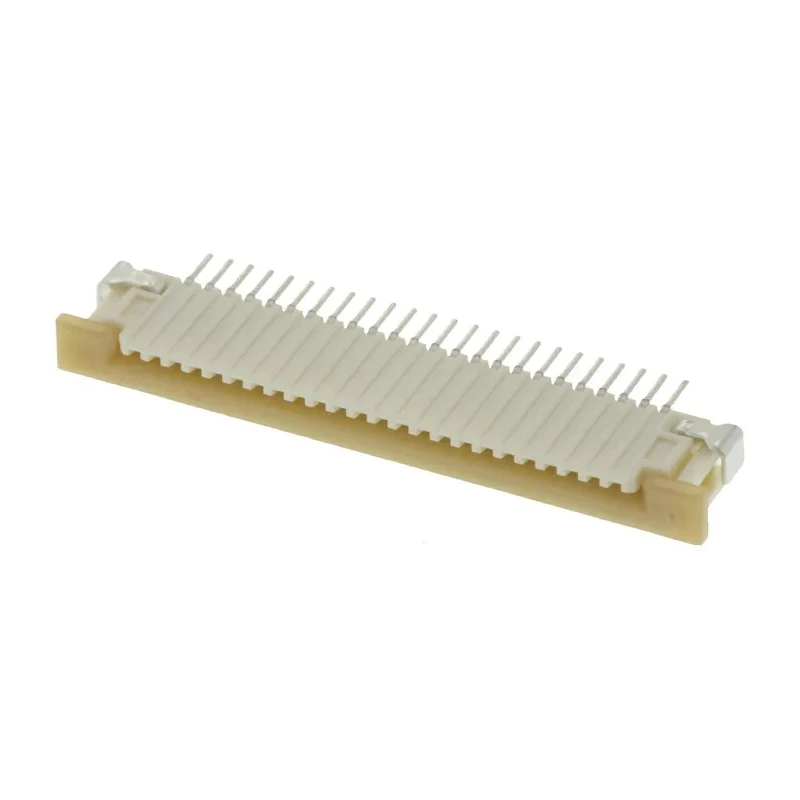

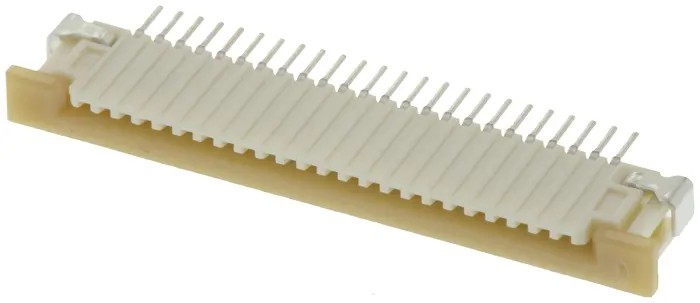

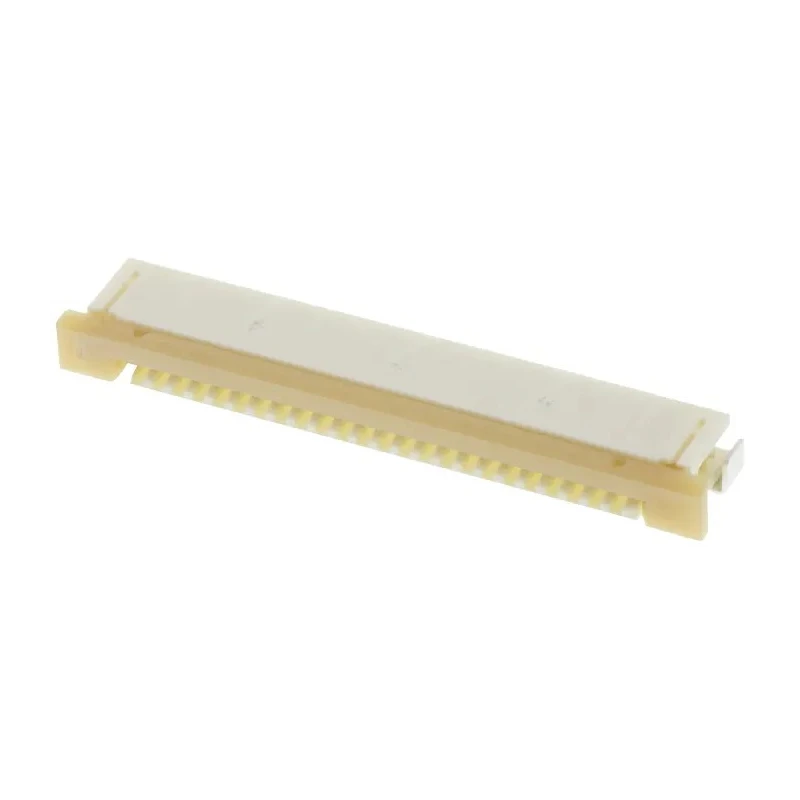

Molex 1 mm Pitch 24 Way Right Angle Female FPC Connector, Solder 52271-2479

Molex 52271-2479 is a high-quality 1 mm pitch 24 way right angle female FPC Connector designed for surface mount technology (SMT) with solder termination. It features a zero insertion force (ZIF) slide type actuator that simplifies the insertion process while ensuring secure electrical contact retention. The connector is constructed with phosphor bronze contacts that are plated with a tin bismuth alloy, providing excellent conductivity and durability. The nylon housing ensures robust mechanical performance and precise alignment of the FPC cable.

This connector has a right angle orientation with bottom contacts and includes solder tabs that provide secure mechanical strain relief and retention on the PCB. It supports current ratings up to 500 mA and voltages up to 50 V AC, making it suitable for demanding electronics environments. Operating temperature ranges from -40°C to 85°C allow for use in harsh conditions.

The Molex 52271 series connectors are an excellent choice for various industrial and commercial applications including automotive navigation and audio systems, digital cameras, home security systems, medical patient monitors, GPS devices, smartphones, tablets, and notebook PCs. Their space-saving design makes them ideal for applications with limited PCB real estate.

Zero insertion force (ZIF) mechanism reduces wear and ensures repeatable use. Slide type actuator provides secure connection and easy FPC insertion. Nylon housing guides the FPC for precise alignment. Movable contacts maintain electrical contact during cable movement.

Solder tabs on right angle version provide strong PCB retention and strain relief.

This product complies with recognized industry standards though it does not carry specific international approvals. It is supplied new and manufactured in accordance with Molex’s high-quality standards. Suitable for a broad range of industrial, automotive, electronic, medical, and communication equipment manufacturing applications.
