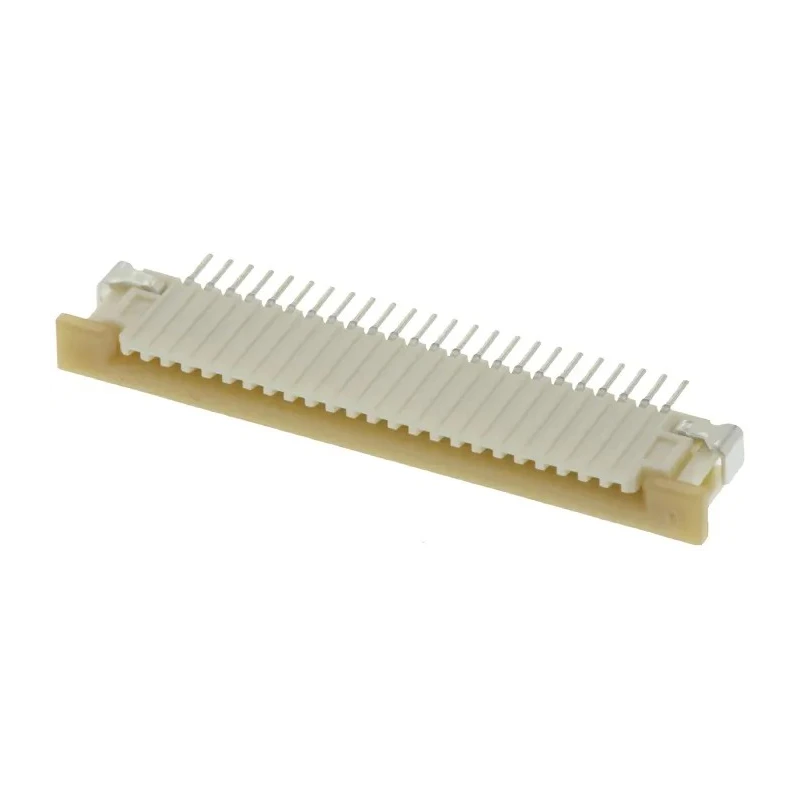

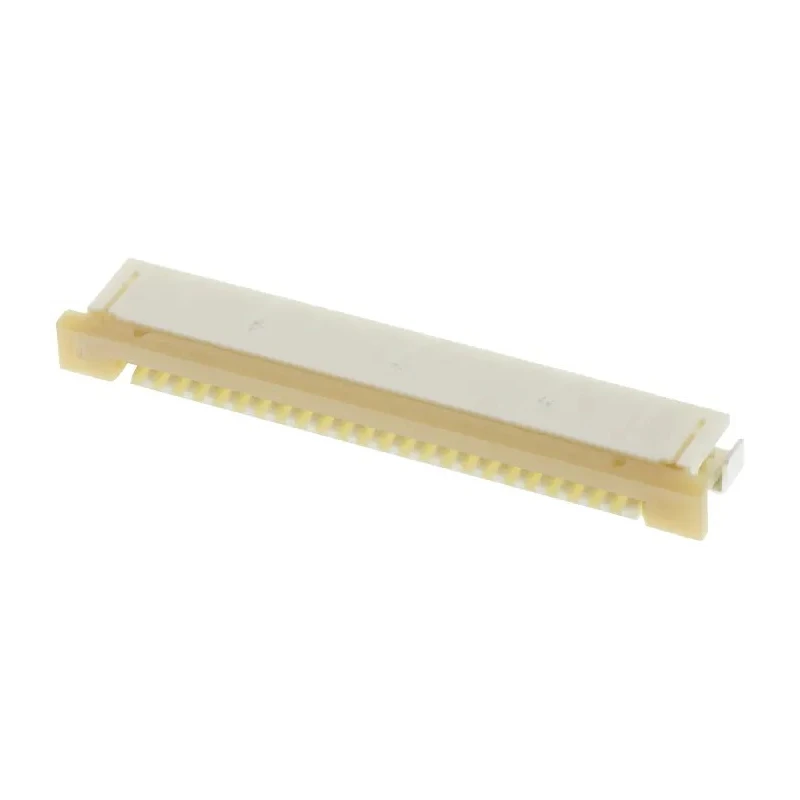

Molex 1 mm Pitch 24 Way Right Angle Female FPC Connector, Solder 52271-2479

Molex 52271-2479 is a 1 mm pitch, 24-way right angle female FPC connector designed for surface mount applications requiring high reliability and compact footprint. This connector incorporates a zero insertion force (ZIF) slide-type actuator that rotates 30° for easy insertion and secure retention of flat flexible cables (FPC), making it well suited for use in constrained spaces typical of modern electronic devices.

The contacts are made from phosphor bronze and plated with a tin bismuth alloy to ensure excellent conductivity and durability. Positioned at the bottom with a right angle orientation, these connectors help optimize PCB layout while maintaining secure mechanical and electrical connections. The nylon housing provides robust insulation and mechanical support. Solder tabs provide additional strain relief and enhance PCB retention.

Operating temperature ranges from -40°C to 85°C, supporting a wide array of industrial and commercial applications. With a current rating of 500 mA and voltage rating of 50 V ac, the connector meets demanding electrical requirements necessary for automotive navigation systems, consumer electronics, medical equipment, digital cameras, and mobile communications devices.

The connector is ideal for sectors requiring reliable, space-efficient solutions including automotive, consumer electronics, telecommunications, and medical devices. The product meets UL (E60389) and CSA (LR20812) certifications, underscoring its quality and safety in critical applications.

The 52271 series features ZIF mechanism and slide-type actuator for secure and repeatable cable insertion. Solder tabs ensure enhanced strain relief and long-term connection integrity. Compact right angle design supports streamlined PCB layouts in tight mechanical spaces.

Suitable for repeat cycling with minimal wear to contacts and actuator. Housing guides align the FPC for precise connection, preventing misalignment and damage.

Molex FPC Connectors are designed to enable high-performance connections in a durable form factor compatible with surface mount technologies. This series is well regarded for ease of use, mechanical resilience, and excellent electrical characteristics, making it a preferred choice across industrial, electronics manufacturing, and telecommunications markets.
