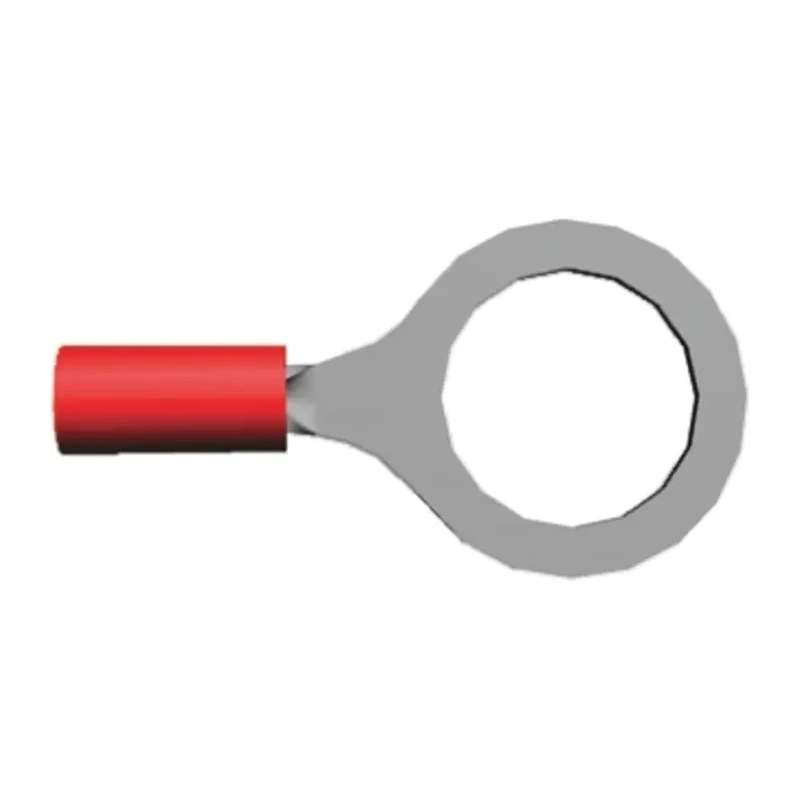

TE Connectivity PIDG Insulated Ring Terminal M12 Stud Size 22 AWG to 16 AWG Wire Size Red 328975
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 328975 |
| Insulation | Insulated |
| Overall Length | 32.84mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 18.11mm |
| Inner Ring Diameter | 13.08mm |
| Stud Size | M12 |
Key Features
- High conductivity copper body for optimal electrical flow.
- Red nylon insulation provides easy wire size identification.
- Serrated wire barrel ensures strong contact and tensile strength after crimping.
- Copper sleeve improves wire insulation support and prevents fraying.
- Funnelled entry enables fast and easy wire insertion.
- Meets RoHS compliance and suitable for harsh electrical environments.
- Operating temperature up to 105°C for durability in demanding applications.
- Precision-formed to guarantee uniform and reliable crimps.
Product Description
TE Connectivity 328975 PIDG Insulated Ring Terminal features a high-conductivity copper body with nylon insulation in red, designed for wire sizes 22 AWG to 16 AWG and M12 stud size. This ring terminal supports reliable electrical connections in demanding circuits.
The terminal incorporates serrations within the wire barrel to maximize contact and tensile strength post-crimp. A copper sleeve surrounding the barrel enhances insulation support and prevents frayed wires. The nylon insulation sleeve is color-coded for easy wire size identification, and the funnelled wire entry allows rapid and consistent wire insertion during manufacturing.
This product complies with RoHS standards and operates efficiently up to 105°C, making it suitable for industrial, automotive, aerospace, and control panel wiring applications. The precision construction ensures uniform crimps, reliability, and long-term performance across a wide range of electrical environments.
The PIDG terminals adhere to stringent specifications, offering electricians and engineers a versatile solution for wire termination tasks. Their design addresses durability, ease of installation, and safety in critical electrical systems.
High conductivity copper body for optimal electrical flow. Red nylon insulation provides easy wire size identification. Serrated wire barrel ensures strong contact and tensile strength after crimping. Copper sleeve improves wire insulation support and prevents fraying.
Funnelled entry enables fast and easy wire insertion. Meets RoHS compliance and suitable for harsh electrical environments. Operating temperature up to 105°C for durability in demanding applications. Precision-formed to guarantee uniform and reliable crimps.
Compatible with various wiring applications including aerospace and transportation.
This TE Connectivity ring terminal is an essential component for electrical and industrial wiring systems, delivering superior performance and dependability. Explore a wide selection of Ring Terminals and electrical connectors at EnvMart for professional-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal accommodates wire sizes from 22 AWG to 16 AWG.
The maximum operating temperature for this ring terminal is 105°C, making it suitable for demanding applications.
The contact material of this terminal is copper, which provides high conductivity for optimal electrical flow.
It features nylon insulation, which is red for easy wire size identification.
This model is compatible with M12 stud sizes.
The outer ring diameter of this terminal is 18.11 mm.
Yes, it meets RoHS compliance, ensuring it adheres to environmental and safety standards.
The serrated wire barrel maximizes contact and tensile strength after crimping, ensuring a reliable connection.
The overall length of this terminal is 32.84 mm.
The minimum wire size for this terminal is 0.26 mm².
The copper sleeve improves wire insulation support and prevents fraying, enhancing the terminal's performance.
This terminal is suitable for various applications including industrial, automotive, aerospace, and control panel wiring.
