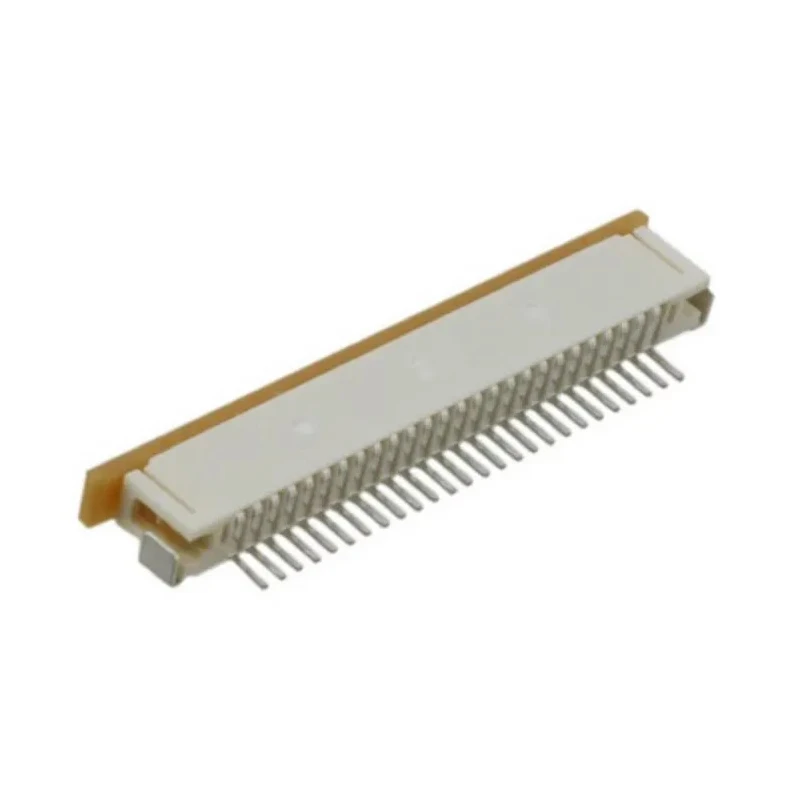

Molex 1 mm Pitch 26 Way Right Angle Female FPC Connector with ZIF Bottom Contact 52271-2679

Molex 52271-2679 is a 1 mm pitch 26 way right angle female FPC connector designed with Zero Insertion Force (ZIF) bottom contacts, ideal for space-constrained electronic applications.

This connector series features a slide type actuator which rotates 30 degrees, facilitating easy insertion and ensuring secure retention of the flexible printed circuit (FPC). The movable contacts compensate for cable movement, maintaining reliable electrical connection under mechanical stress.

The connector includes solder tabs that provide secure retention on the PCB and offer strain relief to solder tail joints, contributing to mechanical robustness in demanding environments.

Constructed from phosphor bronze contacts with tin bismuth alloy plating and a nylon housing, this connector maintains high durability and corrosion resistance. It supports an operating voltage of 50 V AC and a current rating of 500 mA, making it suitable for low-power electronic circuits.

It is rated for a wide temperature range from -40°C to 85°C, with an incorporated locking mechanism to ensure a secure fit. The product contains 26 female contacts arranged in a single row with right angle orientation, making it suitable for compact electronic device assemblies.

Applications include automotive navigation and audio systems, digital cameras, home security devices, tablet and notebook PCs, patient monitors, GPS devices, smartphones, and other mobile devices.

Zero Insertion Force bottom contacts allow for repeat cycling with minimal wear. Slide type actuator ensures easy insertion and secure connection of FPC. Solder tabs provide strain relief and secure PCB retention. Phosphor bronze contacts with tin bismuth alloy plating ensure durability.

Operating temperature from -40°C to 85°C for versatile environmental suitability. Supports 50 V AC voltage and 500 mA current. Right angle orientation optimizes space utilization on PCBs. Locking mechanism enhances connection security.
