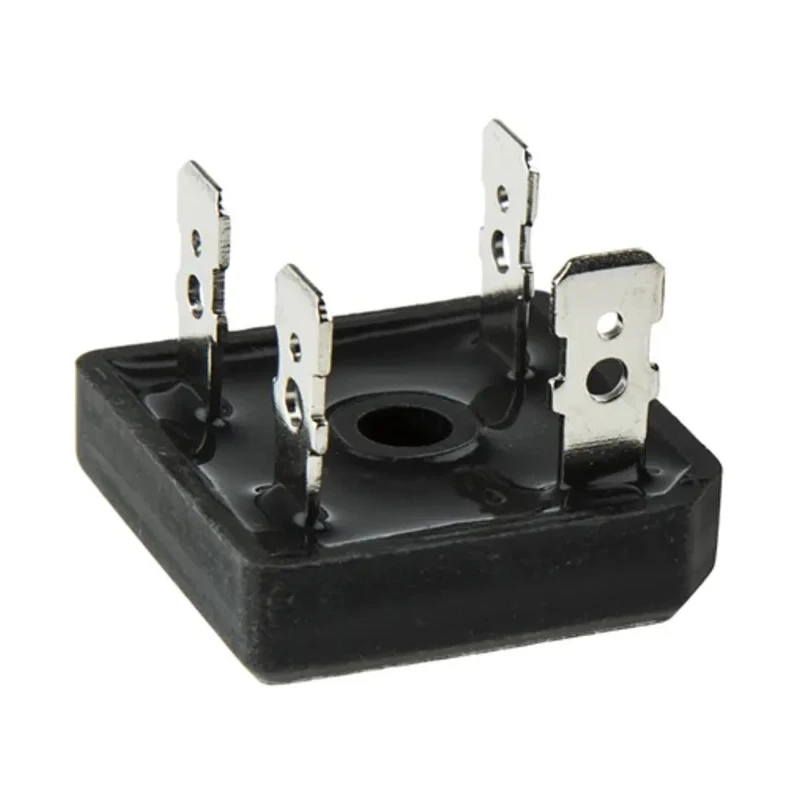

Fagor Electronica Bridge Rectifier 1000 V 300 A 4-Pin Single FB2510-B500/440-25

Fagor Electronica FB2510-B500/440-25 Bridge Rectifier is a discrete semiconductor device designed for converting alternating current (AC) to direct current (DC) efficiently in various electronic circuits and industrial applications.

Operating with a peak reverse repetitive voltage of 1000 V and capable of sustaining a forward current of 25 A, this 4-pin single configuration bridge rectifier offers robust performance and reliability. Its through hole mount type ensures secure placement on printed circuit boards (PCB).

The device can withstand a peak non-repetitive forward surge current of up to 300 A and works efficiently within a broad temperature range from -55°C to 150°C, suitable for demanding industrial environments.

Measuring 29 mm in length, 29 mm in width, and 7.87 mm in height, it is compact yet durable. The low peak forward voltage of 1.1 V contributes to energy efficiency by minimizing conduction losses, and the low peak reverse current of 5 µA ensures minimal leakage, enhancing circuit stability.

This bridge rectifier is manufactured in Thailand and part of the FB series from Fagor Electronica, known for quality and dependable semiconductor components.

Commonly used in power supply units, motor control circuits, and electronic converters, this bridge rectifier is ideal for applications requiring reliable AC to DC conversion with high surge capacity and thermal tolerance.

Operates with a peak reverse repetitive voltage of 1000 V. Supports a forward current of 25 A ensuring reliable performance. Designed with a through hole mount type for secure installation. Can handle a peak non-repetitive forward surge current of 300 A.

Operates effectively in temperatures ranging from -55°C to 150°C. Features a compact size with dimensions 29 mm length, 29 mm width, and 7.87 mm height. Includes 4 pins configured as a single phase for straightforward integration.

Peak forward voltage is low at 1.1 V, increasing efficiency. Low peak reverse current of 5 µA minimizing leakage. Product is made in Thailand and complies with standard quality measures. Explore more reliable and quality Bridge Rectifiers available in the semiconductor category at EnvMart for your industrial and electronic needs.
