TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 3.3 μH ±20% 4.9 A Idc B82464A4332M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 3.3 μH ±20% 4.9 A Idc B82464A4332M000



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	10.4mm
Brand	TDK
Height	4.8mm
Length	10.4mm
Model	B82464A4332M000
Depth	10.4mm
Packaging	Tape & Reel
Series	B82462-A4
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	3.3μH
Standards/Approvals	RoHS
Maximum DC Current	4.9A
Maximum DC Resistance	15mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Wirewound construction enhances inductor reliability and performance.

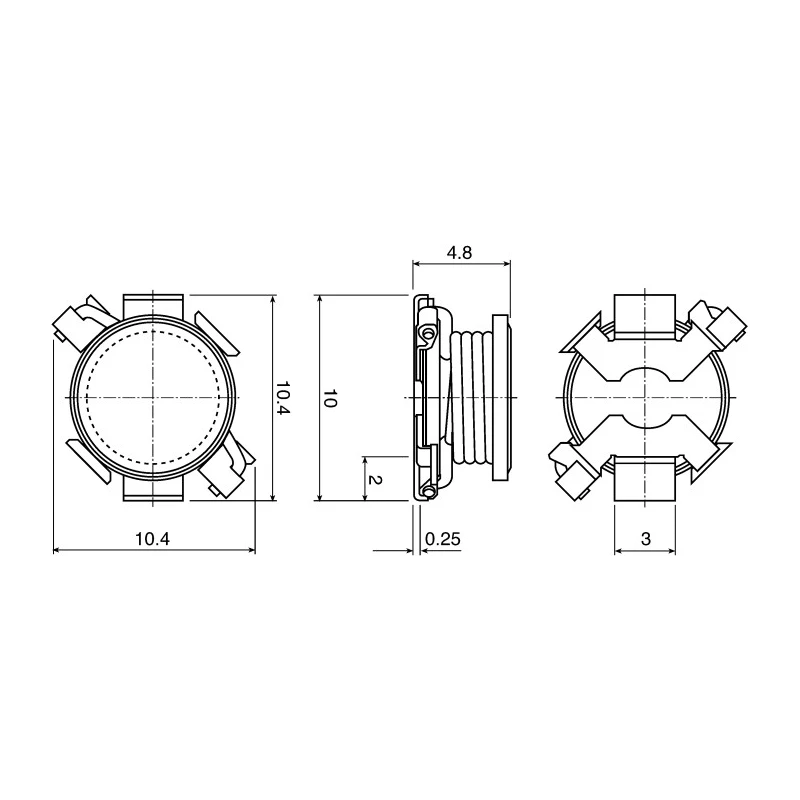

Compact SMT size of 10.4 x 10.4 x 4.8 mm suitable for high-density PCB mounting.
Ferrite core material provides excellent magnetic characteristics.
Rated for a wide operating temperature range from -55°C to 150°C.
Low maximum DC resistance of 15 mΩ ensures minimal power loss.
Tape and reel packaging optimizes automated assembly processes.
Complies with RoHS and automotive standard AEC-Q200.
Shielded design reduces electromagnetic interference in sensitive applications.

Product Description

The TDK B82464A4332M000 is a shielded wirewound surface mount inductor designed for use in demanding industrial, automotive, and electronic power supply filtering applications. It utilizes a ferrite core construction providing stable inductance of 3.3 μH with a tolerance of ±20% and supports a high maximum DC current rating of 4.9 A. Featuring a compact footprint with dimensions of 10.4 mm diameter, 10.4 mm length, and 4.8 mm height, this inductor is optimized for space-saving SMT mounting on PCBs.

The wirewound construction and shielded design ensure excellent performance with low DC resistance of just 15 mΩ, minimizing power loss and heat generation. The component is capable of operating reliably across a wide temperature range from -55°C to 150°C, meeting the rigorous AEC-Q200 automotive standard and RoHS compliance for environmental safety. It is supplied in tape and reel packaging ideal for automated production lines.

Typical applications include filtering and noise suppression in power supplies, automotive electronics, telecommunications, and various industrial electronic equipment. The ferrite core and moulded design contribute to its robust electrical characteristics and long-term stability.

Wirewound construction enhances inductor reliability and performance. Compact SMT size of 10.4 x 10.4 x 4.8 mm suitable for high-density PCB mounting. Ferrite core material provides excellent magnetic characteristics. Rated for a wide operating temperature range from -55°C to 150°C.

Low maximum DC resistance of 15 mΩ ensures minimal power loss. Tape and reel packaging optimizes automated assembly processes. Complies with RoHS and automotive standard AEC-Q200. Shielded design reduces electromagnetic interference in sensitive applications.

This high-performance inductor serves industrial, automotive, electronic manufacturing, and power management sectors. Explore the extensive range of Surface Mount Inductors and other electronic components at EnvMart for reliable solutions.
