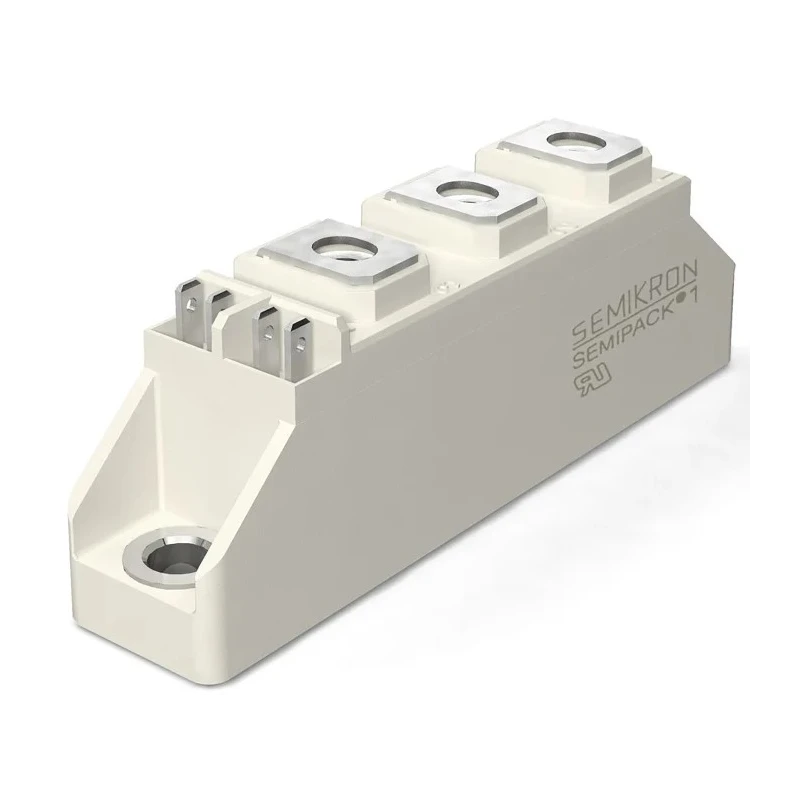

Semikron Danfoss Diode/Thyristor Module SCR 1200 V, 106 A 150 mA 2.25 kA 1.65 V SKKH 106/12 E

Semikron Danfoss SKKH 106/12 E is a high-quality diode and thyristor module designed for a range of power electronic applications. Featuring a SCR type thyristor in a SEMIPACK1 package, it supports a repetitive peak reverse voltage of 1200 V and an average on-state current of 106 A. This module supports surge current ratings up to 2.25 kA, ensuring durability in high power situations.

The module includes a gate trigger current rating of 150 mA and a maximum gate trigger voltage of 3 V for precise switching control. Its panel mount configuration allows for straightforward installation in electrical and industrial assemblies.

Operating efficiently within a temperature range of -40°C to 130°C, the SKKH 106/12 E module is well suited for demanding environments. It has five pins to guarantee secure electrical connectivity and a peak on-state voltage of 1.65 V to minimize conduction losses, contributing to energy efficiency.

Produced under stringent standards in Germany, this module is suitable for industrial, laboratory, manufacturing, and commercial electrical power control applications such as battery chargers, welders, regulated power supplies, and speed control circuits.

Designed for high surge current rating of 2.25 kA ensuring robust performance. Precise gate triggering with maximum of 150 mA current and 3 V voltage. Robust operating temperature range from -40°C to 130°C for versatile deployment.

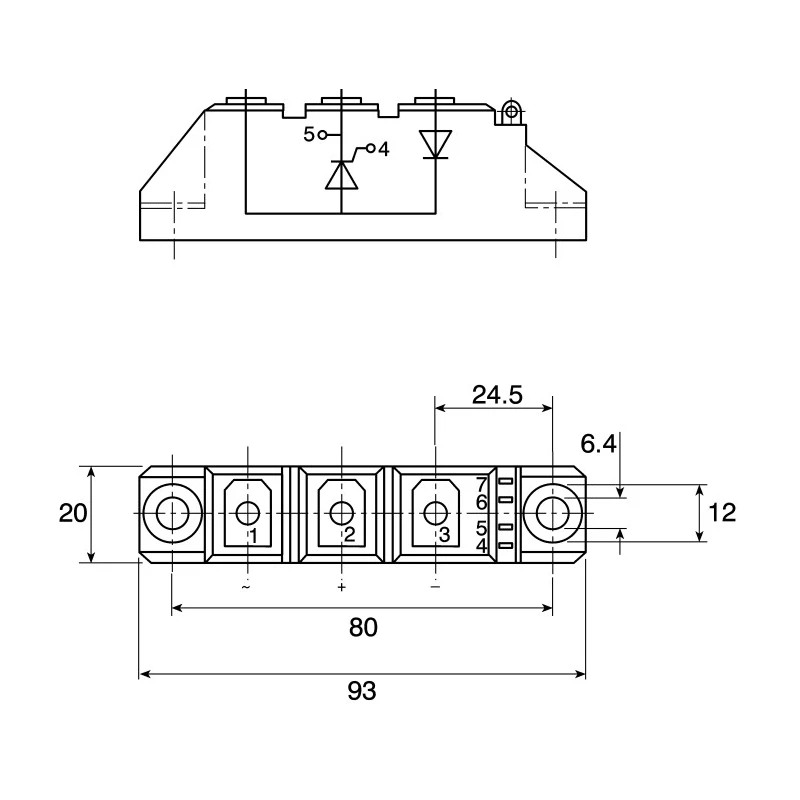

Panel mount, SEMIPACK1 packaging for reliable mechanical and electrical integration. Five-pin configuration ensures safe and stable electrical connections. Low conduction losses with peak on-state voltage of 1.65 V. Explore our comprehensive catalog of Semiconductor Thyristor Modules and related power components for your industrial and electronic needs at EnvMart.
