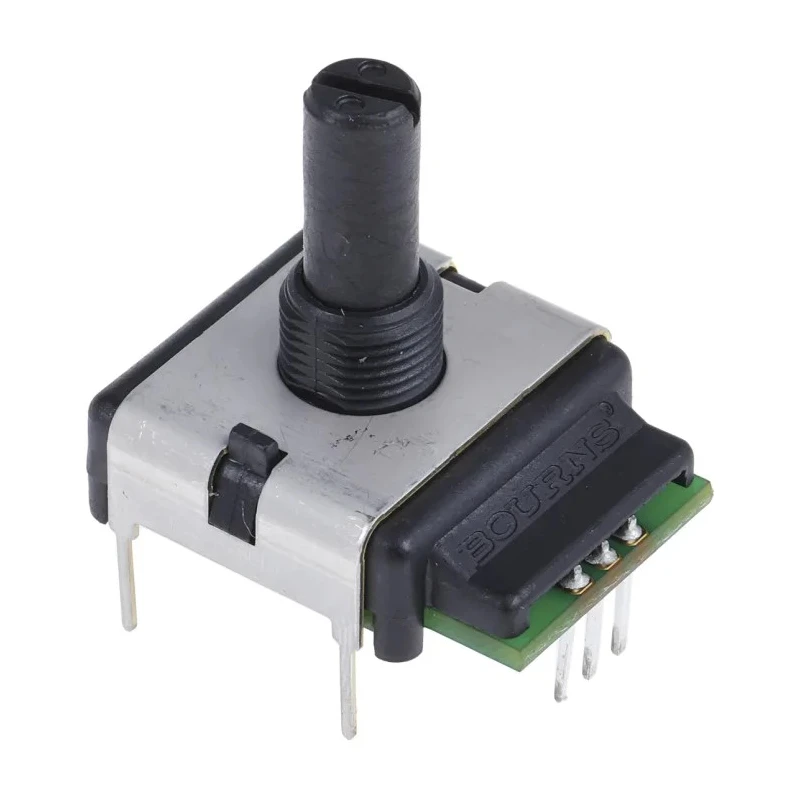

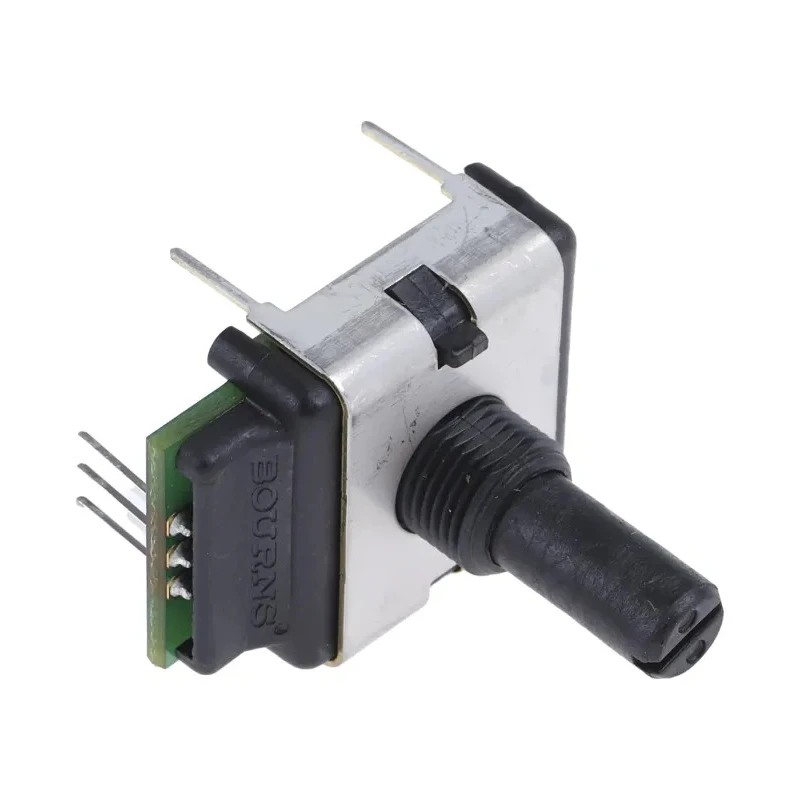

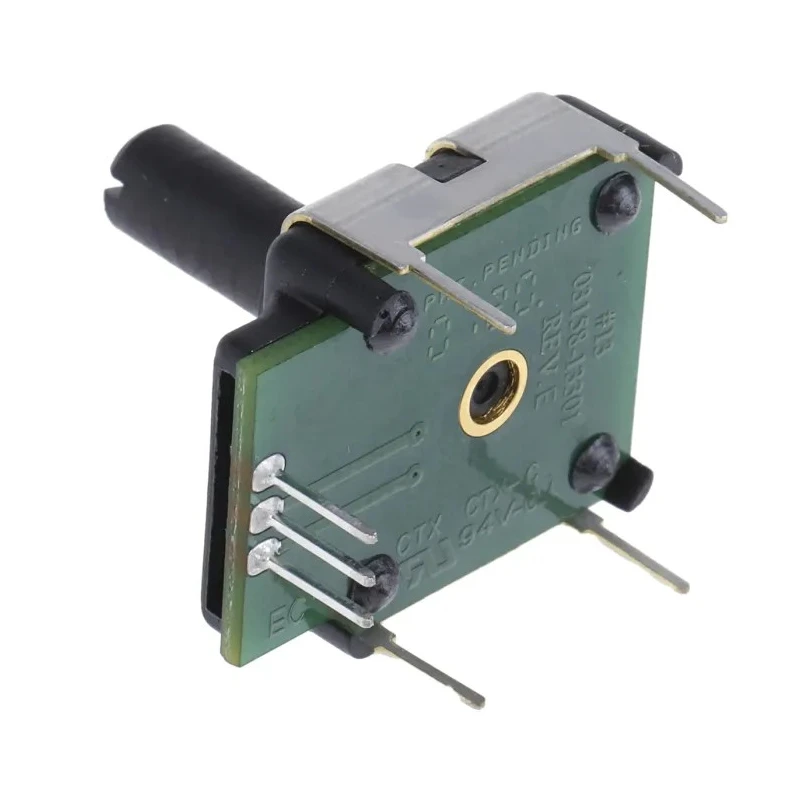

Bourns ECW Series Incremental Encoder 10V, 24ppr, Quadrature Signal, Solid Shaft 6.35mm ECW1J-B24-BC0024L

Free Delivery in India | Lowest Global Shipping Charges

Bourns ECW Series Incremental Encoder 10V, 24ppr, Quadrature Signal, Solid Shaft 6.35mm ECW1J-B24-BC0024L

Name: Bourns ECW Series Incremental Encoder 10V, 24ppr, Quadrature Signal, Solid Shaft 6.35mm ECW1J-B24-BC0024L
Brand: BOURNS
SKU: 213043
Price: 6.93 USD
Availability: InStock



Category Incremental Encoder Brand BOURNS Condition New

Specifications

Country of Origin	Mexico
Brand	Bourns
Model	ECW1J-B24-BC0024L
IP Rating	IP40
Mount Type	Panel Mount
Series	ECW
Overall Width	28.49mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shaft Diameter	6.35mm
Overall height	27.51mm
Shaft Type	Solid
Terminal type	Solder
Pulses per Revolution	24ppr
Standards/Approvals	RoHS
Maximum Supply Voltage	10V
Overall Depth	23.37mm
Encoder Technology	Incremental
Maximum Revolutions	120rpm
Output Signal Type	Quadrature

Key Features

Incremental encoder technology providing quadrature output signals for accurate rotational measurements.
Solid shaft type with 6.35 mm diameter ensuring reliable mechanical coupling.
Panel mount design with an IP40 rating for protection against solid particles.
Operates reliably in temperatures ranging from -40°C to 85°C suitable for diverse environments.
Maximum rotational speed of 120 rpm supports various industrial applications.
Solder terminal type facilitates secure electrical connections.
Compact dimensions of approximately 28.49 mm width, 27.51 mm height, and 23.37 mm depth enable integration into tight spaces.
Manufactured in Mexico ensuring adherence to RoHS standards for environmental compliance.

Product Description

Bourns ECW1J-B24-BC0024L is a high-quality incremental encoder designed to deliver precise position feedback with its 24 pulses per revolution (ppr) at a supply voltage of 10V. This encoder features a solid shaft style with a 6.35 mm diameter, optimized for panel mount installation, making it ideal for industrial machinery and automation systems requiring accurate rotary motion sensing.

The device outputs quadrature signals that enable detailed decoding of speed, position, and direction by control systems. It supports a maximum rotational speed of 120 rpm, suitable for various applications such as motors, conveyor systems, and robotics. The encoder's housing is rated IP40, protecting it against solid objects larger than 1 mm while operating within a temperature range from -40°C up to 85°C, ensuring durability in challenging environmental conditions.

With compact overall dimensions of 28.49 mm (width) by 27.51 mm (height) and 23.37 mm (depth), it can be easily integrated into compact electronic assemblies. The solder terminal type provides reliable electrical connection options. Produced in Mexico and compliant with RoHS directives, this encoder meets modern industrial environmental standards.

Incremental technology with quadrature output for precise motion control. Solid shaft, 6.35 mm diameter for dependable mechanical interface. Panel mount configuration with IP40 rated protection. Wide operating temperature range from -40°C to +85°C.

Maximum rotational speed of 120rpm for versatile applications. Solder type terminals for stable electrical connections. Compact size enables easy integration into machinery control units. RoHS compliant manufacturing for environmental responsibility.

This Bourns ECW Series Incremental Encoder is widely used in automation, manufacturing, robotics, and industrial control systems to ensure accurate shaft position feedback and system reliability. Explore related high-quality Bourns sensors and encoders available on EnvMart for all your control and sensing needs.
