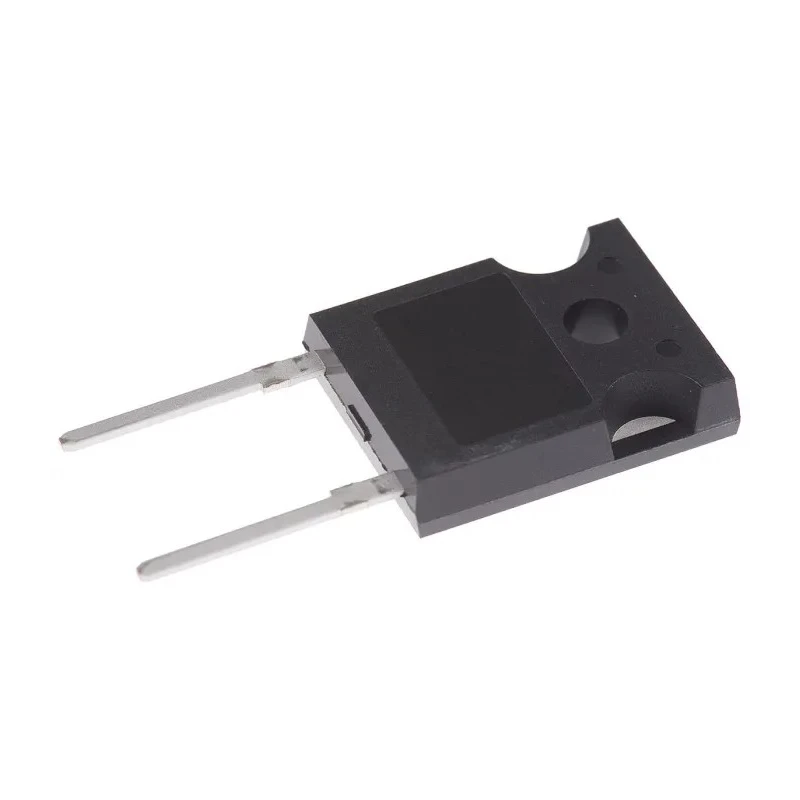

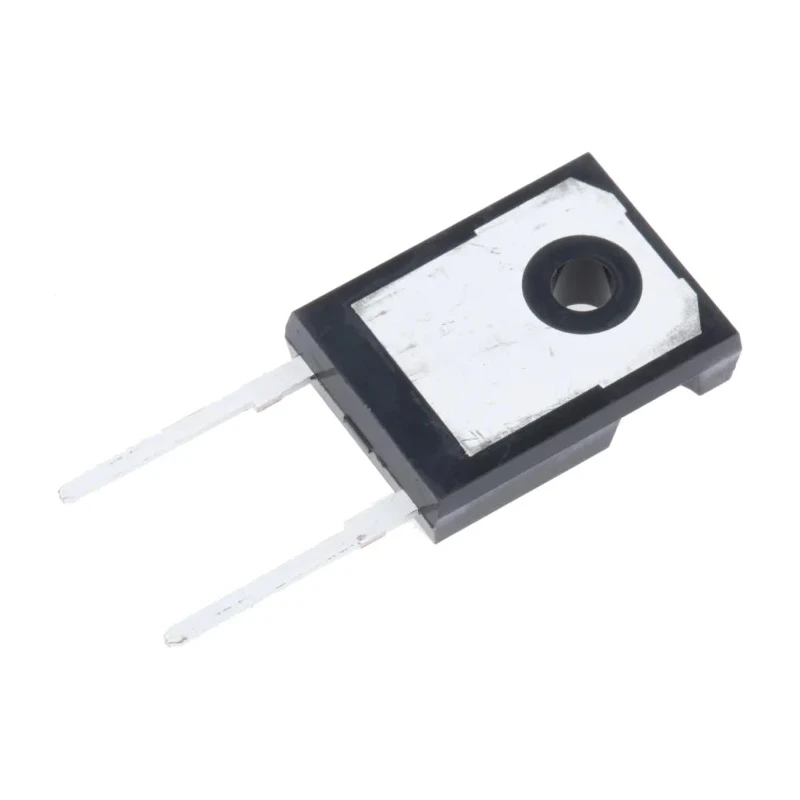

Vishay 600 V 40 A Fast Recovery Switching Diode Through Hole TO-247 VS-40EPF06PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-40EPF06PBF |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VS-40EPF0.-M3 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 475A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 180ns |
Key Features
- Designed as a single diode for switching applications.
- Features a low maximum forward voltage of 1.25 V to reduce power loss.
- Operating temperature range from -40°C to 150°C for robust performance.
- Peak non-repetitive forward surge current rating of 475 A ensures surge tolerance.
- Fast reverse recovery time of 180 ns for high-speed switching efficiency.
- Compact TO-247 package with dimensions 20.7 mm height, 15.87 mm length, and 5.31 mm width.
- RoHS compliant, ensuring environmental safety standards.
- Peak reverse current limited to 100 μA for enhanced diode reliability.
Product Description
Vishay VS-40EPF06PBF is a fast recovery switching diode designed for high-performance power electronics requiring efficient switching and low forward voltage drop. Operating in temperature ranges from -40°C to 150°C, this diode delivers a maximum continuous forward current of 40 A and can withstand peak reverse repetitive voltages up to 600 V.
This diode comes in a TO-247 through-hole package, measuring 20.7 mm in height, 15.87 mm in length, and 5.31 mm in width, suited for industrial and commercial electronic applications. Its fast recovery time of 180 ns and peak surge current capability of 475 A make it ideal for power supply circuits, inverters, and other switching power devices.
Being RoHS compliant, the VS-40EPF06PBF aligns with environmental regulations for electronic components. The diode’s low peak reverse current of 100 μA contributes to its efficiency and reliability in semiconductor circuits.
The single diode configuration enhances design flexibility in applications that demand robust switching performance, including renewable energy systems, motor drives, and industrial automation equipment.
Designed as a single diode for switching applications. Features a low maximum forward voltage of 1.25 V to reduce power loss. Operating temperature range from -40°C to 150°C for robust performance. Peak non-repetitive forward surge current rating of 475 A ensures surge tolerance.
Fast reverse recovery time of 180 ns for high-speed switching efficiency. Compact TO-247 package with dimensions 20.7 mm height, 15.87 mm length, and 5.31 mm width. RoHS compliant, ensuring environmental safety standards.
Peak reverse current limited to 100 μA for enhanced diode reliability.
This diode is suitable for industrial, commercial, laboratory, and manufacturing environments where reliable power switching is critical. Its through-hole mount type and standard TO-247 package make it compatible with various PCB designs and equipment.
Explore more electronic semiconductor components and Schottky Diodes at EnvMart for advanced power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 40 A.
The operating temperature range is from -40°C to 150°C.
This diode comes in a TO-247 package with dimensions of 20.7 mm in height, 15.87 mm in length, and 5.31 mm in width.
The peak non-repetitive forward surge current rating is 475 A.
The maximum forward voltage drop is 1.25 V, which helps reduce power loss.
Yes, the VS-40EPF06PBF is RoHS compliant, ensuring it meets environmental safety standards.
This model uses a through-hole mount type, making it compatible with various PCB designs.
This diode has a pin count of 2.
