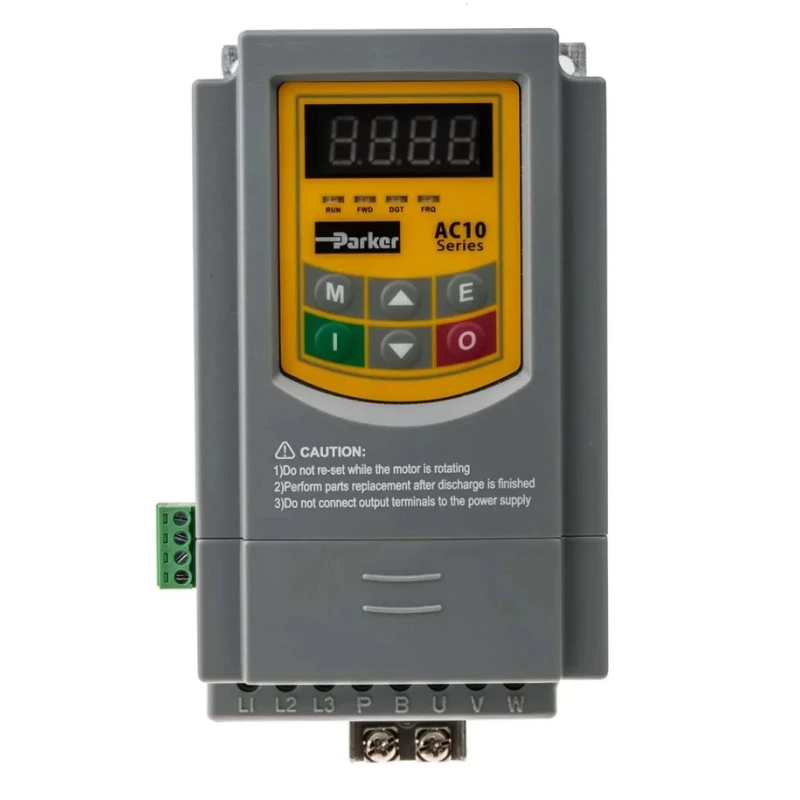

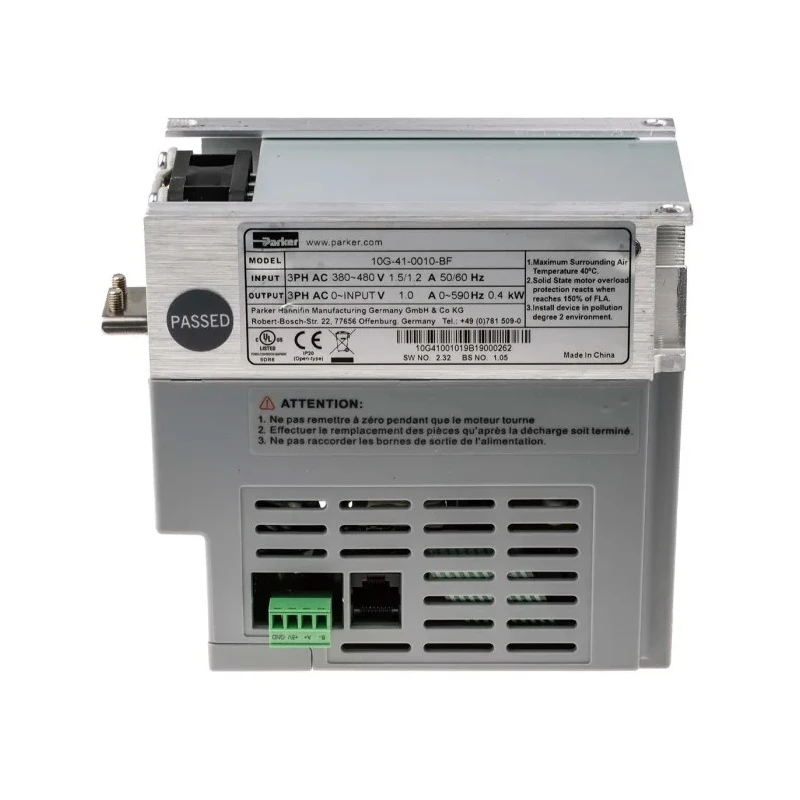

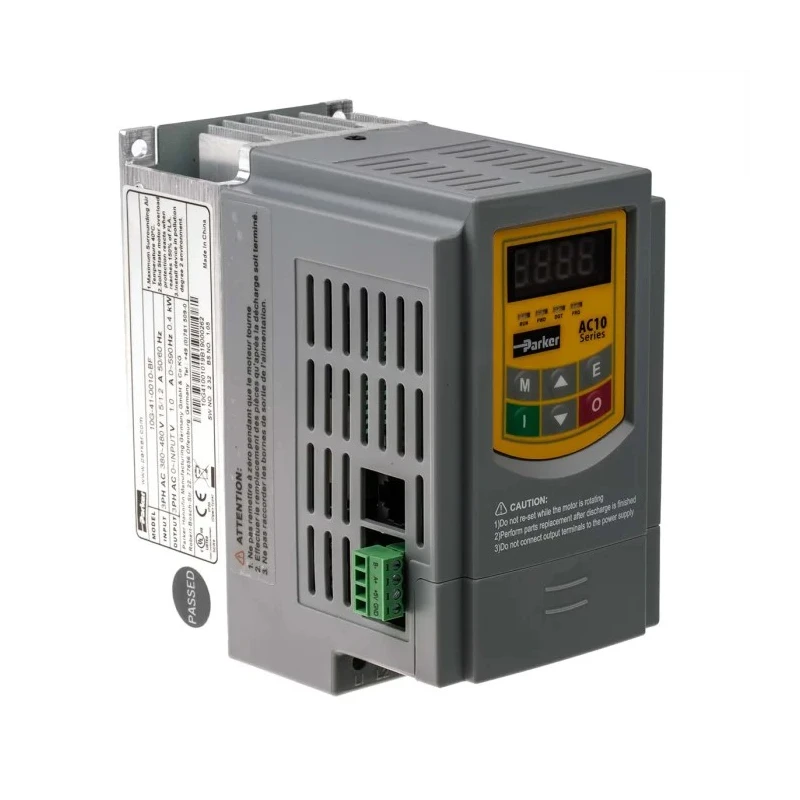

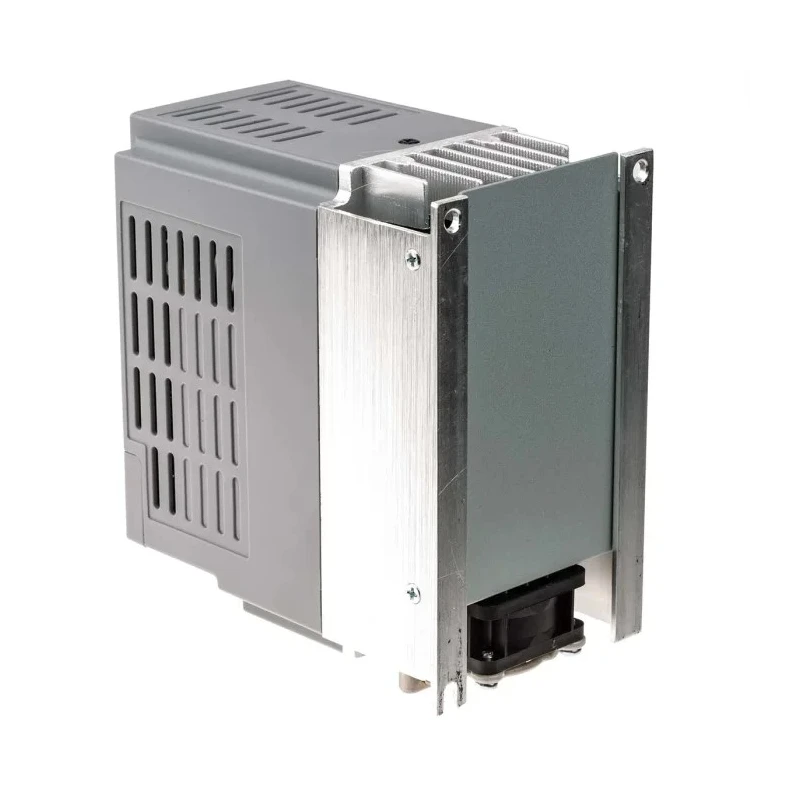

Parker 370 W 3 Phase AC10 Series Inverter Drive 480V 1A AC10
Specifications
| Country of Origin | China |
|---|---|
| Brand | Parker |
| Model | AC10 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Overall Length | 80mm |
| Series | AC10 |
| Overall Width | 135mm |
| Power Rating | 370W |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 590Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 1A |
| Standards/Approvals | CE, UL, ULC |
| Maximum Supply Voltage | 480V |
| Overall Depth | 138mm |
| Minimum Supply Voltage | 380V |
| Compatible Motor Type | Induction Motor |
Key Features
- Compact design simplifies installation with minimal wiring requirements.
- Equipped with auto-tuning sensorless vector mode for precise speed and torque control.
- Integral EMC filter and conformally coated PCBs enhance durability and performance.
- Suitable for conveyor systems, fans, mixers, packaging, textiles, and barrier applications.
- Wide operating temperature range from -10°C to 50°C ensures robust operation.
- CE, UL, and ULC approved meeting international standards.
- Compatible with 3-phase induction motors for variable speed control.
Product Description
Parker AC10 3 Phase Inverter Drive, model AC10 with MPN 10G-41-0010-BF, delivers a power rating of 370 W at 480V supply voltage and maximum output current of 1A. This variable speed inverter drive is engineered for reliable and economical torque and speed control of 3-phase induction motors across industrial, commercial, and manufacturing sectors.
The compact and robust design features integral EMC filtering and conformally coated printed circuit boards to ensure consistent performance and durability even in demanding environments. It supports an output frequency up to 590 Hz and operates effectively in temperature ranges from -10°C to 50°C, making it suitable for varied industrial conditions.
Installation is straightforward with minimal wiring and accessible terminal rails, coupled with user-friendly auto-tuning sensorless vector control for enhanced dynamic speed and torque accuracy. The AC10 series includes built-in application macros for speed control presets, PID control, and manual/auto operation, catering to diverse automation needs.
Typical industrial applications include conveyor drives, fans, mixers, packaging machines, textile machinery, and barrier systems, providing a versatile solution for process control and automation.
Dimensions measure 80 mm in length, 135 mm in width, and 138 mm in depth, with an IP20 rating ensuring protection against solid objects larger than 12mm. The unit is CE, UL, and ULC certified, highlighting compliance with key safety standards.
Compact design simplifies installation with minimal wiring requirements. Equipped with auto-tuning sensorless vector mode for precise speed and torque control. Integral EMC filter and conformally coated PCBs enhance durability and performance.
Suitable for conveyor systems, fans, mixers, packaging, textiles, and barrier applications. Wide operating temperature range from -10°C to 50°C ensures robust operation. CE, UL, and ULC approved meeting international standards.
Compatible with 3-phase induction motors for variable speed control. Overall compact dimensions: 80mm length, 135mm width, and 138mm depth. Explore Parker Inverter Drives and automation solutions in the EnvMart industrial catalog for efficient motor speed control and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Parker AC10 inverter drive has a power rating of 370 W.
This model has a maximum output current of 1A.
The operating temperature range for the AC10 inverter drive is from -10°C to 50°C.
It is compatible with 3-phase induction motors for variable speed control.
The inverter drive supports an output frequency of up to 590 Hz.
The dimensions of this unit are 80 mm in length, 135 mm in width, and 138 mm in depth.
The unit is CE, UL, and ULC certified, indicating compliance with key safety standards.
The Parker AC10 has an IP20 rating, which provides protection against solid objects larger than 12 mm.
It includes an integral EMC filter and conformally coated PCBs to enhance durability and performance.
Installation is straightforward with minimal wiring requirements and accessible terminal rails.
Typical applications include conveyor systems, fans, mixers, packaging machines, textile machinery, and barrier systems.
It is equipped with auto-tuning sensorless vector control for precise speed and torque management.
