Semikron Danfoss Dual Thyristor Module 1200 V 25 A 150 mA 550 A 1.8 V SKKT 27B12 E

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Dual Thyristor Module 1200 V 25 A 150 mA 550 A 1.8 V SKKT 27B12 E

Name: Semikron Danfoss Dual Thyristor Module 1200 V 25 A 150 mA 550 A 1.8 V SKKT 27B12 E
Brand: Semikron Danfoss
SKU: 216054
Price: 71.66 USD
Availability: InStock



Category Thyristor Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Germany
Brand	Semikron Danfoss
Model	SKKT 27B12 E
Mount Type	Panel
Maximum Operating Temperature	125°C
Package Type	SEMIPACK1
Minimum Operating Temperature	-40°C
Pin Count	7
Rated Average On-State Current Irms	25A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1200V
Surge Current Rating	550A
Maximum Gate Trigger Current Igt	150mA
Maximum Holding Current Ih	200mA
Maximum Gate Trigger Voltage Vgt	3V
Peak On-State Voltage	1.8V
Repetitive Peak Off-State Current	10mA

Key Features

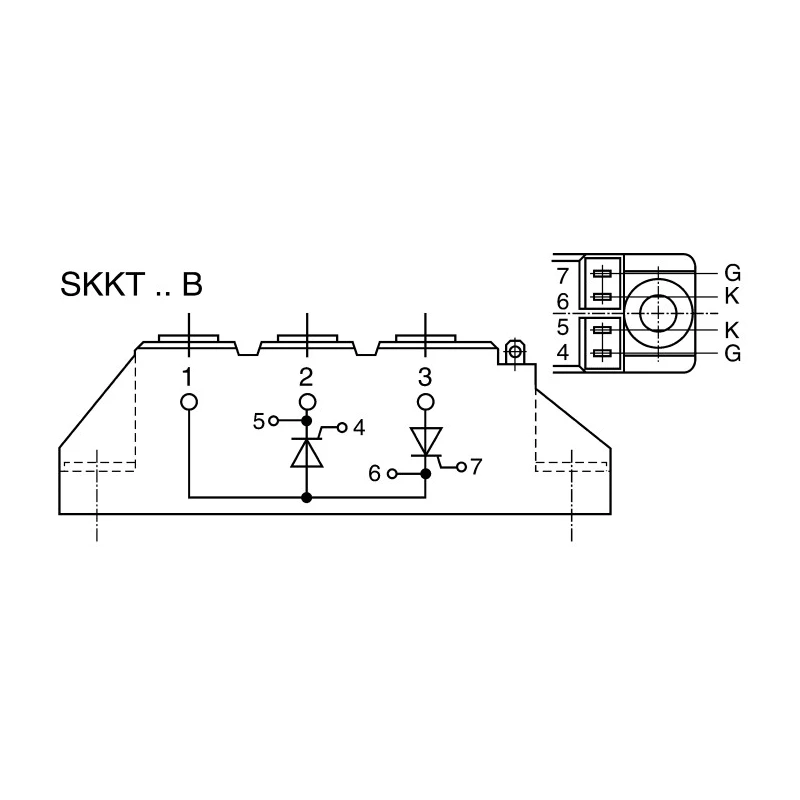

Dual thyristor design ensures reliable switching and control.
SEMIPACK 1 package type for easy panel mounting.
Surge current rating of 550 A supports high transient loads.
Operating temperature range from -40°C to 125°C suits harsh environments.
Pin count of 7 facilitates compact electrical connections.
Low peak on-state voltage of 1.8 V minimizes power loss.
Maximum gate trigger voltage at 3 V ensures sensitive control.
Maximum holding current of 200 mA prevents unintentional turn-off.

Product Description

Semikron Danfoss SKKT 27B12 E Dual Thyristor Module is a robust semiconductor device designed for precise switching control in power electronics. Rated for 1200 V repetitive peak reverse voltage and 25 A average on-state current, this Thyristor Module incorporates SCR technology in a dual configuration.

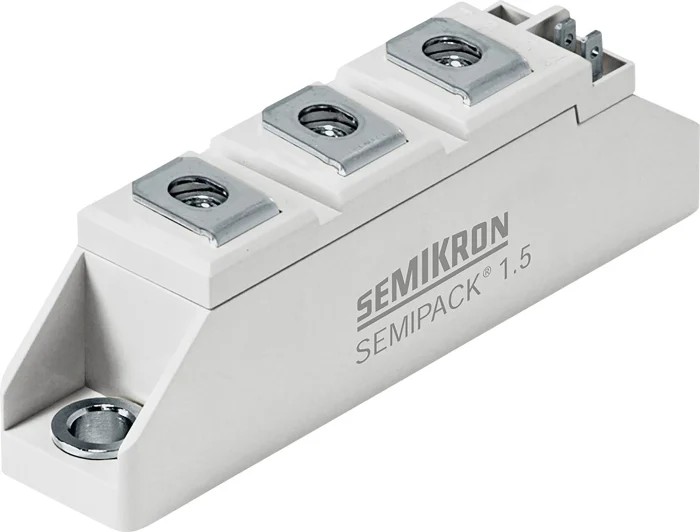

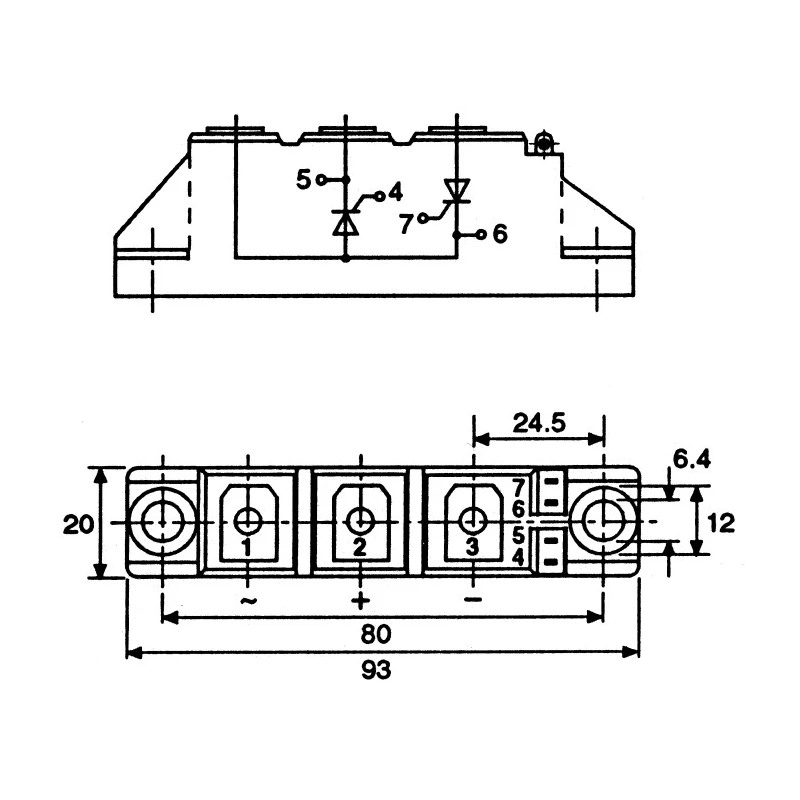

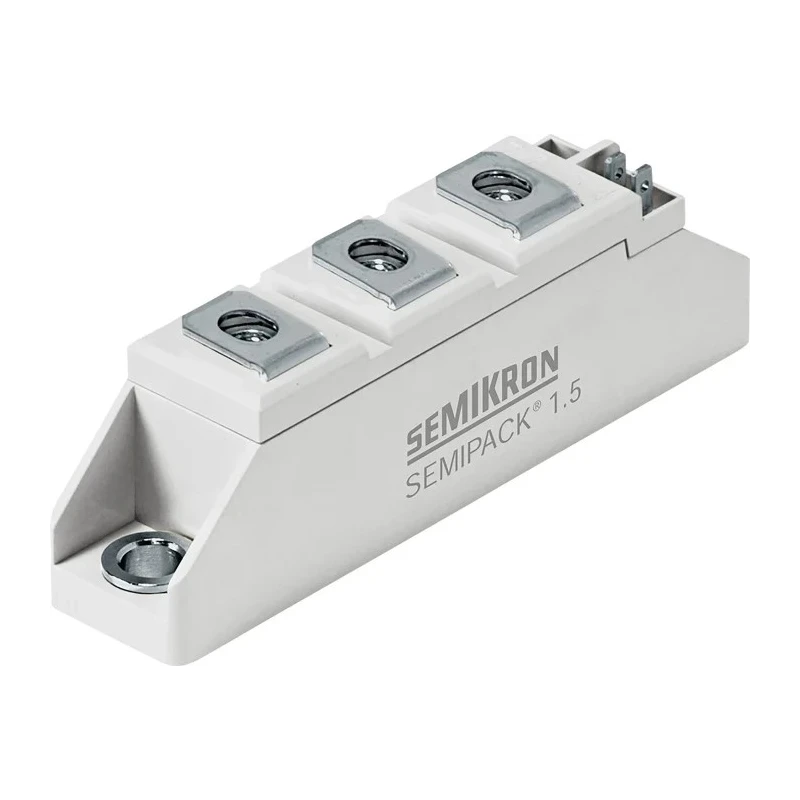

Housed in the SEMIPACK 1 package with 7 pins, the module is built for panel mounting and industrial applications requiring high surge current handling up to 550 A. The device operates efficiently within a temperature range of -40°C to 125°C, making it suitable for demanding conditions.

Key electrical characteristics include a maximum gate trigger current of 150 mA and a low peak on-state voltage of 1.8 V, contributing to energy-efficient operation. The maximum holding current of 200 mA ensures stable conduction without unintended turn-off.

This module is electrically isolated with an encapsulated base plate, commonly used in battery chargers, welding machines, plating equipment, regulated power supplies, and temperature or speed control circuits.

Manufactured in Germany, the SKKT 27B12 E is UL recognized, underscoring its quality and compliance for industrial use. Its solid-state design offers durable and reliable switching performance in semiconductor power control applications.

Dual thyristor design ensures reliable switching and control. SEMIPACK 1 package type for easy panel mounting. Surge current rating of 550 A supports high transient loads. Operating temperature range from -40°C to 125°C suits harsh environments.

Pin count of 7 facilitates compact electrical connections. Low peak on-state voltage of 1.8 V minimizes power loss. Maximum gate trigger voltage of 3 V ensures sensitive triggering. Maximum holding current of 200 mA prevents unintentional turn-off.

Suitable for battery chargers, welders, plating equipment, and controlled power supplies. Explore our range of semiconductor modules and components for advanced electronic and industrial applications at EnvMart.
