Semikron Danfoss Diode/Thyristor Module SCR 1600 V, 95 A, 150 mA, 2 kA, 1.65 V SKKH 92/16 E

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Diode/Thyristor Module SCR 1600 V, 95 A, 150 mA, 2 kA, 1.65 V SKKH 92/16 E

Name: Semikron Danfoss Diode/Thyristor Module SCR 1600 V, 95 A, 150 mA, 2 kA, 1.65 V SKKH 92/16 E
Brand: Semikron Danfoss
SKU: 180052
Price: 55.61 USD
Availability: InStock



Category Thyristor Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Germany
Brand	Semikron Danfoss
Model	SKKH 92/16 E
Mount Type	Panel
Maximum Operating Temperature	125°C
Package Type	SEMIPACK1
Minimum Operating Temperature	-40°C
Pin Count	5
Rated Average On-State Current Irms	95A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1600V
Surge Current Rating	2kA
Maximum Gate Trigger Current Igt	150mA
Maximum Holding Current Ih	250mA
Maximum Gate Trigger Voltage Vgt	3V
Peak On-State Voltage	1.65V
Repetitive Peak Off-State Current	20mA

Key Features

Supports a repetitive peak reverse voltage of 1600 V.
Rated average on-state current is 95 A for reliable power handling.
Peak surge current capacity of 2 kA enhances overload tolerance.
Features a maximum gate trigger current of 150 mA and pin count of 5.
Operating temperature range from -40°C to 125°C for broad environmental use.
Maximum holding current of 250 mA ensures stable conduction.
Low peak on-state voltage of 1.65 V reduces conduction losses.
Encapsulated module with an electrically isolated base plate for safety.

Product Description

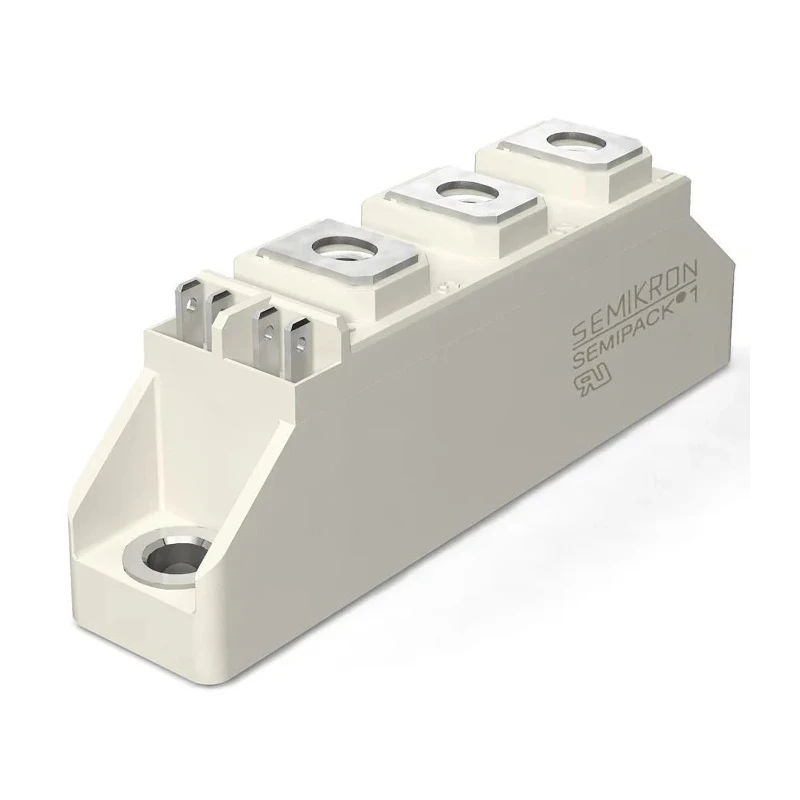

Semikron Danfoss SKKH 92/16 E is a high-performance Diode/Thyristor Module featuring SCR technology with a SEMIPACK 1 package designed for robust power electronics applications.

Its key electrical specifications include a repetitive peak reverse voltage (VDRM) of 1600 V and a rated average on-state current (Irms) of 95 A. This module can handle surge currents up to 2 kA, making it suitable for demanding industrial environments.

The maximum gate trigger current of 150 mA and a pin count of 5 allow for precise control and flexible mounting on panels. It operates reliably across a wide temperature range from -40°C to 125°C, ensuring durability under harsh conditions.

The module's maximum holding current is 250 mA and maximum gate trigger voltage is 3 V, providing stable switching behavior. The low peak on-state voltage of 1.65 V helps reduce power losses during conduction.

Encapsulated with an electrically isolated base plate, this module enhances safety and thermal management. It is commonly used in applications such as battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits in industrial and manufacturing setups.

Supports a repetitive peak reverse voltage of 1600 V. Rated average on-state current is 95 A for reliable power handling. Peak surge current capacity of 2 kA enhances overload tolerance. Features a maximum gate trigger current of 150 mA and pin count of 5.

Operating temperature range from -40°C to 125°C for broad environmental use. Maximum holding current of 250 mA ensures stable conduction. Low peak on-state voltage of 1.65 V reduces conduction losses. Encapsulated module with an electrically isolated base plate for safety.

Widely used in battery chargers, welders, and regulated power supplies. This product is manufactured in Germany and is recognized as a UL component, assuring quality standards for professional industrial use. Explore our full range of reliable semiconductor modules on EnvMart for diverse industrial electronics needs.
