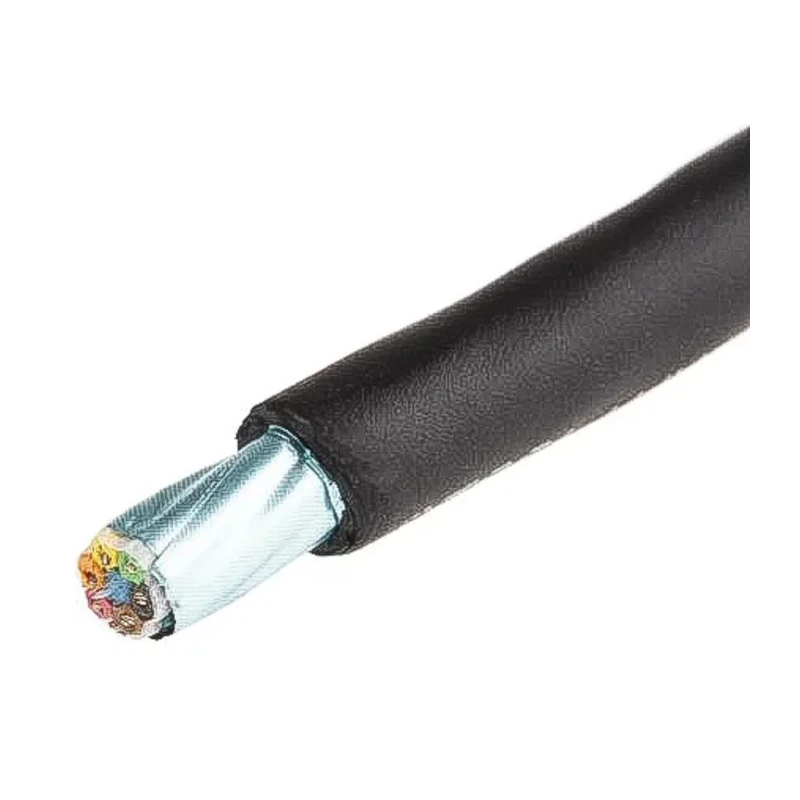

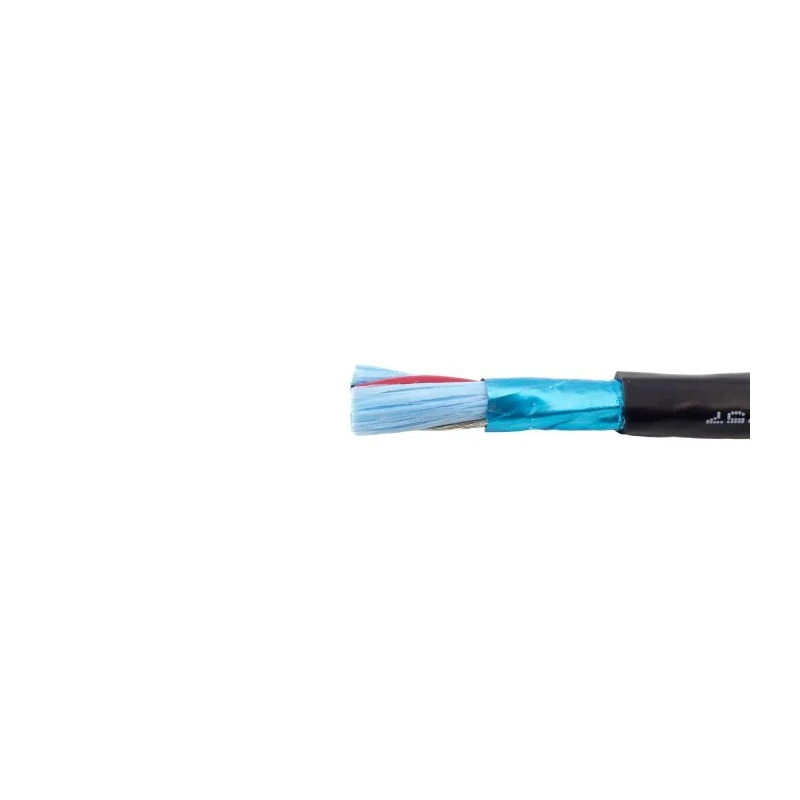

Alpha Wire XTRA-GUARD 2 Series Data Cable, 1 Pair, 0.35 mm², 30m, Black PVC Sheath, 300V, 25481 BK005

Alpha Wire 25481 BK005 XTRA-GUARD 2 Series Data Cable is engineered for demanding industrial and automation environments requiring reliable data transmission. This cable comprises a single pair of tinned copper conductors with a cross-sectional area of 0.35 mm², running 30 meters in length and protected by a tough black polyvinyl chloride (PVC) sheath. The robust shielding arrangement, including an aluminium/mylar foil wrap and tinned copper drain wire, is designed to preserve signal integrity and reduce external electromagnetic interference.

The cable supports standard low-voltage applications with a voltage rating of 300V, making it suitable for fieldbus, single-pair communication, control panel wiring, and shielded sensor cabling in electronic and mechanical assemblies. A 7-strand conductor configuration balances flexibility for routing and ease of solder or crimp termination, while its white/black color-coding simplifies installation and troubleshooting when multiple cables are harnessed together.

Durability is key in industrial installations: the PVC sheath delivers sunlight resistance, abrasion protection, and nominal wall thickness for longevity without excessive stiffness. Flame-retardant performance is certified to UL VW-1 and CSA FT1 standards, ensuring safety during cable operation and installation. The product operates reliably across temperature extremes from -30°C to 90°C, maintaining signal performance and mechanical resilience.

Applications include fieldbus communication in automation systems, control-panel wiring, shielded sensor applications, and test/measurement interconnects, with a minimum bend radius recommended at ten times the cable diameter for best installation practices. Pull tension should not exceed the specified mechanical limits, supporting both flexible and fixed deployments.

Industrial users benefit from the comprehensive shield and robust build which prevents signal loss and enhances operating reliability in areas subject to electrical noise or mechanical stress. It simplifies specification acceptance across UL, CSA, and CE regions, allowing cross-border projects and uniform installations.

Features 1 pair of 0.35 mm² tin copper wire optimized for consistent conductivity. Suitable for low-voltage systems with a 300V rating, supporting industrial automation and control applications. 30 meter cable length enables versatile installation in control panels, sensor runs and test rigs.

Rugged black polyvinyl chloride sheath offers sunlight resistance and abrasion protection in harsh environments. Aluminium/mylar foil shield and tinned copper drain conductor minimize electromagnetic interference. Flexible 7-strand construction supports both routing and reliable terminations.

UL VW-1, CSA FT1 flame-retardant properties for enhanced safety and regional compliance. Operating temperature range from -30°C to 90°C for robust performance across industrial extremes.
