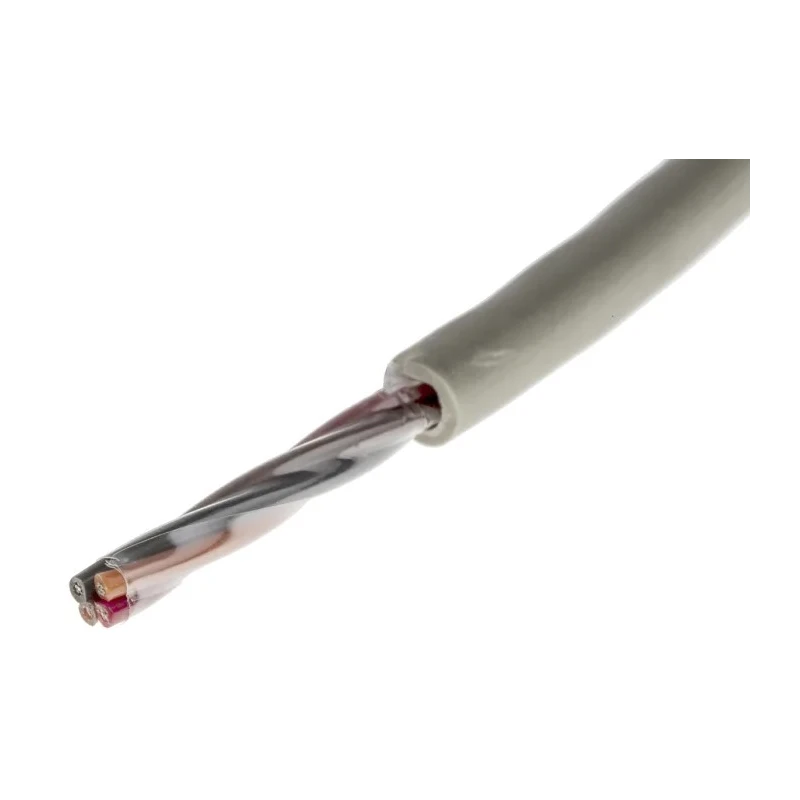

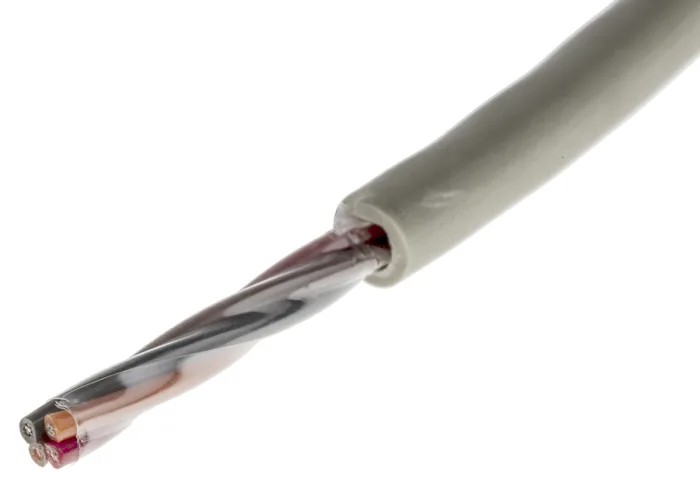

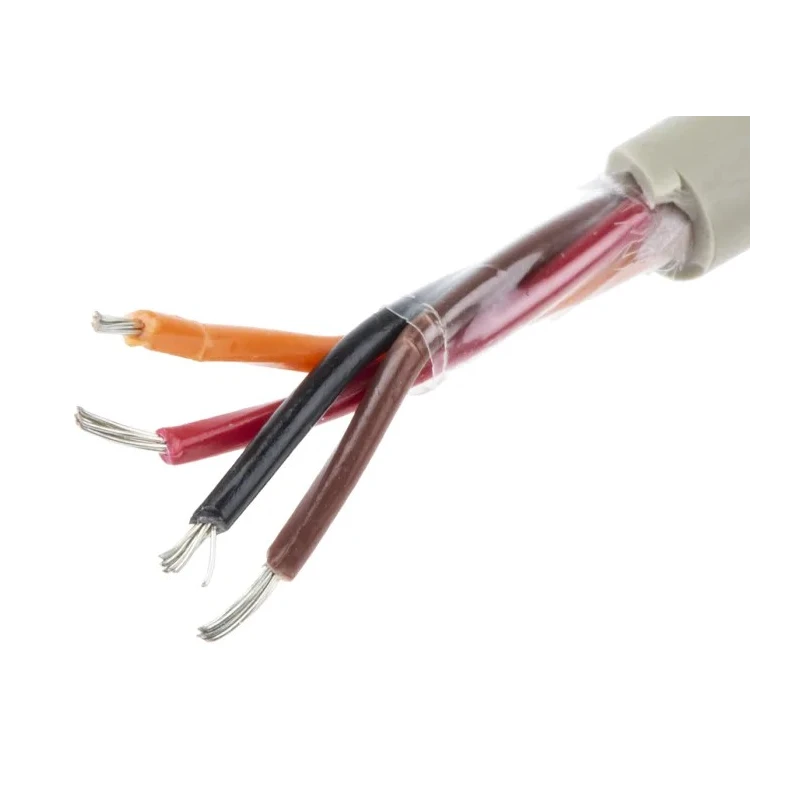

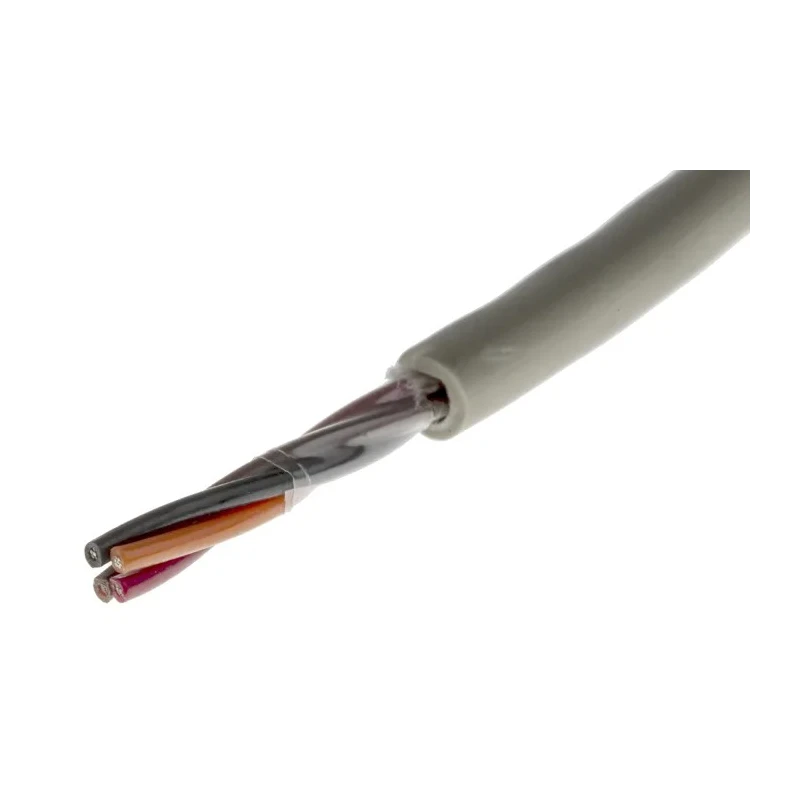

Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 4 Cores, 100 m, PVC Jacket, 300V, Grey, B953041 GE033

Alpha Wire presents the B953041 GE033 Pro-Tekt Series Data Cable, purpose-built for robust industrial and electronic communication installations. This high-quality cable features four cores, each with a 0.23 mm² cross-sectional area made from stranded, tin-plated copper for increased flexibility and improved fatigue life, ensuring reliable signal transmission in high-cycle and demanding environments. The cable is designed to meet the requirements of modern control panels, signal lines, and communication harnesses where durability and practical routing are essential.

The Pro-Tekt Series Data Cable is supplied in a continuous 100 meter length reel, allowing professional installers and engineers to plan their wiring layouts and reduce the need for splicing during cabinet or system integration. The grey outer jacket is manufactured from premium polyvinyl chloride (PVC), providing not only a consistent professional appearance in panel work but also flame-retardant properties for compliance with stringent electrical safety regulations. A nylon ripcord is included beneath the jacket to facilitate straightforward removal and quicker termination processes onsite.

This flexible data cable is engineered for reliable operation across a temperature range of -30°C to +105°C and supports up to 300V, making it suitable for use in a wide variety of electronic control, industrial automation, and communication system architectures. Its seven-strand conductor construction provides excellent mechanical flexibility - ideal for installation in environments where frequent movement or compact routing is required.

Cable certification to UL, CE, and CSA standards affirms its suitability for international and Indian industrial projects. It meets quality and safety benchmarks expected for demanding manufacturing, laboratory systems, and commercial installations. The flame-retardant build mitigates fire propagation risk, supporting elevated safety protocols in sensitive or high-value equipment environments.

The most common applications include internal wiring for process control panels, point-of-sale peripherals, and medical or high-technology equipment where a compact, flexible connection is crucial. It is particularly well-suited for use in communication links within controlled environments and any installation requiring a durable and visually organized harness solution.

Key technical specifications include a cross-sectional area of 0.23 mm², four separate conductors, a 100 m length per reel, grey PVC outer jacket, an outside diameter of 4.42 mm, tinned copper core conductors with each strand sized at 0.2 mm (7 x 0.2 mm per core), operating voltage of 300V, and continuous performance from -30°C to 105°C. The series supports efficient layout and reliability in both standard and space-constrained electrical panel applications.

For further product comparison and selection, Alpha Wire Pro-Tekt Series offers extended options for multicore, flexible, and flame-retardant cabling. Visit the Industrial Cable section to explore the complete range.
