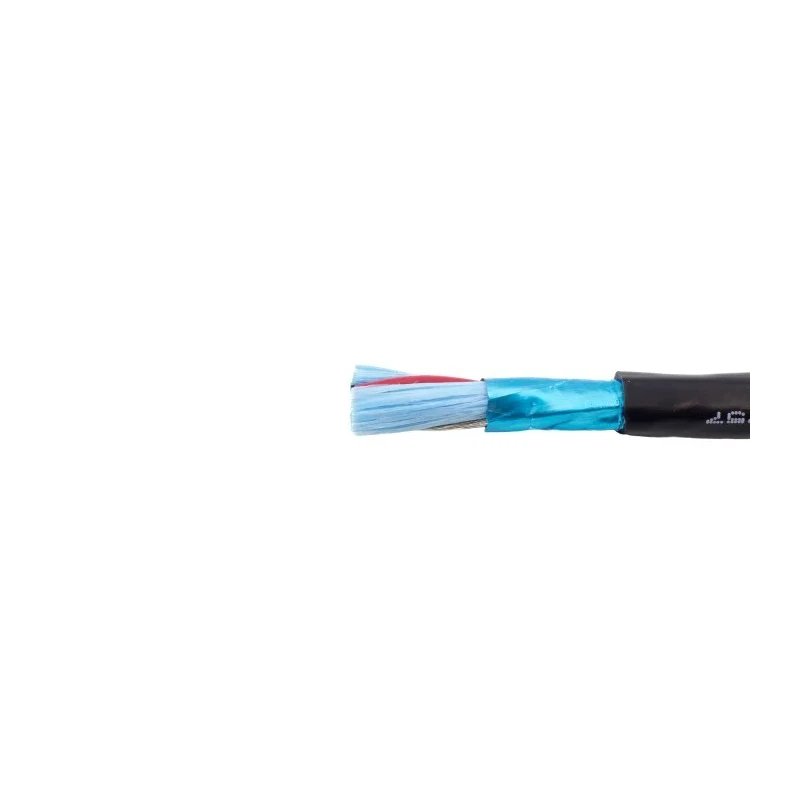

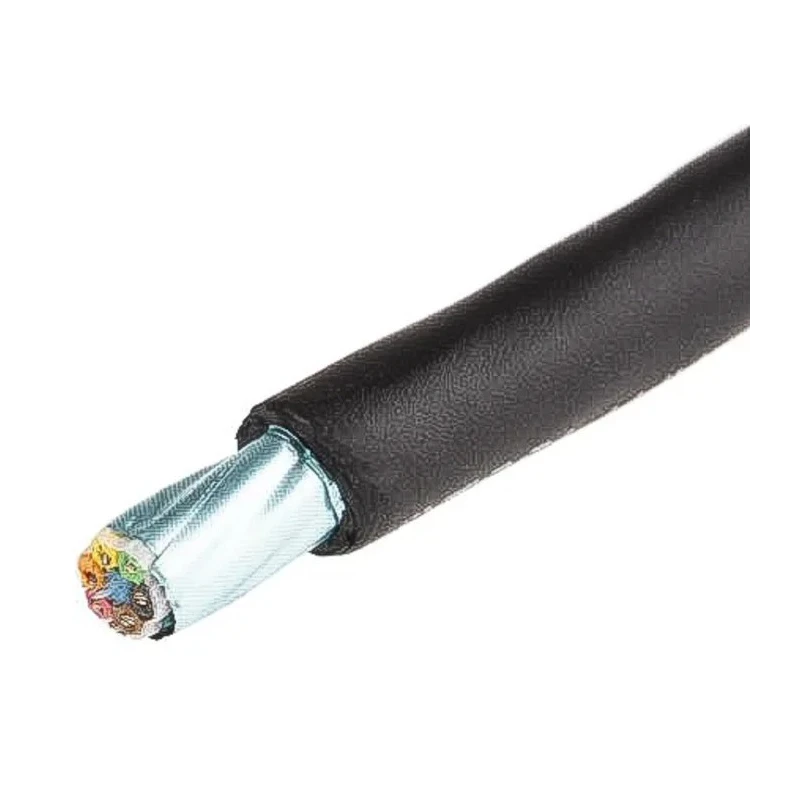

Alpha Wire XTRA-GUARD 2 Series Data Cable, 2 Pairs, 0.35 mm², 30 m, Black Polyvinyl Chloride Sheath 25482 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Display | screen |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | 25482 BK005 |
| Cable Length | 30m |
| Series | XTRA-GUARD 2 |
| Outside diameter | 5.99mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CSA, UL, CE |
| Jacket Colour | Black |
| Fire Behaviour | Flammability Test: VW-1 |
| Conductor Type | Copper |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Number of Pairs | 2 |
| Fire BehaviourFlammability Test | VW-1 |
| Flammability Test | VW-1 |
Key Features
- Features 2 pairs of tinned copper conductors for improved signal integrity.
- Each conductor is constructed from 7 strands for flexibility and durability.
- PVC jacket provides sunlight resistance and temperature rating from -30°C to 90°C.
- Shielded foil construction reduces electromagnetic interference.
- 30 m cable length enables long-distance installation across industrial sites.
- Rated at 300V for standard control and signal circuits.
- Complies with CSA, UL, and CE standards for quality and safety.
- Ideal for factory automation, panel wiring, and test measurement setups.
Product Description
Alpha Wire 25482 BK005 XTRA-GUARD 2 Series Data Cable is specifically engineered for industrial and automation applications requiring secure and high-performance data transmission. This cable includes 2 pairs of tinned copper conductors, each composed of 7 strands to offer flexibility, repeated bending tolerance, and reliable signal integrity. The 0.35 mm² cross-sectional area ensures consistent conductivity, suitable for precise control in field installations.
The outer jacket is made from Polyvinyl Chloride (PVC), providing excellent sunlight resistance and extended operational temperature range from -30°C up to 90°C. This robust sheath allows for use in demanding environments, including indoor and limited outdoor exposure, where protection against mechanical stress and environmental hazards is critical.
An aluminium/Mylar foil shield with a drain wire is wrapped around paired assemblies, significantly reducing electromagnetic interference and maintaining stable data flow. The cable achieves a VW-1 flame-retardant rating, enhancing safety in installations susceptible to fire hazards. With a voltage rating of 300V, this cable meets requirements for standard signal wiring in machinery, panel boards, control cabinets, and test equipment.
Designed for installation versatility, the cable has a minimum bend radius of ten times its diameter and a maximum pull tension of 27 lbs, ensuring uncompromised handling during setup. Its black sheath is factory-marked for easy identification and traceability, supporting inventory management and maintenance procedures. The 30-metre reel is perfectly suited for long runs between equipment and sensors, supporting both machine-to-machine communications and test bench wiring.
The Alpha Wire 25482 BK005 cable is applicable in industrial automation, factory panel assembly, sensor wiring, electrical control systems, and test measurement benches across manufacturing, laboratory, and commercial settings. Its compliance with CSA, UL, and CE standards guarantees reliability, quality, and industry acceptance.
2-pair shielded construction for signal clarity and enhanced EMI rejection. Robust PVC jacket allows operation in extreme temperatures. Flexible tinned copper conductor design improves durability under repetitive motion.
30-metre length supports large-scale industrial installations. Rated for 300V and VW-1 flame safety for control and instrumentation circuits. Suitable for wiring automation panels, sensors, laboratory equipment, and factory machinery.
Explore more Industrial Cables from Alpha Wire and related categories in Wires & Cables at EnvMart for premium automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated at 300V, suitable for standard control and signal circuits.
The cable operates within a temperature range of -30°C to 90°C, making it suitable for various environments.
The cable length is 30 meters, allowing for long-distance installations across industrial sites.
The cable features a Polyvinyl Chloride (PVC) jacket and tinned copper conductors, enhancing flexibility and durability.
It includes 2 pairs of conductors, each made up of 7 strands for improved signal integrity and flexibility.
The outside diameter of this cable is 5.99 mm.
It features an aluminium/Mylar foil shield with a drain wire, which significantly reduces electromagnetic interference.
The cable complies with CSA, UL, and CE standards, ensuring quality and safety in its applications.
The minimum bend radius is ten times the diameter of the cable, which aids in proper installation without compromising performance.
It has a VW-1 flame-retardant rating, enhancing safety in installations that may be susceptible to fire hazards.
This cable is ideal for factory automation, panel wiring, and test measurement setups across various industrial environments.
The black sheath of the cable is factory-marked for easy identification and traceability, supporting inventory management.
