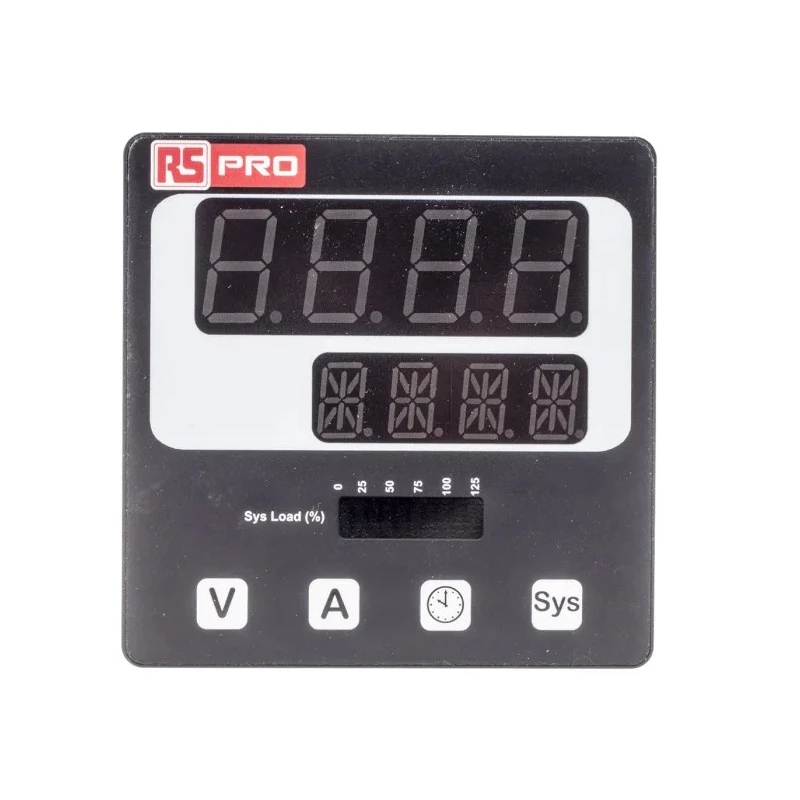

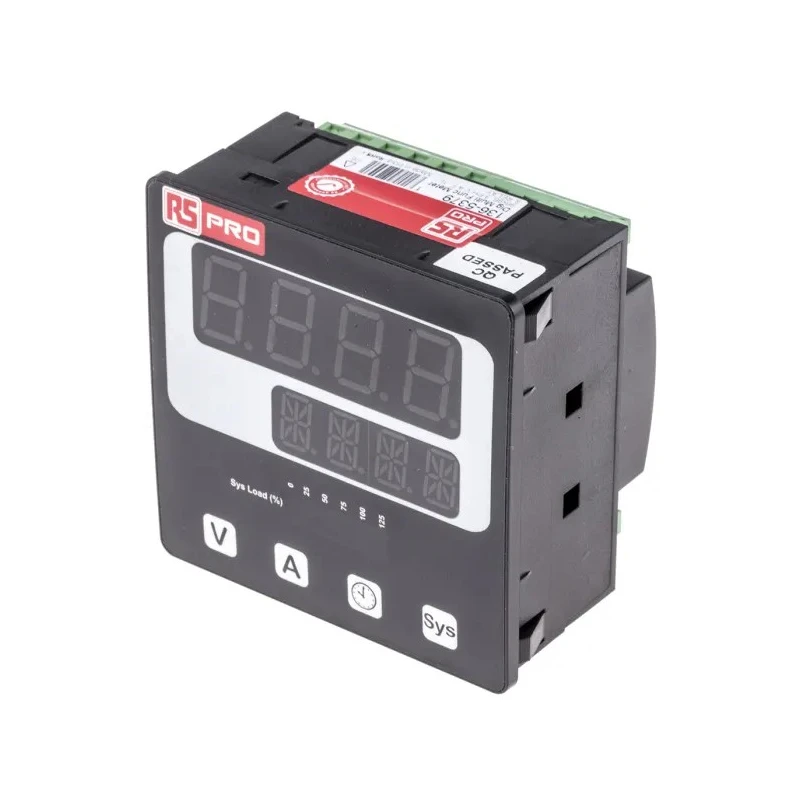

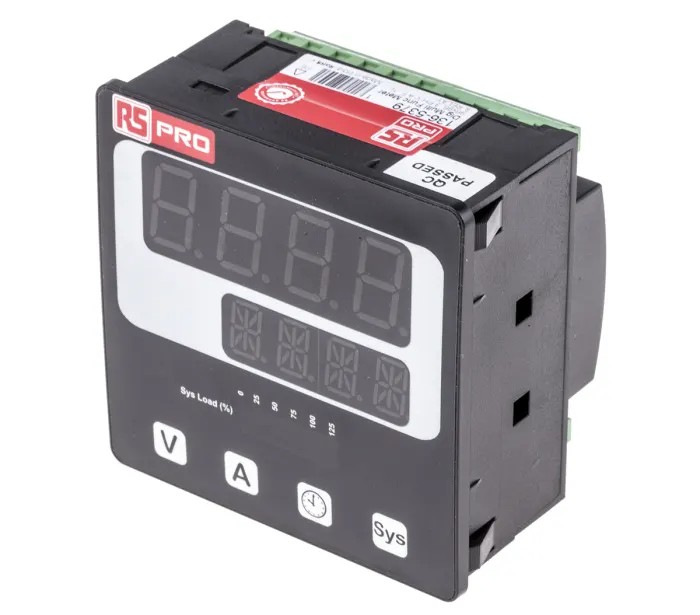

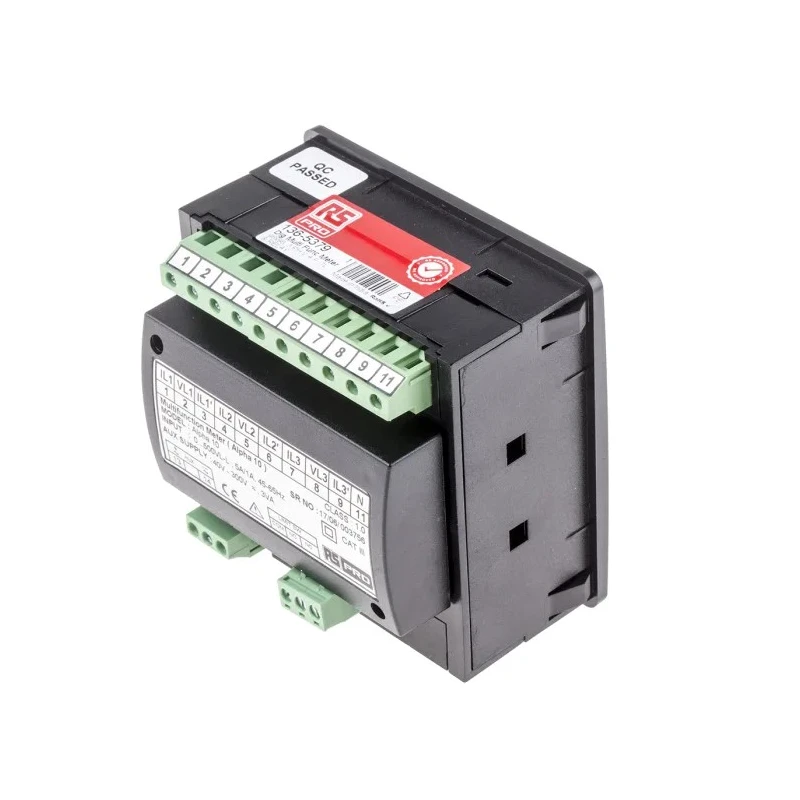

HOBUT Digital Panel Multifunction Meter for AC Current, Rotational Speed, Frequency, AC Voltage, Hour, 92 mm x 92 mm 136-5379

The RS PRO 136-5379 Digital Panel Multifunction Meter is a versatile instrument designed to measure key electrical parameters such as AC current, rotational speed, frequency, and AC voltage, along with elapsed running hours. Its 4-digit, ultra-bright LED display ensures sharp and clear visualization of measured values. The device fits securely into a standard 92 mm x 92 mm cutout panel size, making it suitable for various industrial and commercial applications.

Engineered for robust performance, this meter operates effectively across a wide temperature range from -20°C to 70°C, complying with international standards IEC 60529, IEC 61010-1-2001, and IEC 61326-1:2005. It features true RMS measurement technology, providing accurate readings essential for process control and electrical system diagnostics in three-phase four-wire or three-wire networks.

The meter supports both 1-line and 3-line display configurations, with optional limit switch functions on 3-line models. It includes flexible programming capabilities with on-site CT/PT ratio adjustment, user-selectable CT secondary currents of 1A or 5A, and PT secondary voltage options ranging from 100 VLL to 500 VLL. These features accommodate diverse electrical network configurations and enhance installation convenience.

Additional functionalities include the storage of minimum and maximum measurement values, measurement of RPM, run hours, number of interrupts, and load management capabilities. The load manager function, available on single-line models, indicates system current percentage, aiding in system performance monitoring and fault detection.

This meter draws power from a wide auxiliary supply range, accepting inputs from 40 V to 300 V AC/DC or 12 V to 48 V DC, enhancing compatibility with various power systems. Its compact 62 mm depth and a digit height of 20 mm enable easy integration and clear readability.

Ideal for industrial, process control, construction, HVAC, manufacturing, and water treatment applications, the RS PRO 136-5379 offers a reliable solution for accurate multi-parameter electrical measurement. It helps reduce the need for multiple analog meters by combining several functions into a single compact unit.

Features a bright 4-digit LED display for clear readings. Operates within a temperature range of -20°C to 70°C. Provides true RMS measurements for accuracy. Supports 1 line or 3 line display options depending on the model.

On-site programmable CT/PT ratios for flexible installation. Measures multiple electrical parameters in three phase networks. Includes storage of MIN/MAX values for system monitoring. Wide auxiliary power supply range accepts 40 V to 300 V AC/DC or 12 V to 48 V DC.

Supports load manager indication for system current percentage in single-line models. Explore more in the Digital Panel Multifunction Meter category on EnvMart for a wide range of industrial automation solutions.
