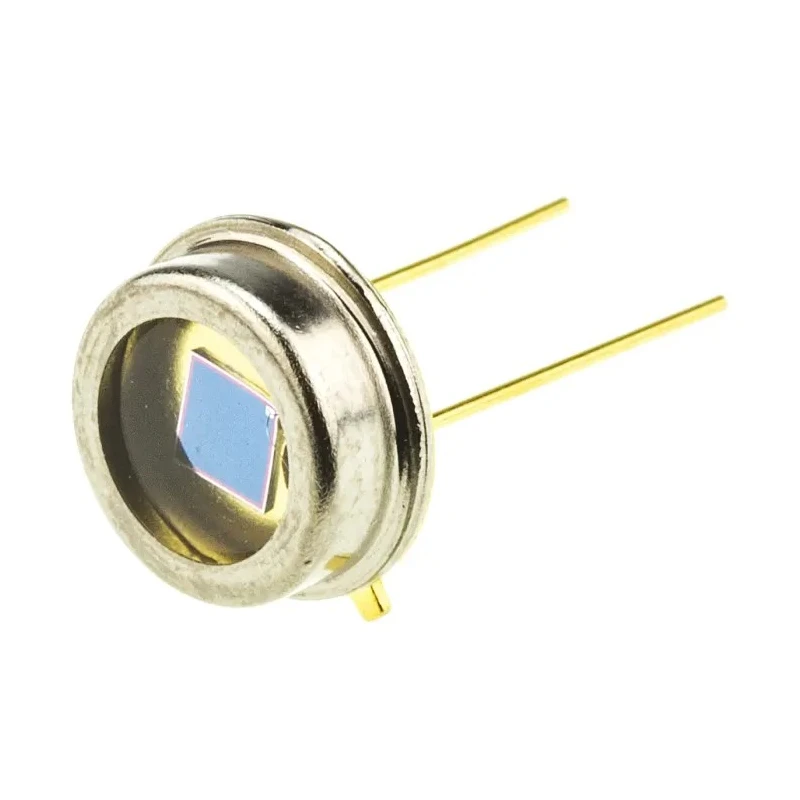

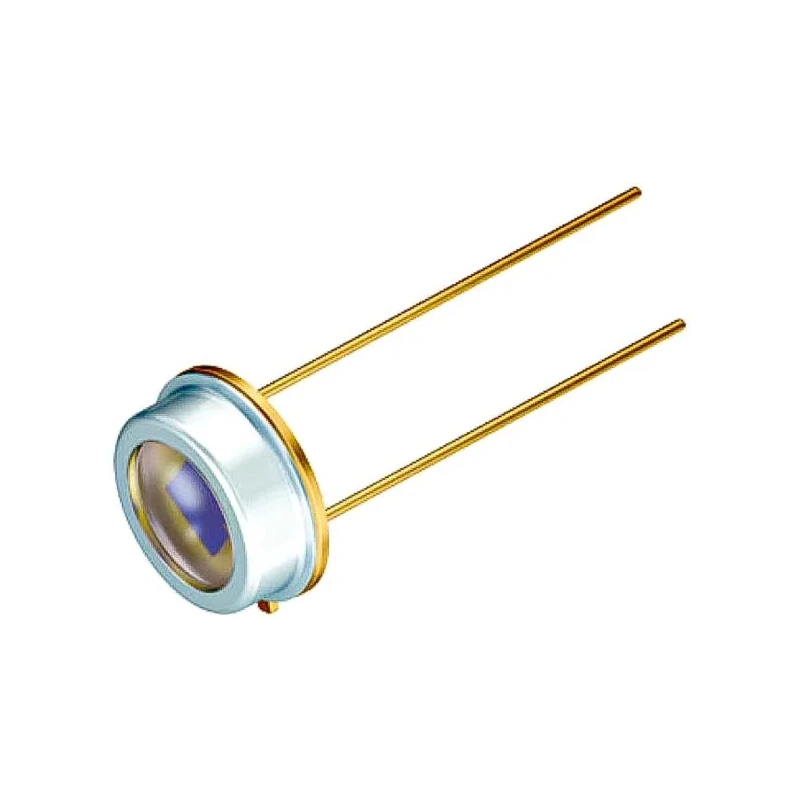

ams OSRAM Visible Light, Infrared Photodiode, Through Hole TO-5, 2 Pins, 55° Sensitivity Angle BPX 61

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Visible Light, Infrared Photodiode, Through Hole TO-5, 2 Pins, 55° Sensitivity Angle BPX 61

Name: ams OSRAM Visible Light, Infrared Photodiode, Through Hole TO-5, 2 Pins, 55° Sensitivity Angle BPX 61
Brand: ams OSRAM
SKU: 202104
Price: 16.17 USD
Availability: InStock



Category Photodiode Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Height	3.7mm
Length	9.5mm
Model	BPX 61
Packaging	Tape & Reel
Width	9.5mm
Mount Type	Through Hole
Short Circuit Current	25μA
Maximum Operating Temperature	100°C
Package Type	TO-5
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	2nA
Open Circuit Voltage	330mV
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	20ns
Wavelength of Peak Sensitivity	850nm
Spectrums Detected	Visible Light, Infrared
Breakdown Voltage	16V
Minimum Wavelength Detected	400nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	55 °

Key Features

The photodiode detects wavelengths between 400nm and 1100nm, peaking at 850nm.
It is housed in a hermetically sealed metal TO-39 style TO-5 package suitable for harsh environments.
Operating temperature ranges from -40°C to 100°C, making it suitable for various industrial applications.
Typical rise and fall times are 20ns, ensuring fast switching capabilities.
Forward polarity with short circuit current of 25μA and low dark current of 2nA.
Breakdown voltage rated at 16V and open circuit voltage of 330mV.
Complies with RoHS standards and is packaged in tape & reel format for automated insertion.

Product Description

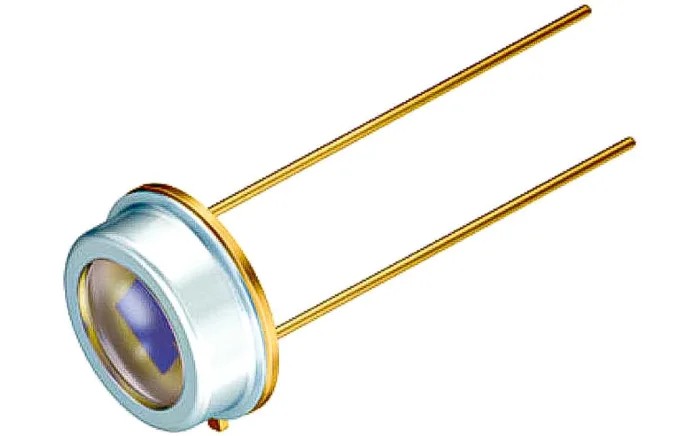

The ams OSRAM BPX 61 photodiode is a silicon PIN photodiode designed for detection of visible light and infrared spectra. Packaged in a hermetically sealed TO-5 metal can (TO-39 style), it is rugged and ideal for industrial and electronic applications requiring high reliability and fast response.

This photodiode operates effectively within the wavelength range of 400nm to 1100nm with a peak sensitivity at 850nm, making it suitable for photointerrupters, infrared remote controls, and control/drive circuit applications.

The BPX 61 supports operation over a wide temperature range from -40°C to 100°C and offers typical rise and fall times of 20ns for quick signal response. It has a forward polarity with a short circuit current of 25μA, a low dark current of 2nA, breakdown voltage of 16V, and open circuit voltage at 330mV.

Its compact size with 9.5mm length, 9.5mm width, and 3.7mm height, along with a 55° half sensitivity angle, supports a variety of optoelectronic designs. The device is RoHS compliant and available in tape & reel packaging to support automated manufacturing processes.

The photodiode detects wavelengths between 400nm and 1100nm, peaking at 850nm. It is housed in a hermetically sealed metal TO-39 style TO-5 package suitable for harsh environments. Operating temperature ranges from -40°C to 100°C, making it suitable for various industrial applications.

Typical rise and fall times are 20ns, ensuring fast switching capabilities. Forward polarity with short circuit current of 25μA and low dark current of 2nA. Breakdown voltage rated at 16V and open circuit voltage of 330mV.

Complies with RoHS standards and is packaged in tape & reel format for automated insertion.

This photodiode is ideal for use in industrial electronics, photointerrupters, infrared remote control systems, and various electronic control and drive circuits in industrial, manufacturing, and commercial applications.
