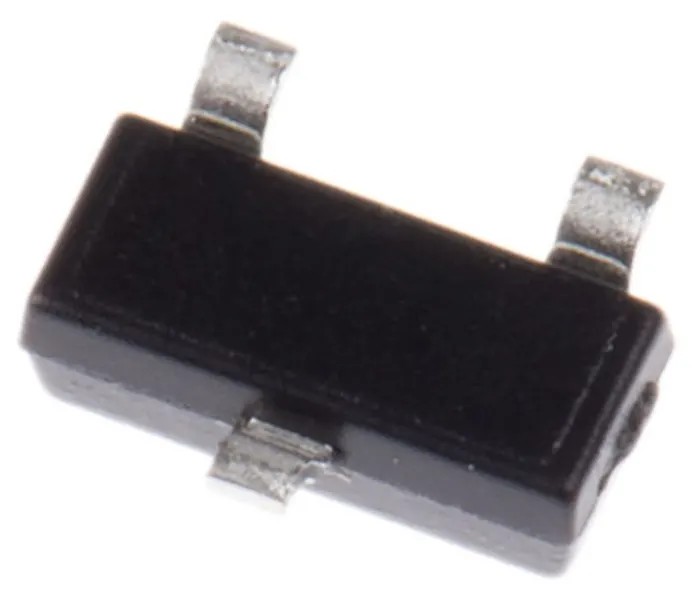

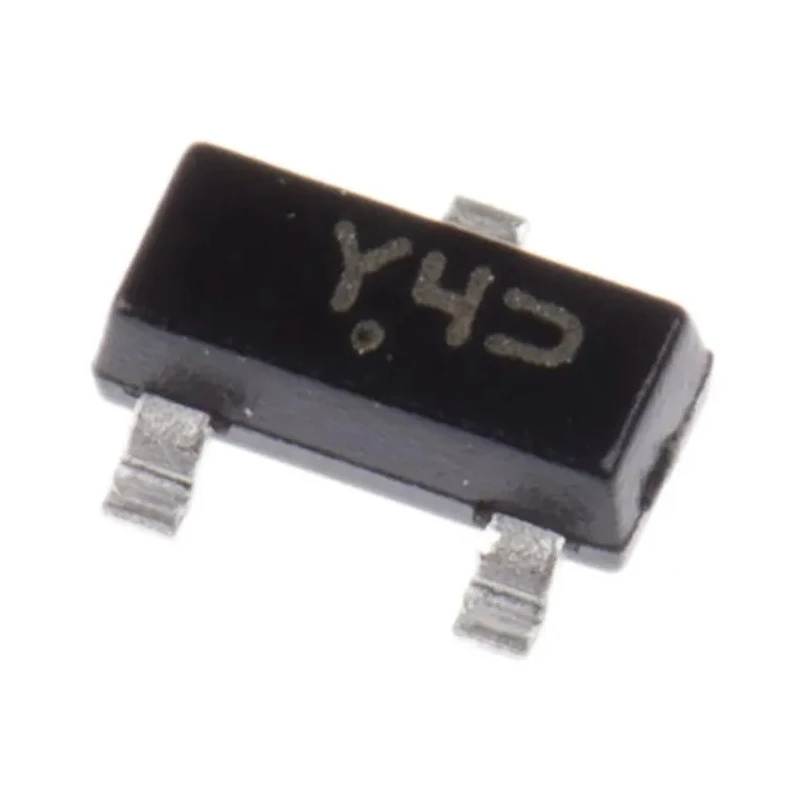

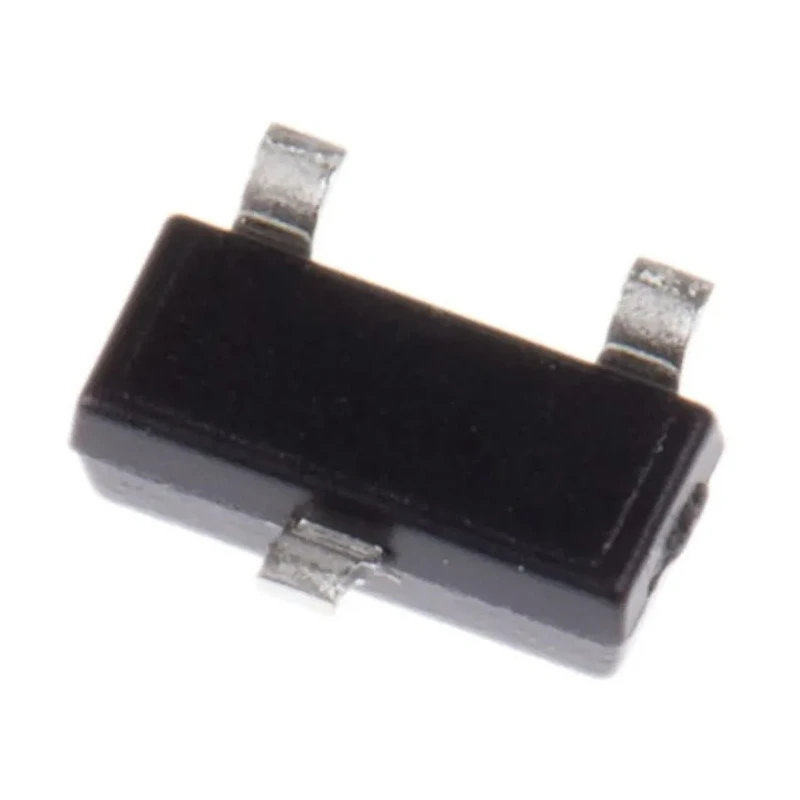

onsemi 15 V Voltage Regulator Zener Diode 300 mW Surface Mount 3-Pin SOT-23 BZX84C15LT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 15 V Voltage Regulator Zener Diode 300 mW Surface Mount 3-Pin SOT-23 BZX84C15LT1G

Name: onsemi 15 V Voltage Regulator Zener Diode 300 mW Surface Mount 3-Pin SOT-23 BZX84C15LT1G
Brand: onsemi
SKU: 185580
Price: 0.03 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	1.11mm
Length	3.04mm
Model	BZX84C15LT1G
Mount Type	Surface
Series	BZX84
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Number of Elements per Chip	1
Maximum Power Dissipation Pd	300mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	15V
Zener Type	Voltage Regulator
Maximum Zener Impedance	200Ω
Typical Voltage Temperature Coefficient	9.2mV/K
onsemi, 15V Zener Diode 6% 300 mW SMT 3-Pin SOT-23Brand	ON Semiconductor

Key Features

Single diode configuration designed for voltage regulation applications.
Nominal Zener voltage of 15 volts with a tolerance of ±5%.
Maximum power dissipation rating of 300 milliwatts ensures reliable performance.
Compact SOT-23 surface mount package with 3 pins for easy PCB integration.
Wide operating temperature range from -65°C to 150°C supports diverse environments.
Test current specified at 5 mA for voltage regulation accuracy.
Maximum reverse leakage current of 50 nA minimizes power loss.
Maximum Zener impedance of 200 Ω at test current enhances stability.

Product Description

The onsemi BZX84C15LT1G is a high-quality 15 V Zener Diode engineered for precise voltage regulation in electronic circuits. This diode features a single-element construction with a nominal Zener voltage of 15 volts and ±5% tolerance, suitable for protecting sensitive components and stabilizing voltage supplies.

Designed in a compact 3-pin SOT-23 surface mount package, the diode allows for efficient PCB layout and automated assembly processes. Its maximum power dissipation rating of 300 milliwatts supports robust performance under continuous operation.

The diode operates reliably over a wide temperature range, from -65°C to 150°C, making it suitable for automotive, industrial, and consumer electronics applications. With a test current of 5 mA, it achieves accurate voltage regulation with a maximum Zener impedance of 200 Ω, and a very low reverse leakage current of 50 nA, reducing power consumption.

Its typical voltage temperature coefficient of 9.2 mV/K ensures stable voltage across varying environmental conditions. Single diode configuration designed for voltage regulation applications. Nominal Zener voltage of 15 volts with a tolerance of ±5%.

Maximum power dissipation rating of 300 milliwatts ensures reliable performance. Compact SOT-23 surface mount package with 3 pins for easy PCB integration. Wide operating temperature range from -65°C to 150°C supports diverse environments.

Test current specified at 5 mA for voltage regulation accuracy. Maximum reverse leakage current of 50 nA minimizes power loss. Maximum Zener impedance of 200 Ω at test current enhances stability. Typical voltage temperature coefficient of 9.2 mV/K ensures consistent voltage over temperature variations.

This Zener Diode is ideal for applications including industrial circuits, power supply voltage clamping, and electronic laboratory equipment. Its surface mount form factor suits modern automatic assembly lines and compact device designs. Discover more semiconductor components and Zener Diodes at EnvMart for your technical and industrial requirements.
