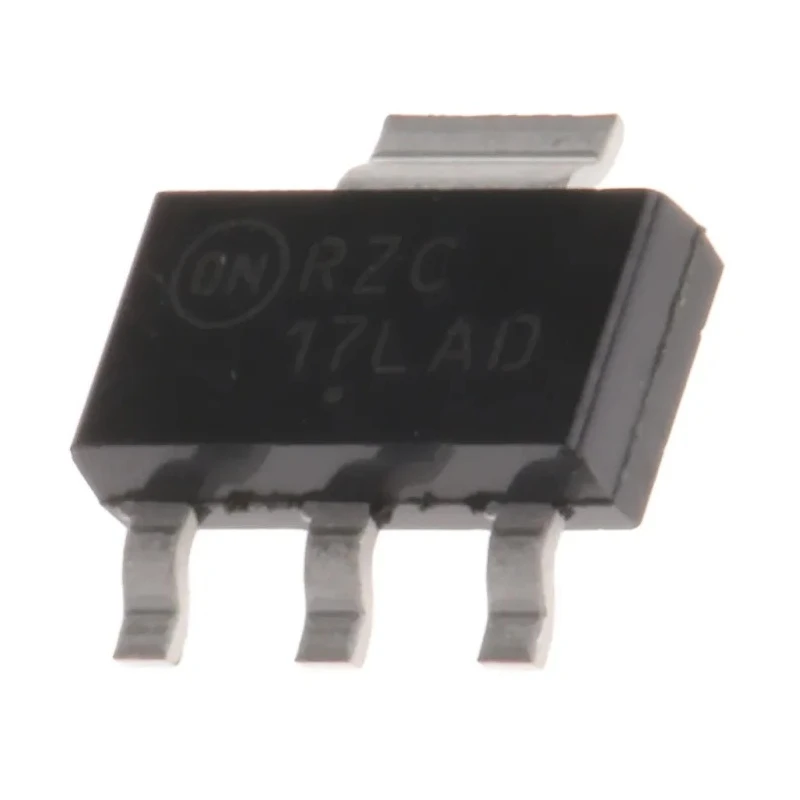

onsemi Voltage Regulator 18V SOT-223 4-Pin Positive Polarity Surface Mount NCP1117LPSTADT3G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi NCP1117LPSTADT3G, Voltage Regulator 18V SOT-223 4-Pin RS Stock |
| Brand | onsemi |
| Height | 1.69mm |
| Length | 6.7mm |
| Model | NCP1117LPSTADT3G |
| Width | 3.7mm |
| Mount Type | Surface |
| Series | NCP1117LP |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 18V |
| Quiescent Current | 50μA |
| Minimum Input Voltage | -0.3V |
| Pin Count | 4 |
| Automotive Standard | AEC-Q100 |
Key Features
- Operates with a maximum input voltage of 18 volts.
- Offers a low dropout voltage of 1.2V at 800 mA over temperature range.
- Features positive polarity and surface mount design with SOT-223 package.
- Capable of output current in excess of 1 ampere for robust power management.
- Includes current limit and thermal shutdown protection for device safety.
- Designed to meet automotive standard AEC-Q100 for reliable automotive applications.
- Compact dimensions of 6.7 mm length, 3.7 mm width, and 1.69 mm height.
- Quiescent current is only 50 microamps, ensuring low power consumption.
Product Description
onsemi NCP1117LPSTADT3G is a high-performance voltage regulator designed to provide stable positive voltage regulation with a maximum input voltage of 18 volts. It features a compact SOT-223 4-pin surface mount package suitable for space-constrained electronic applications.
This regulator delivers output current exceeding 1 ampere, with a low dropout voltage of 1.2 V at 800 mA across temperature variations, ensuring reliable power supply for sensitive electronic circuits. It includes essential protections against overcurrent and thermal conditions to enhance device reliability.
The device meets the stringent automotive AEC-Q100 standard, making it suitable for automotive and industrial use cases requiring robust and stable voltage regulation.
With a low quiescent current of 50 microamps, this Voltage Regulator conserves energy while maintaining excellent voltage accuracy and temperature stability. Key applications include power management in consumer electronics, industrial equipment, battery chargers, hard drive controllers, and point of regulation devices.
onsemi’s NCP1117LPSTADT3G supports fixed and adjustable voltage outputs ranging from 1.25 V to 18.8 V, making it versatile for a variety of power regulation needs. Compact dimensions of 6.7×3.7×1.69 mm optimize PCB space utilization.
Operates at maximum input voltage of 18V with positive polarity. Equipped with thermal shutdown and current limit protection to ensure safe operation. Compliant with automotive grade standards for reliability. Low dropout voltage and low quiescent current for energy efficiency.
Suitable for industrial, automotive, and consumer electronic applications. Explore EnvMart's comprehensive category of Power Management ICs for additional high-quality semiconductor solutions by onsemi and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the NCP1117LPSTADT3G is 18 volts.
This voltage regulator is capable of delivering output current in excess of 1 ampere.
It offers a low dropout voltage of 1.2V at 800 mA.
The quiescent current is only 50 microamps, ensuring low power consumption.
The dimensions of this model are 6.7 mm in length, 3.7 mm in width, and 1.69 mm in height.
It comes in a SOT-223 4-pin surface mount package.
This voltage regulator is designed to meet the automotive standard AEC-Q100.
The maximum operating temperature is 125°C.
It features positive polarity.
It is suitable for power management in consumer electronics, industrial equipment, battery chargers, and hard drive controllers.
Yes, it includes current limit and thermal shutdown protection for device safety.
The minimum input voltage is -0.3V.
