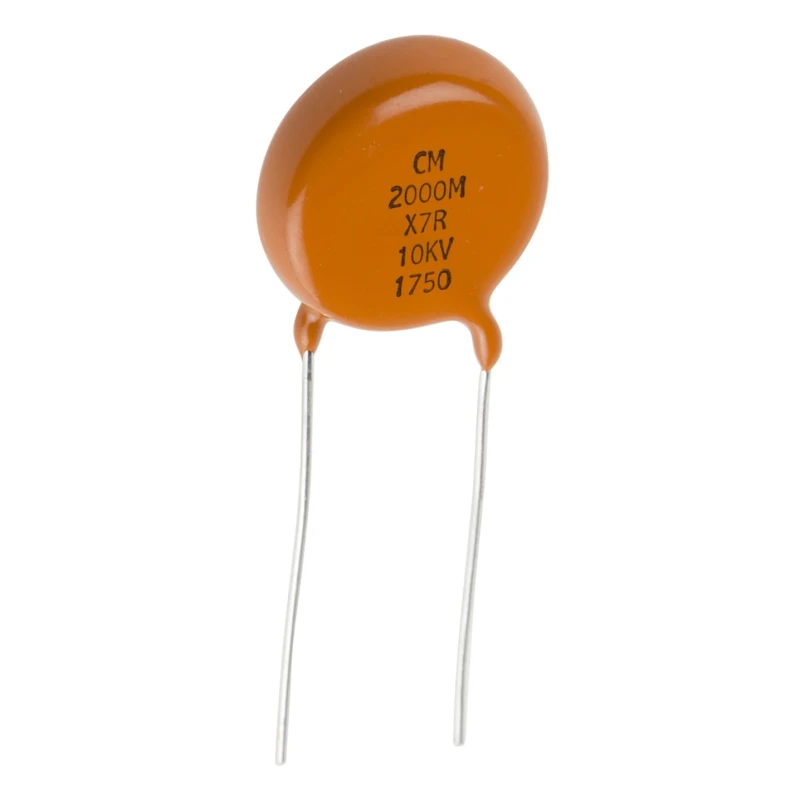

Vishay Single Layer Ceramic Capacitor 2 nF 10kV DC ±20 % X7R Dielectric Through Hole 105°C Max Op. Temp. 615RX7RAM103EN202M

Vishay 615RX7RAM103EN202M single layer ceramic capacitor is a high voltage component designed for precise and stable operation in demanding electronic and power applications. Featuring a capacitance of 2 nF and a voltage rating up to 10kV DC, this capacitor utilizes the X7R dielectric from the reliable 615R series.

The capacitor is constructed as a ceramic disc coated with flame retardant epoxy resin and silver plating on both sides, ensuring minimal losses and enhanced durability. Its through-hole radial mounting format and tinned copper radial leads simplify assembly in circuit boards.

It is engineered for a maximum continuous operating temperature of 105°C, allowing consistent operation under thermal stress. The product carries compliance with EC and RoHS standards, confirming its adherence to environmental and safety regulations.

Key applications include use in TVs and monitors, DC and pulse high voltage systems, X-ray equipment, and switched mode power supplies (SMPS). Its low loss characteristic and high reliability make it ideal for industrial, medical, and consumer electronics.

Designed for high power stability applications. Utilizes 615R series ceramic disc with radial through-hole mounting. Maximum operating temperature of 105°C ensures reliable performance. Features low losses and high reliability with silver-plated ceramic disc construction.

Terminated with tinned copper radial leads for easy soldering. Suitable for high voltage DC and pulse conditions. Applications include TV monitors, X-ray equipment, and switched mode power supplies. Complies with EC and RoHS standards for environmental safety.

Environmentally and industrially compliant, this Vishay capacitor provides a compact and dependable solution for high voltage applications. Explore more in the Single Layer Ceramic Capacitors category at EnvMart for advanced electronics components with assured quality.
