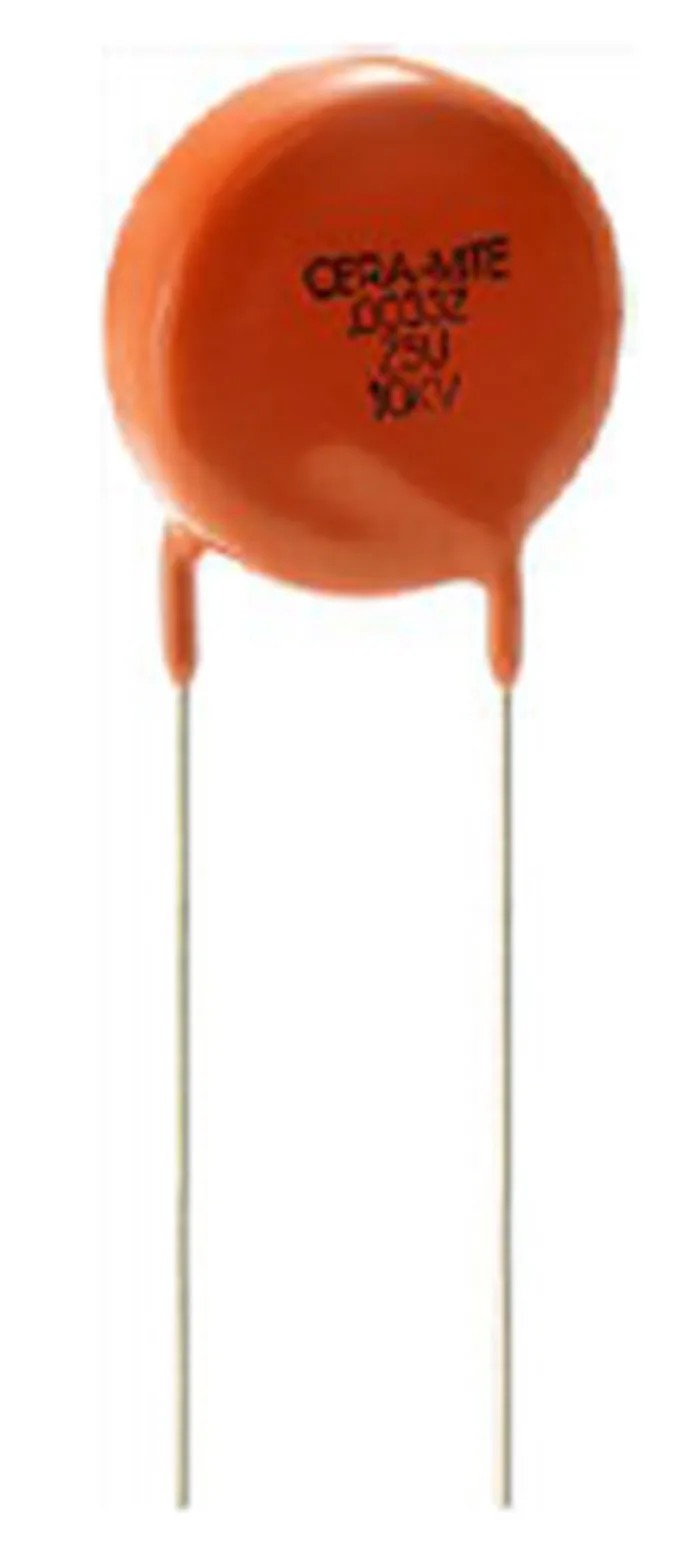

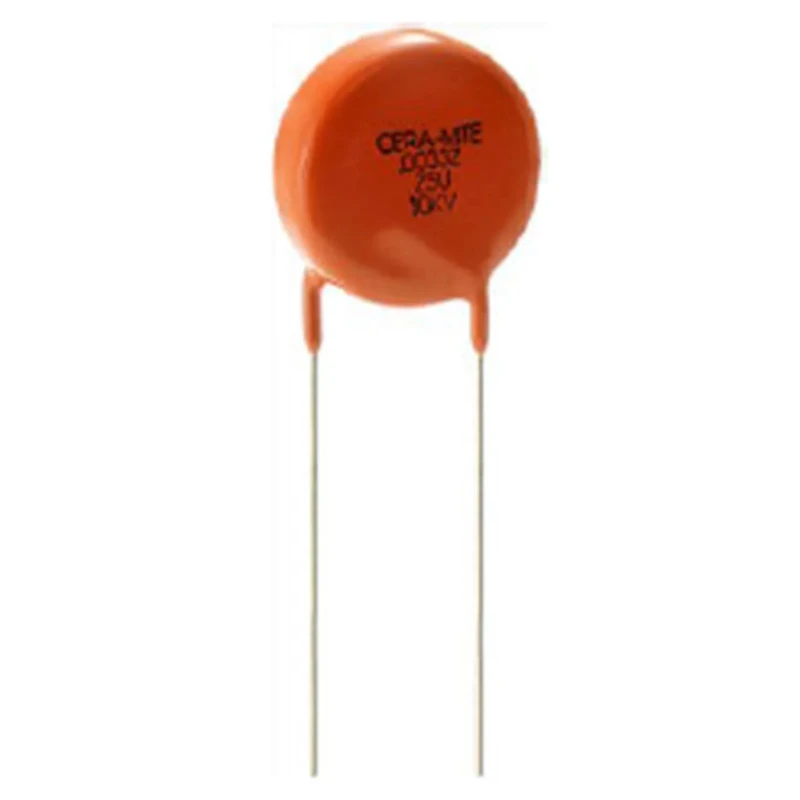

Vishay Single Layer Ceramic Capacitor 4.7 nF 10kV dc Through Hole, Z5U Dielectric, 105 °C Max Op. Temp. 615R100GAD47
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 10kV dc |
| Diameter | 24.9mm |
| Brand | Vishay |
| Model | 615R100GAD47 |
| Mount Type | Through Hole |
| Series | 615R |
| Maximum Operating Temperature | 105°C |
| Tolerance | -20 to 80 % |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Terminal type | Radial |
| Dissipation Factor | 2% |
| Standards/Approvals | RoHS, EC |
| Pin Count | 2 |
| Dielectric | Z5U |
| Suppression Class | Class II |
Key Features
- Capacitance of 4.7 nanofarads suitable for high-voltage applications.
- Through hole mount type with radial terminal for robust PCB mounting.
- Z5U dielectric providing specific temperature characteristics within -20 to 80% tolerance.
- Operating temperature up to 105 °C for reliable performance.
- Diameter of 24.9 mm facilitating compact design integration.
- Dissipation factor of 2% minimizing losses during operation.
- Complies with RoHS and EC standards for environmental and quality compliance.
- Constructed with silver plated ceramic disc coated with flame retardant epoxy resin.
Product Description
Vishay 615R100GAD47 single layer ceramic capacitor with 4.7 nF capacitance and 10kV dc voltage is designed for high power and high stability applications. This capacitor employs Z5U dielectric material providing performance stability with a capacitance tolerance of -20 to 80% over temperature.
The capacitor body consists of a ceramic disc with silver plating on both sides, coated with flame retardant epoxy resin for enhanced safety and durability. It features radial tinned copper through hole leads for secure mounting on circuit boards.
With a maximum operating temperature of 105 °C and a dissipation factor of 2%, the capacitor reduces losses and ensures reliable electrical performance in demanding environments. Its diameter of 24.9 mm makes it suitable for compact electronic designs.
This 2-pin capacitor complies with RoHS and EC standards, ensuring environmental safety and quality. Applications include TV and monitor circuits, DC and pulse high voltage circuits, X-ray equipment, and switched mode power supplies (SMPS) where high voltage ceramic disc capacitors are essential.
Capacitance of 4.7 nanofarads suitable for high-voltage applications. Voltage rating up to 10kV dc ensuring high voltage tolerance. Through hole mount type with radial terminal for robust PCB mounting. Z5U dielectric providing specific temperature characteristics within -20 to 80% tolerance.
Operating temperature up to 105 °C for reliable performance. Diameter of 24.9 mm facilitating compact design integration. Dissipation factor of 2% minimizing losses during operation. Complies with RoHS and EC standards for environmental and quality compliance.
Constructed with silver plated ceramic disc coated with flame retardant epoxy resin. Ideal for TV, monitors, X-ray equipment, and switched mode power supplies.
Explore more electronics components and capacitors to find compatible parts and enhance your industrial and laboratory projects. Discover Vishay capacitors and related high-quality products at EnvMart.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 4.7 nanofarads.
It has a maximum voltage rating of 10kV dc, making it suitable for high-voltage applications.
This capacitor features a through hole mount type with radial terminals for secure PCB mounting.
The maximum operating temperature is 105 °C, allowing for reliable performance in demanding environments.
It employs Z5U dielectric material, which provides specific temperature characteristics with a tolerance of -20 to 80%.
The diameter of this model is 24.9 mm, facilitating compact design integration.
The dissipation factor is 2%, which helps minimize losses during operation.
It complies with RoHS and EC standards for environmental and quality compliance.
The minimum operating temperature is -25 °C.
This model features a pin count of 2.
It is suitable for applications such as TV and monitor circuits, DC and pulse high voltage circuits, and X-ray equipment.
The country of origin for this capacitor is the Czech Republic.
