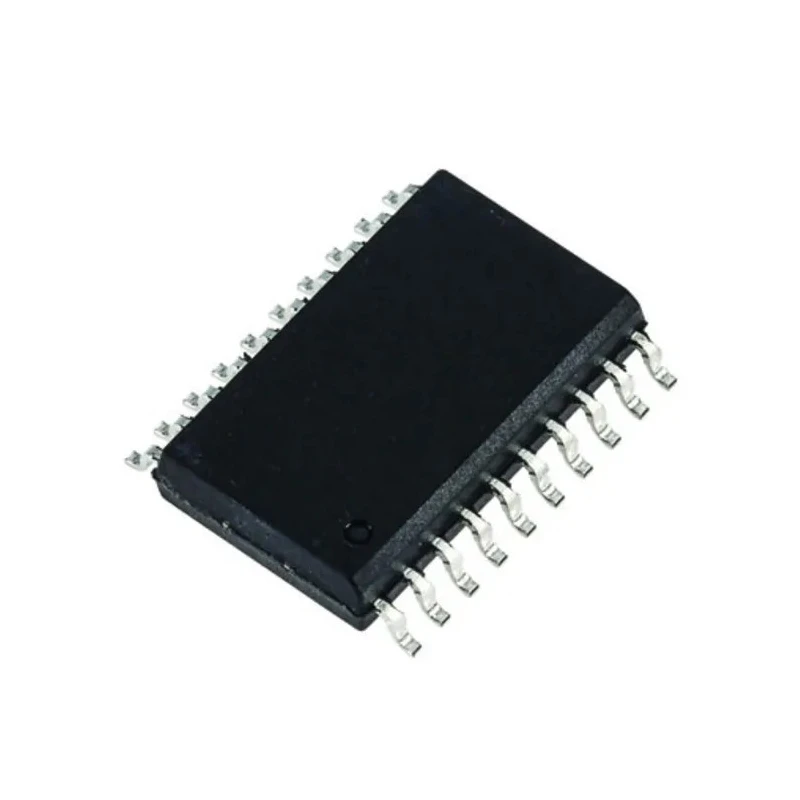

Infineon Brushless Motor Driver IC 28 V 8.6 A 20-Pin DSO TLE82092SAAUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Brushless Motor Driver IC 28 V 8.6 A 20-Pin DSO TLE82092SAAUMA1

Name: Infineon Brushless Motor Driver IC 28 V 8.6 A 20-Pin DSO TLE82092SAAUMA1
Brand: Infineon
SKU: 184379
Price: 5.45 USD
Availability: InStock



Category Motor Driver IC Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	3.25mm
Length	15.9mm
Model	TLE82092SAAUMA1
Width	11mm
Motor Type	Brushless
Mount Type	Surface
Series	TLE82092SAA
Configuration	Half Bridge
Maximum Operating Temperature	150°C
Package Type	DSO
Minimum Operating Temperature	-40°C
Pin Count	20
Maximum Collector Emitter Voltage Vceo	28V
Automotive Standard	AEC-Q101
Maximum Supply Voltage	28V
Minimum Supply Voltage	4.5V
Supply Current	13mA
Maximum IGBT Collector Current	8.6A
Typical Switching Frequency	11kHz

Key Features

Operates at a maximum collector emitter voltage of 28 V.
Supports half bridge configuration suitable for brushless motors.
Includes 20-pin DSO package for surface mounting.
Typical switching frequency of 11 kHz ensures smooth operation.
Wide operating temperature range from -40°C to 150°C.
Low supply current of 13 mA reduces power consumption.
Meets AEC-Q101 automotive standard for reliability.

Product Description

Infineon TLE82092SAAUMA1 is a brushless motor driver IC designed for automotive and industrial applications requiring precise motor control. This device operates at a maximum voltage of 28 V and supports a maximum IGBT collector current of 8.6 A, making it suitable for driving various inductive loads including DC motors.

The IC features a half bridge configuration and comes in a compact 20-pin DSO surface mount package, measuring 15.9 mm in length, 11 mm in width, and 3.25 mm in height. Its typical switching frequency is 11 kHz, enabling efficient motor operation with low noise generation.

Designed to withstand harsh environments, the device supports a wide operating temperature range from -40°C to 150°C. It includes short-circuit and over-temperature protection, under-voltage shutdown, and maintains a low standby current to improve system efficiency. Compliance with AEC-Q101 automotive standards ensures high reliability and performance in automotive systems.

This Motor Driver IC is optimal for use in industrial automation, robotics, HVAC systems, and automotive motor control applications. It enables precise control of brushless motors with enhanced protection features to safeguard both the motor and drive circuitry.

Operates at maximum 28 V supply voltage. Brushless motor control with half bridge configuration. Compact 20-pin DSO surface mount package. Wide operating temperature range from -40°C to 150°C. Low supply current and high efficiency.

Short-circuit and over-temperature protection included. Automotive grade AEC-Q101 certified. Explore the Infineon range of motor controllers and drivers on EnvMart for precision motor control solutions.
