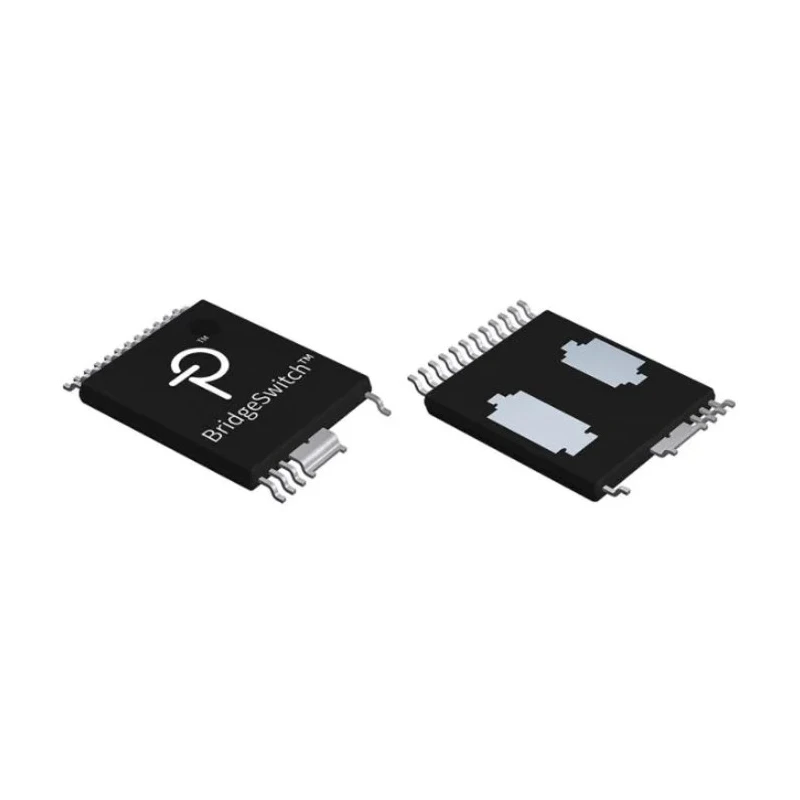

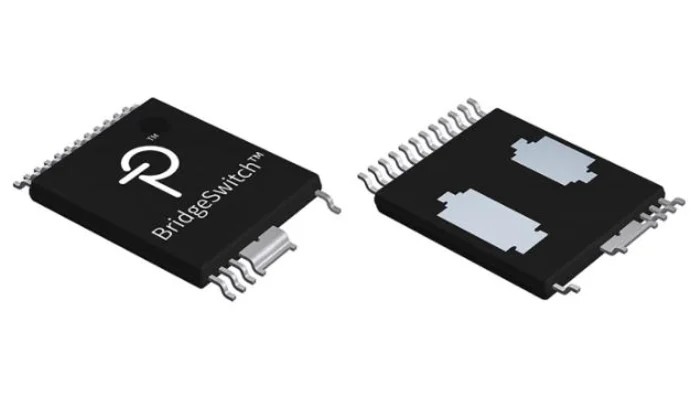

Power Integrations Brushless Motor Driver IC 1A 50V Half Bridge Surface Mount InSOP-C BRD1260C-TL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 1.45mm |
| Length | 9.4mm |
| Model | BRD1260C-TL |
| Width | 10.8mm |
| Motor Type | Brushless |
| Mount Type | Surface |
| Series | BRD1260 |
| Configuration | Half Bridge |
| Output Current | 1A |
| Maximum Operating Temperature | 150°C |
| Package Type | InSOP-C |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Maximum Supply Voltage | 50V |
| Supply Current | 12mA |
| Typical Switching Frequency | 20kHz |
| Inverter Power Rating | 400W |
Key Features
- Designed for brushless motors with half bridge configuration.
- Surface mount package type suitable for compact PCB designs.
- Typical switching frequency of 20 kHz for efficient motor control.
- Operating temperature range from -40°C up to 150°C for reliable performance.
- Features adjustable cycle-by-cycle current limit for both FREDFETs.
- Includes internal dual-level thermal overload protection for safety.
- Adaptive dead time and simultaneous conduction lockout increase system robustness.
- Low supply current consumption of 12 mA enhances energy efficiency.
Product Description
Power Integrations BRD1260C-TL is a high-performance brushless motor driver integrated circuit designed for control of 1-phase or 3-phase PM or BLDC motors. Featuring a 24-pin InSOP-C surface mount package, it delivers an output current rating of 1 ampere with a maximum supply voltage of 50 volts, enabling motor applications up to 400 watts inverter power rating.
The device operates with a half bridge configuration optimized for brushless motor drives and typical switching frequency of 20 kHz to achieve efficient power conversion and motor control. It supports a wide operating temperature range from -40°C to 150°C, suited for harsh industrial and automotive environments.
This motor driver IC includes adjustable cycle-by-cycle current limiting protecting FREDFETs, an internal dual-level thermal overload protection for fail-safe operation, and adaptive dead time control to minimize switching losses. Additional features like simultaneous conduction lockout further improve reliability in demanding applications.
With a low supply current of 12 mA, the BRD1260C-TL is designed for energy-efficient electronic motor drives in industrial automation, HVAC systems, commercial electric vehicles, and manufacturing equipment. Its compact InSOP-C package enables integration into space-constrained PCBs.
Brushless motor driver optimized for half bridge configuration. Adjustable current limiting and thermal protections ensure durability. Adaptive dead time and conduction lockout for robust switching. Wide operating temperature and voltage range for industrial use.
Low supply current enhances overall system efficiency. Supports 400W inverter motor power applications. Compact surface mount packaging for modern electronics assembly.
This Power Integrations Motor Driver IC is a vital component for electronic control in automation, laboratory instruments, HVAC equipment, and various commercial motor control systems. It combines high reliability with advanced safety features to support demanding industrial environments.
Explore additional power management ICs and motor driver solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 50 volts.
It has an output current rating of 1 ampere.
The typical switching frequency for this model is 20 kHz.
The operating temperature range is from -40°C to 150°C.
This model is designed for brushless motors with a half bridge configuration.
The dimensions are 9.4 mm in length, 10.8 mm in width, and 1.45 mm in height.
It comes in a surface mount InSOP-C package type.
Yes, it includes internal dual-level thermal overload protection for safety.
Features such as adaptive dead time control and simultaneous conduction lockout enhance its reliability.
The supply current consumption is 12 mA, which enhances energy efficiency.
It supports an inverter power rating of up to 400 watts.
This motor driver IC has a pin count of 24.
