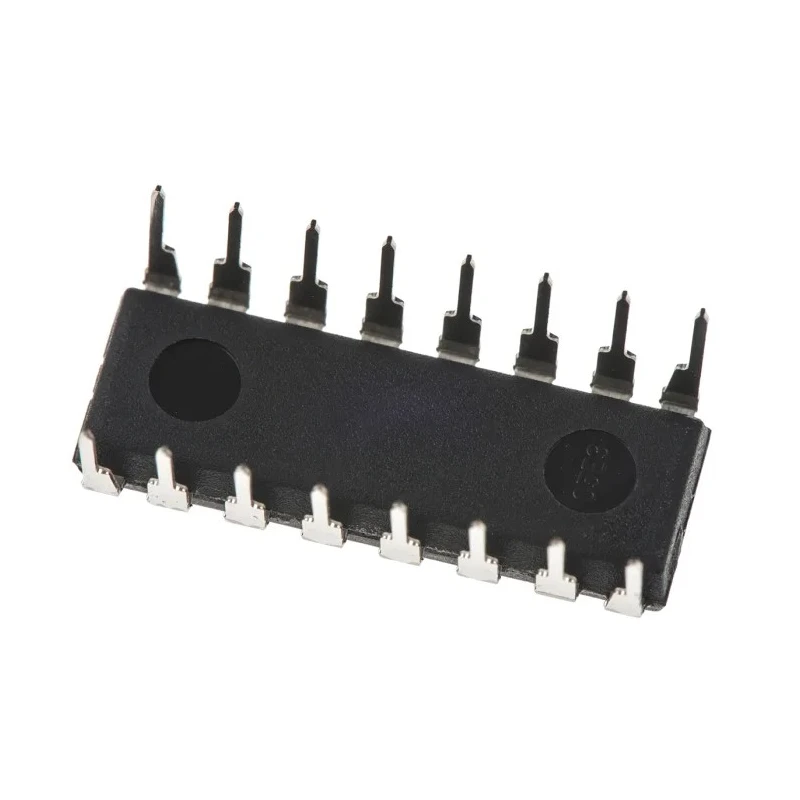

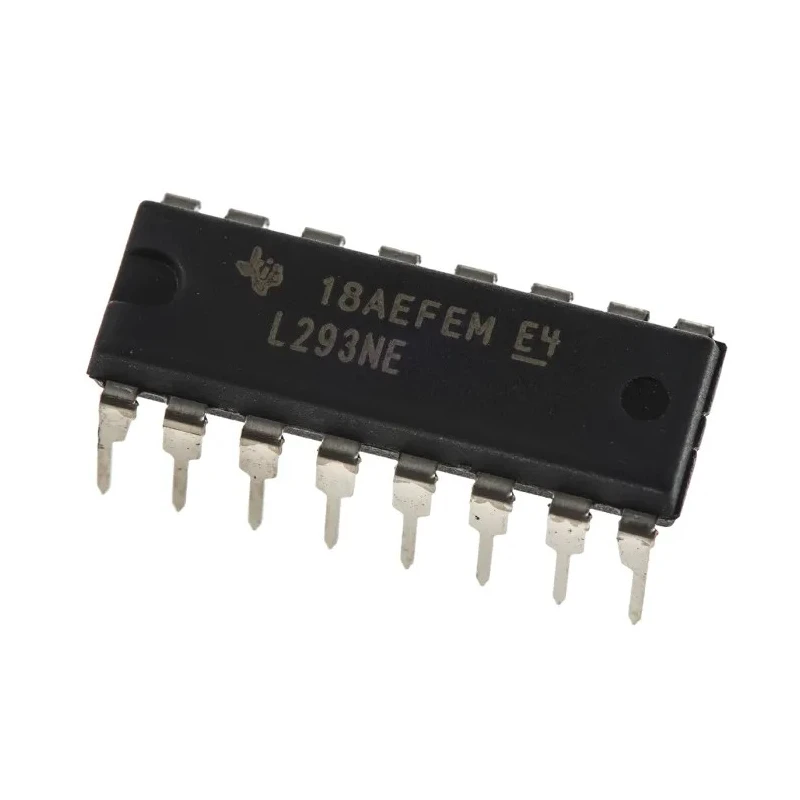

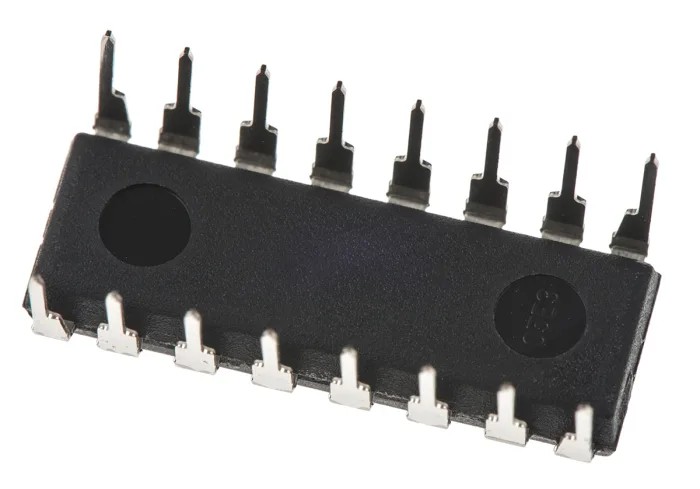

Texas Instruments Motor Driver IC Brushed DC Motor 16-Pin PDIP 36 V 2 A L293NE

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Motor Driver IC Brushed DC Motor 16-Pin PDIP 36 V 2 A L293NE

Name: Texas Instruments Motor Driver IC Brushed DC Motor 16-Pin PDIP 36 V 2 A L293NE
Brand: Texas Instruments
SKU: 187539
Price: 7.51 USD
Availability: InStock



Category Motor Driver IC Brand Texas Instruments Condition New

Specifications

Country of Origin	Taiwan
Brand	Texas Instruments
Height	4.57mm
Length	19.8mm
Model	L293NE
Width	6.35mm
Motor Type	Brushed DC Motor
Mount Type	Through Hole
Series	L293
Configuration	Bipolar
Output Current	2A
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Pin Count	16
Maximum Collector Emitter Voltage Vceo	36V
Maximum Supply Voltage	36V
Minimum Supply Voltage	4.5V
Supply Current	6mA
Maximum IGBT Collector Current	1A

Key Features

Operates with supply voltages from 4.5 V to 36 V.
Supports bipolar configuration for bidirectional motor control.
Maximum collector current rating of 1 A with output current capability up to 2 A.
Through-hole mounting with a 16-pin PDIP package for easy PCB integration.
Operating temperature range from 0°C to 70°C suitable for standard industrial environments.
Low quiescent supply current of 6 mA ensuring energy efficiency.
Ideal for driving relays, solenoids, DC and bipolar stepping motors.
Manufactured under the L293 series by Texas Instruments with high reliability.

Product Description

Texas Instruments L293NE is a robust Motor Driver IC designed for driving Brushed DC Motors with a bipolar configuration. It supports voltages up to 36 V and a maximum output current of 2 A, housed in a 16-pin PDIP through-hole package suitable for various electronic and industrial applications.

The device efficiently controls inductive loads such as relays, solenoids, DC motors, and bipolar stepping motors. Its operational supply voltage ranges from 4.5 V to 36 V with a low quiescent current of 6 mA, making it energy efficient and reliable for standard operating temperatures between 0°C and 70°C.

With compact dimensions of 19.8 mm length, 6.35 mm width, and 4.57 mm height, the L293NE facilitates straightforward PCB integration in embedded system designs. It is a member of the L293 series, renowned for enduring performance in motor driver applications.

The device is not compliant with automotive standards but meets the needs of general industrial motor control without specific certifications. Originating from Taiwan, Province Of China, the component assures quality manufacturing standards.

Operates between 4.5 V and 36 V supply voltage. Bipolar motor driver configuration. Maximum IGBT collector current of 1 A and output current of 2 A. 16-pin PDIP package with through-hole mount. Temperature operating range from 0°C to 70°C.

Compact physical size for easy PCB integration. Efficient low supply current consumption of 6 mA. Suitable for relays, solenoids, and stepping motor drives. This Motor Driver IC is ideal for electronics manufacturing, automation, robotics, and embedded systems requiring reliable brushed DC motor control.
