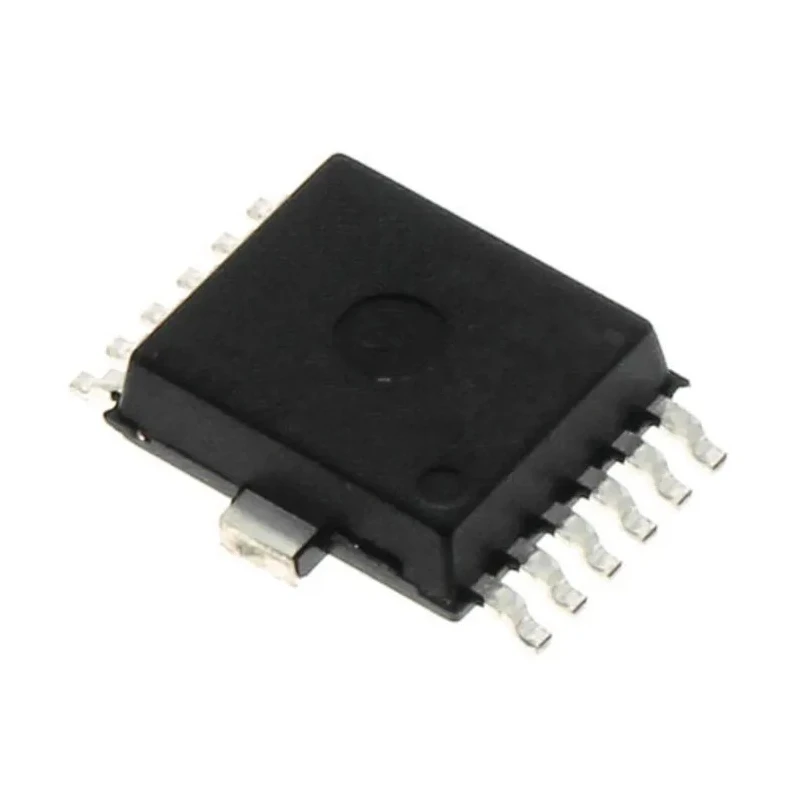

Infineon Brushless Motor Driver IC 28 V 6 A 12-Pin DSO TLE9201SGAUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Brushless Motor Driver IC 28 V 6 A 12-Pin DSO TLE9201SGAUMA1

Name: Infineon Brushless Motor Driver IC 28 V 6 A 12-Pin DSO TLE9201SGAUMA1
Brand: Infineon
SKU: 184386
Price: 3.11 USD
Availability: InStock



Category Motor Driver IC Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	2.35mm
Length	7.5mm
Model	TLE9201SGAUMA1
Width	6.4mm
Motor Type	Brushless
Mount Type	Surface
Series	TLE9201SGAU
Configuration	Half Bridge
Maximum Operating Temperature	150°C
Package Type	DSO
Minimum Operating Temperature	-40°C
Pin Count	12
Maximum Collector Emitter Voltage Vceo	28V
Automotive Standard	AEC-Q101
Maximum Supply Voltage	28V
Minimum Supply Voltage	5V
Supply Current	50μA
Maximum IGBT Collector Current	6A
Typical Switching Frequency	20kHz

Key Features

Designed for automotive and industrial applications requiring precise motor management.
Features half-bridge configuration suitable for brushless motors.
Offers short-circuit and over-temperature protection for enhanced safety.
Low standby current of 50 μA optimizes power consumption.
Supports a supply voltage range from 5 V up to 28 V.
Typical switching frequency of 20 kHz ensures smooth motor operation.
Compliant with automotive standard AEC-Q101 for reliability.
Compact DSO package with 12 pins facilitates surface mounting and PCB integration.

Product Description

Infineon TLE9201SGAUMA1 Brushless Motor Driver IC is engineered to provide robust and precise control for brushless motors, supporting automotive, industrial, and embedded applications. It operates efficiently at a maximum collector emitter voltage of 28 V and can handle IGBT collector currents up to 6 A.

Its half-bridge configuration enables effective motor driving capabilities, while features such as short-circuit and over-temperature protections ensure device longevity and operational safety. The device maintains a low standby current of just 50 μA, contributing to power-efficient designs.The TLE9201SGAUMA1 IC is designed for surface mounting, housed in a compact 12-pin DSO package measuring 7.5 mm in length, 6.4 mm in width, and 2.35 mm in height, facilitating dense PCB layouts.

It supports a broad supply voltage range from 5 V to 28 V and typically operates at a switching frequency of 20 kHz, suitable for smooth and responsive motor control.

Operating temperature spans from -40°C to 150°C enabling reliable usage even in demanding environmental conditions. Adhering to automotive standard AEC-Q101 underscores its quality and suitability for automotive systems.

Designed for automotive and industrial motor driving applications. Efficient control of brushless motors with half-bridge configuration. Integrated short-circuit and over-temperature protection mechanisms. Low standby current minimizes power consumption.

Wide supply voltage compatibility from 5 V up to 28 V. Operates typically at 20 kHz switching frequency for stable motor operation. Compact 12-pin DSO surface-mount package. Robust operating temperature range from -40°C to 150°C.

Complies with automotive standard AEC-Q101 for enhanced reliability and quality. This motor driver IC is well suited for use in industrial motor control, automotive electronics, and embedded system designs where precise motor management is essential.
