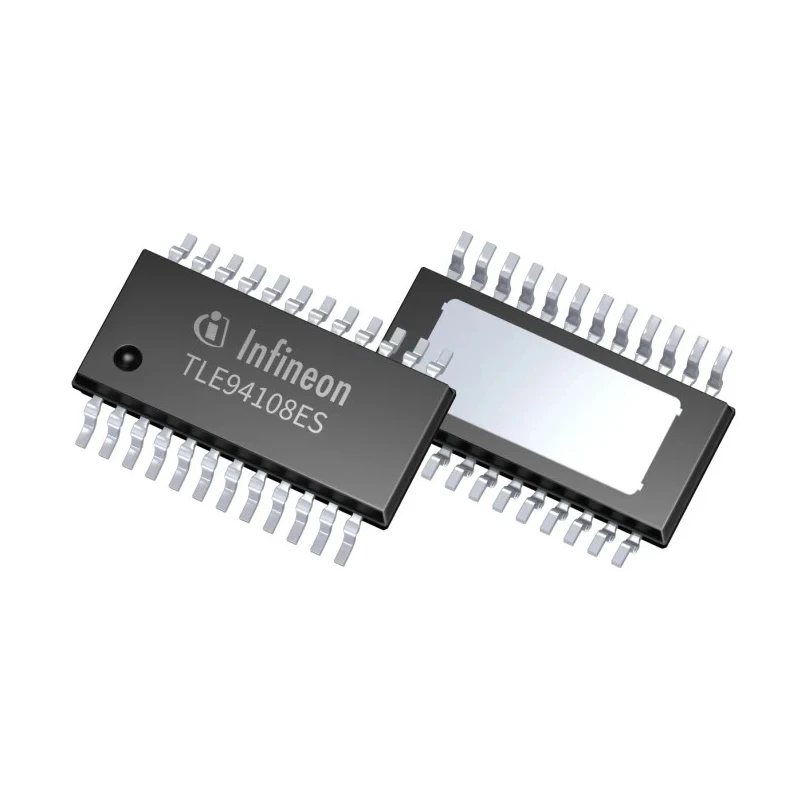

Infineon Motor Driver IC 2A Output Current 24-Pin PG-TSDSO-24 TLE94108ESXUMA1

Infineon TLE94108ESXUMA1 is a high-performance motor driver integrated circuit designed for industrial and automotive motor control solutions. This motor driver IC comes in a PG-TSDSO-24 surface mount package and supports an output current of 2A across eight outputs furnished by two integrated drivers. It operates within a voltage range of up to 40V supply and features fast switching times with both rise and fall times at 80 nanoseconds, enabling precise motor control and high-frequency PWM operation up to 25kHz.

Operating robustness is ensured over a wide junction temperature range from -40°C to 150°C, making it suitable for harsh industrial environments. The compact form factor with dimensions of 8.65mm length, 3.9mm width, and 1.15mm height allows efficient PCB layout and integration into various electronic systems.

This IC incorporates four half-bridge gate drivers accessible via a 24-bit Serial Peripheral Interface (SPI), designed for external N-channel MOSFETs compliant with efficient motor driving architectures. Although it does not comply with specific automotive standards, its electrical and thermal characteristics make it applicable for numerous power management and motor control applications in industrial automation, HVAC systems, and other manufacturing equipment.

Engineers benefit from the TLE94108ESXUMA1's balance of compact size, high output current, and fast switching capabilities to optimize performance in demanding embedded systems. This IC is part of Infineon's TLE family known for reliable and flexible power management solutions.

The IC includes two drivers supporting up to eight outputs. It provides fast switching times with 80ns rise and fall times. Designed to operate at minimum and maximum supply voltages of 40V. Supports PWM frequency up to 25kHz improving control precision.

Operates reliably in extreme temperature range from -40°C to 150°C junction temperature. Compact dimensions of 8.65mm length, 3.9mm width, and 1.15mm height. Surface mount package PG-TSDSO-24 enables easy PCB integration.

No automotive standards compliance but suitable for industrial motor control applications. Part of the TLE series with multiple MOSFET half-bridge gate drivers and 24-bit SPI interface. Enables efficient external N-channel MOSFET switching with robust electrical characteristics.
