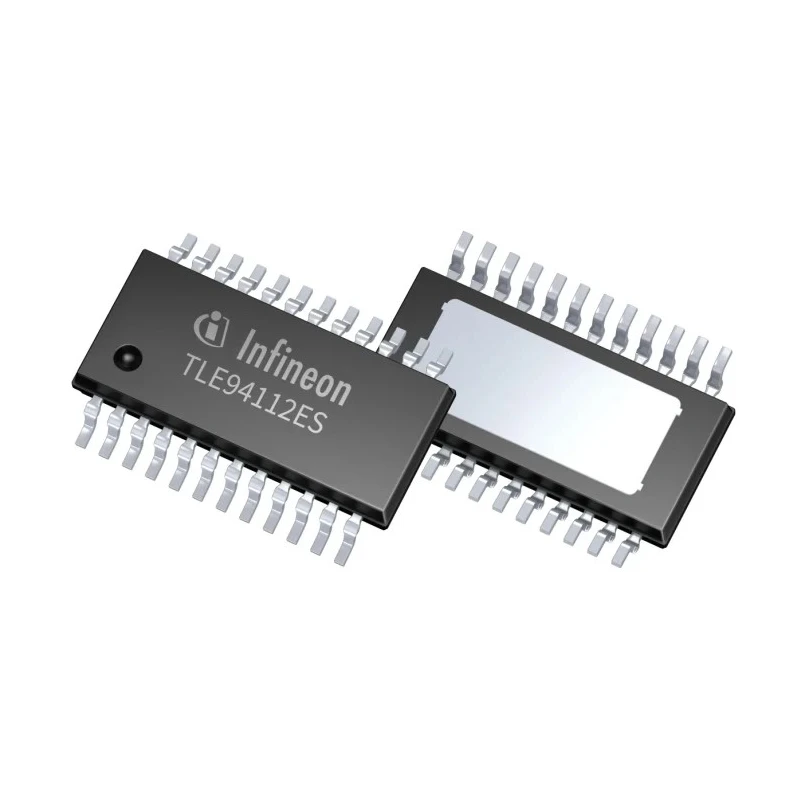

Infineon Motor Driver IC 12 Drivers, 2 A Output Current, 24-Pin PG-TSDSO-24 Package, 40 V Maximum Supply TLE94112ESXUMA1

Infineon TLE94112ESXUMA1 is a high-voltage motor driver integrated circuit designed for demanding electrical systems requiring robust and precise motor and actuator control. This device features 12 individual drivers with a maximum supply voltage and minimum supply voltage both rated at 40 V, allowing operation in high-voltage motor applications and actuators. Its 2 A output current capability supports moderate load driving, enabling effective control for industrial automation and robotics subsystems.

The IC is packaged in a compact 24-pin PG-TSDSO-24 surface-mount package, facilitating integration into space-constrained PCB designs. The device exhibits fast switching characteristics with 80 ns rise and fall times, which contribute to reduced switching losses and minimized electromagnetic interference. It is rated for operation within a broad temperature range from -40°C to 150°C, ensuring reliability in harsh industrial and automotive environments.

Measuring just 8.65 mm in length, 3.9 mm in width, and 1.15 mm in height, the TLE94112ESXUMA1 provides efficient multi-channel motor control in a small footprint. It is suitable for use in dual-actuator control applications, compact control boards, and driver stages for mid-voltage power modules. This motor driver IC is ideal for use in industrial automation equipment, robotics, and other systems requiring precise motor driver functionality.

Supports high-voltage motor systems with a maximum supply voltage of 40 V. Provides a 2 A output current suitable for moderate load-driving applications. Includes 12 individual drivers enabling multi-channel control in one device.

Surface-mount PG-TSDSO-24 package offers compact and convenient PCB mounting. Fast signal transitions with 80 ns rise and fall times reducing switching losses. Operates reliably under a wide temperature range from -40°C to 150°C.

Compact physical dimensions ensure space-saving PCB integration. Designed for motor control in industrial automation and robotics subsystems. Suitable for driver stages in mid-voltage power modules and compact control boards.
