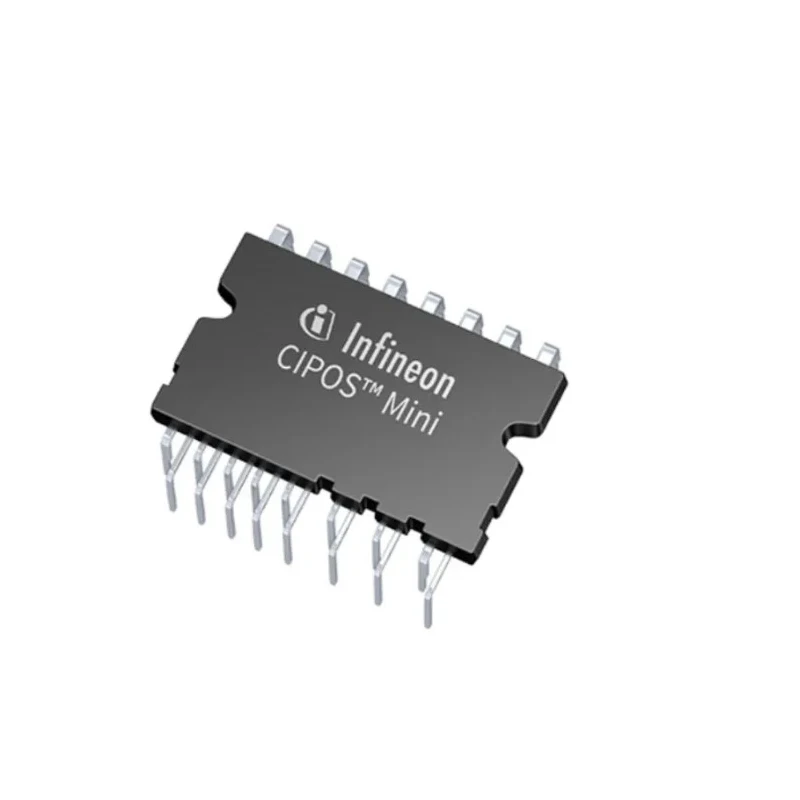

Infineon AC Motor Permanent Magnet Control Integrated Power System 600 V 10 A 24-Pin DIP IGCM10F60GAXKMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 3.1mm |
| Length | 33.11mm |
| Model | IGCM10F60GAXKMA1 |
| Width | 25.6mm |
| Motor Type | AC Motor, Permanent Magnet |
| Mount Type | Through Hole |
| Series | CIPOSTM |
| Configuration | 3 Phase |
| Output Current | 10A |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Maximum Collector Emitter Voltage Vceo | 600V |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 18.5V |
| Minimum Supply Voltage | 0mV |
| Maximum IGBT Collector Current | 10A |
| Typical Switching Frequency | 20kHz |
| Inverter Power Rating | 1200W |
Key Features
- Designed for controlling three phase AC and permanent magnet motors in variable speed drives.
- Features rugged SOI gate driver technology with stability against transient voltages.
- Includes reverse conducting IGBTs with monolithic body diodes for reliable switching.
- Supports over current shutdown and temperature monitoring functionality.
- Operates over a temperature range from -40°C to 150°C with typical switching frequency of 20 kHz.
- Offers under-voltage lockout protection on all channels to safeguard operation.
- Compact through hole DIP mounting with dimensions 33.11 mm length, 25.6 mm width, and 3.1 mm height.
- Complies with RoHS and automotive standard AEC-Q101 for quality and safety assurance.
Product Description
Infineon IGCM10F60GAXKMA1 is a control integrated power system designed specifically for 3 phase AC motor and permanent magnet motor control applications. This advanced power module integrates multiple power and control components to optimize reliability, reduce PCB size, and minimize overall system costs.
Operating at a maximum collector emitter voltage of 600 V and output current of 10 A, it supports inverter power ratings up to 1200 W. Its rugged Silicon on Insulator (SOI) gate driver technology ensures excellent stability against transient and negative voltages, enhancing long-term operational durability.
The device is packaged in a 24-pin dual inline package (DIP) designed for through hole mounting, with compact dimensions of 33.11 mm length, 25.6 mm width, and 3.1 mm height suitable for power electronics applications.
Key protective features include reverse conducting Insulated Gate Bipolar Transistors (IGBTs) with integrated body diodes, over current shutdown mechanisms, temperature monitoring, and under-voltage lockout across all channels. These built-in safeguards enable robust performance in harsh industrial environments.
This module is ideal for variable speed drives controlling household appliances such as refrigerators and dishwashers where precise motor speed and torque control are required. Designed for three phase AC and permanent magnet motor control.
Rugged SOI gate driver technology for enhanced stability. IGBTs with monolithic body diodes for reliable switching. Protective features including over current shutdown and temperature monitoring. Compact 24-pin DIP package for through hole mounting.
Operational temperature range from -40°C to 150°C. Compliant with RoHS and automotive AEC-Q101 standards. Optimized for appliance motor variable speed drive applications. Explore more power management and motor control integrated circuits on EnvMart to support your industrial, manufacturing, electronics design, and HVAC system projects.
Explore more products in our Motor Driver IC category.
