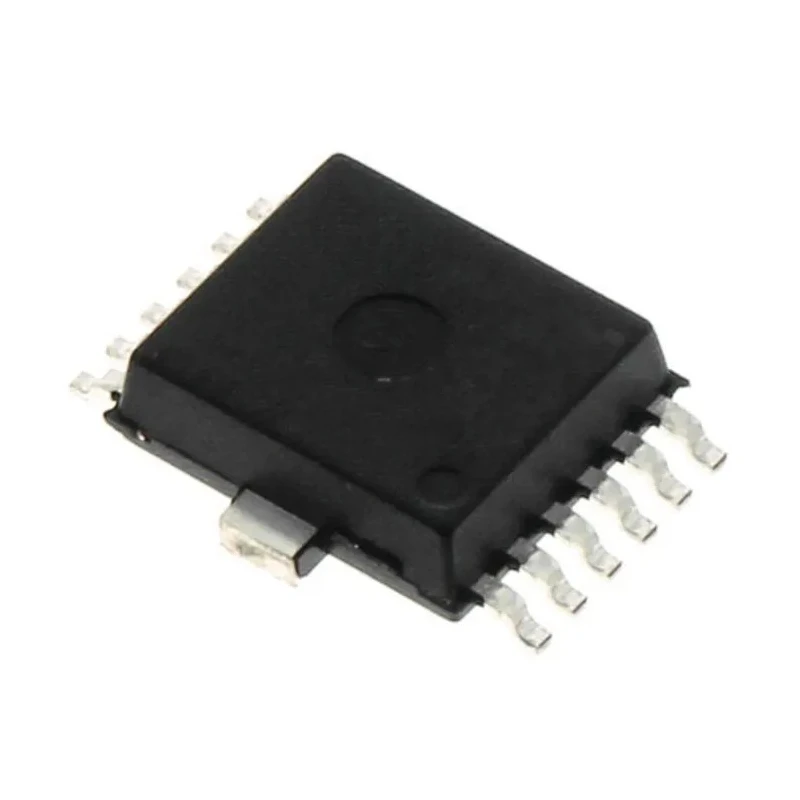

Infineon Brushless Motor Driver IC, 28 V, 6 A, 12-Pin DSO Surface Mount, Half Bridge TLE9201SGAUMA1

Infineon TLE9201SGAUMA1 is a brushless motor driver IC tailored for automotive and industrial use. It operates at a maximum collector-emitter voltage of 28 V and allows a maximum IGBT collector current of 6 A, making it capable of controlling various inductive loads including DC motors.

This IC features a half-bridge configuration in a compact 12-pin DSO surface mount package, facilitating space-efficient designs. Its robust operating temperature range extends from -40°C to 150°C, ensuring reliable performance in harsh environments.

Designed with protection features such as short-circuit and over-temperature safeguards, it helps maintain system integrity under fault conditions. The device operates at a typical switching frequency of 20 kHz, enabling smooth and efficient motor control.

The device consumes a low standby supply current of just 50μA, contributing to overall system energy efficiency. The under-voltage shutdown feature provides additional protection for the motor and associated electronics by preventing operation below safe voltage thresholds.

Its compliance with the automotive AEC-Q101 standard guarantees high reliability and quality suitable for automotive applications. With precise dimensions - length 7.5 mm, width 6.4 mm, and height 2.35 mm - this module can be integrated into compact PCB layouts.

Common applications include motor controllers for automotive, industrial automation, HVAC systems, and other fields requiring precise and reliable brushless DC motor management. Half-bridge configuration suitable for driving brushless DC motors.

Surface mount package type: 12-pin DSO for compact installation. Wide operating temperature range from -40°C to 150°C. Low standby current with 50μA supply current for energy efficiency. Short-circuit and over-temperature protection for enhanced reliability.

Typical switching frequency of 20 kHz for smooth motor control. Complies with Automotive Standard AEC-Q101. Supports supply voltage range from 5 V minimum to 28 V maximum. Compact dimensions: 7.5 mm length, 6.4 mm width, and 2.35 mm height.

Includes under-voltage shutdown feature to protect motor and circuitry. Discover more high-quality semiconductor and Motor Driver ICs at EnvMart for your industrial and automotive projects.
