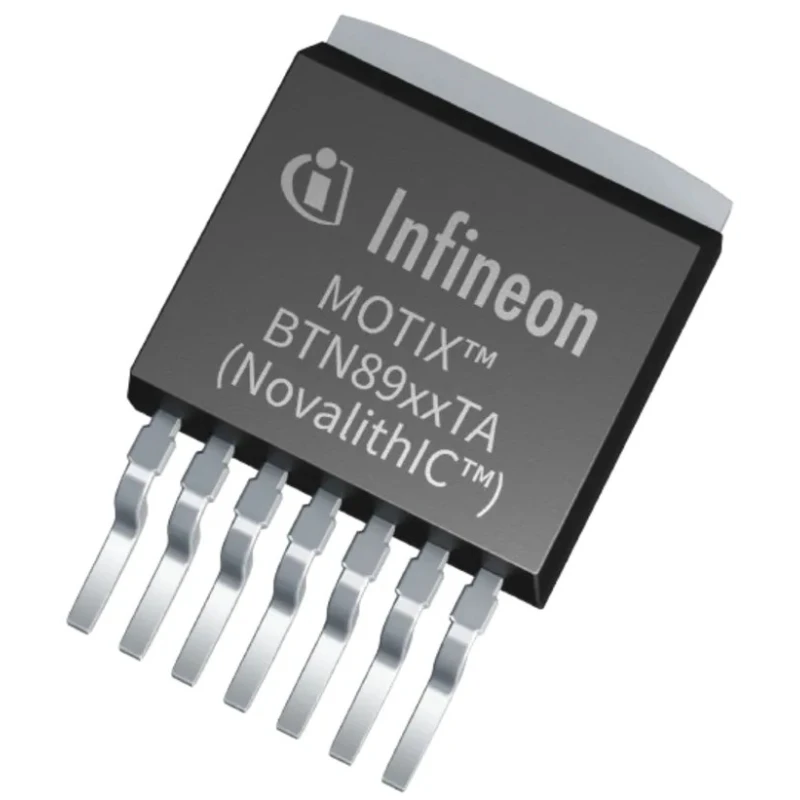

Infineon Brushless Motor Driver IC 40 V 30 A 7-Pin TO-263 Package BTN8962TAAUMA1

Infineon BTN8962TAAUMA1 is a brushless motor driver IC featuring a half bridge configuration designed to efficiently control brushless DC (BLDC) motors. It operates with a maximum IGBT collector current of 30 A and a collector emitter voltage of up to 40 V, packaged in a compact 7-pin TO-263 surface mount package that supports high PWM frequencies and fast switching speed. This motor driver IC draws a supply current of 3.3 mA and supports a supply voltage range of 8 V to 18 V.

The device integrates IGBT technology which offers low on-state resistance, thereby enhancing efficiency during motor operation. The built-in current limitation function effectively manages power dissipation during overload by switching MOSFETs accordingly to protect the device and the motor. Additionally, the driver offers adjustable slew rates to minimize electromagnetic interference, which is critical for maintaining operational stability in automotive and industrial environments.

Designed to meet the automotive standard AEC-Q101, the BTN8962TAAUMA1 operates reliably across a wide temperature range from -40°C to 150°C. Its surface mount design makes it suitable for compact electronic assemblies where PCB space is limited. This IC is ideal for applications requiring precise PWM modulation such as robotic drives, industrial machinery, and automotive motor control systems.

Key features include advanced protection against overtemperature and undervoltage conditions, which enhances device safety and longevity. The device’s compatibility with logic-level inputs facilitates straightforward integration into existing control systems in various configurations, including half and full bridges.

Supports high PWM frequencies with enhanced switching speed. Integrated current limitation reduces power dissipation during overload. IGBT technology ensures low on-state resistance for increased efficiency. Adjustable slew rates optimise electromagnetic interference levels.

Comprehensive protection against overtemperature and undervoltage conditions. AEC-Q101 automotive standard compliant for robust automotive applications. Wide operating temperature range from -40°C to 150°C. Surface mount TO-263 package for space-efficient PCB layouts.

Suitable for automotive, industrial motor control, robotics, and automation technology. Explore a wide range of advanced Motor Driver ICs and semiconductor components to suit your industrial, automotive, and manufacturing needs at EnvMart.
