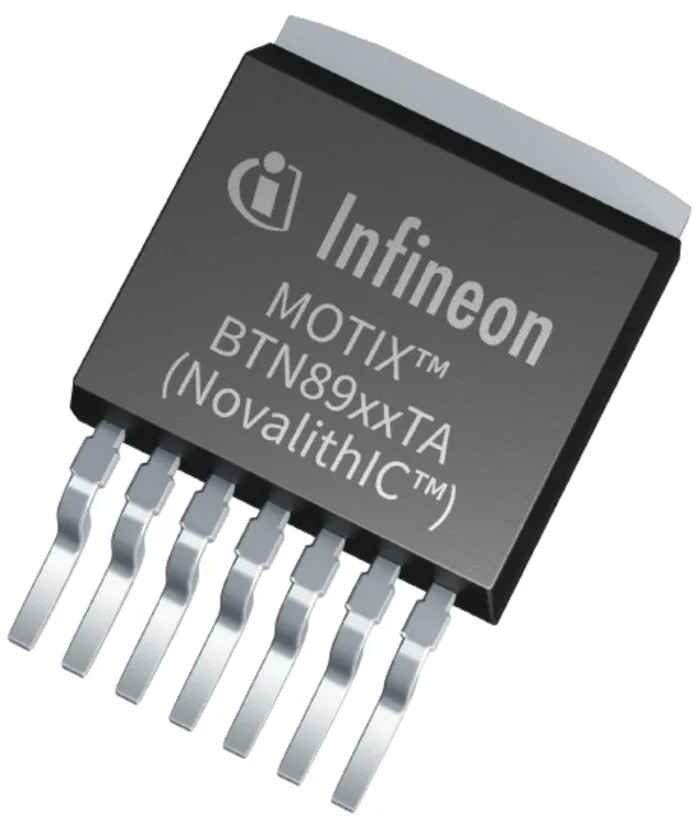

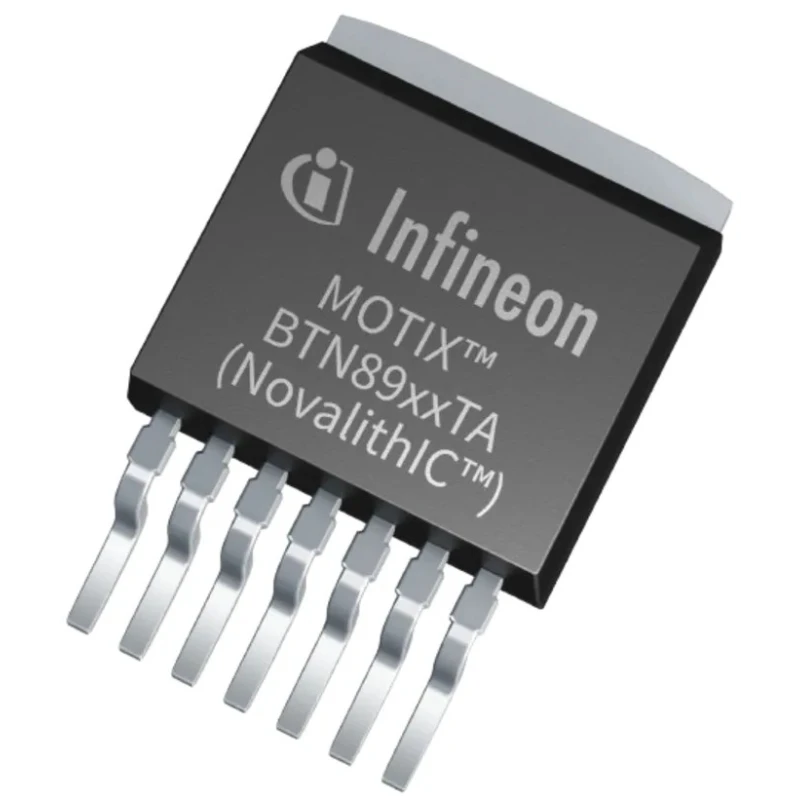

Infineon Brushless Motor Driver IC 40 V 30 A 7-Pin Surface Mount TO-263 BTN8962TAAUMA1

Infineon BTN8962TAAUMA1 is a brushless motor driver IC designed to provide efficient and precise motor control, specifically for BLDC motors in automotive and industrial systems. It features a half bridge configuration that supports a maximum IGBT collector current of 30 A and a maximum collector-emitter voltage of 40 V. This IC is housed in a compact 7-pin TO-263 surface mount package measuring 10 mm in length, 9.25 mm in width, and 4.4 mm in height.

The device operates reliably over a temperature range of -40°C to 150°C, making it suitable for demanding environments and automotive applications compliant with the AEC-Q101 standard. Its integrated current limitation mechanism reduces power dissipation during overload situations by employing switched mode current limitation techniques, enhancing device protection.

The use of IGBT technology offers a low on-state resistance, increasing overall efficiency, while adjustable slew rates help optimize electromagnetic interference (EMI) levels. Logic-level inputs enable easy integration into existing motor control systems with minimal wiring complexity. This motor driver IC supports high PWM frequencies, allowing precise and efficient modulation of brushless DC motors.

Surface mount construction reduces assembly time and PCB space requirements, making this IC ideal for compact electronic designs with stringent space constraints. Typical applications include automotive motor control, industrial automation requiring high current and precise PWM modulation, robotic drives, and intricate mechanical control systems.

Supports high PWM frequencies with enhanced switching speed. Integrated current limitation reduces power dissipation during overload. IGBT technology ensures low on-state resistance for increased efficiency. Adjustable slew rates optimise electromagnetic interference levels.

Comprehensive protection against overtemperature and undervoltage conditions. Suitable for automotive and industrial motor control systems. Compact and surface mount TO-263 7-pin package. Wide operating temperature range from -40°C to 150°C.

Easy integration with logic-level inputs. Complies with AEC-Q101 automotive standard.

This brushless motor driver IC is a reliable solution for industrial, automotive, robotics, and automation applications where efficient and precise motor control is paramount. Its robust design and advanced protection features ensure long-term durability and optimal performance. Explore more products in the Motor Driver IC category at EnvMart for related components designed to meet various motor control system needs.
