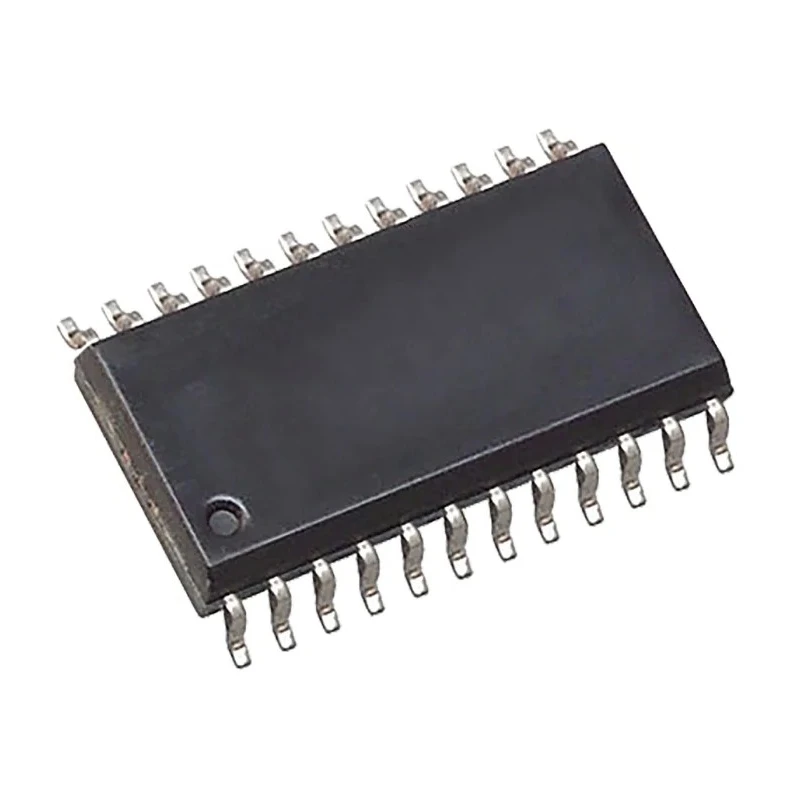

STMicroelectronics Brushless DC Motor Driver IC 3 Phase 52 V 2.8 A 24-Pin SOIC L6235D
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.35mm |
| Length | 15.6mm |
| Model | L6235D |
| Width | 7.6mm |
| Motor Type | Brushless DC Motor |
| Mount Type | Surface |
| Series | L6235 |
| Configuration | 3 Phase |
| Output Current | 5.6A |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Maximum Collector Emitter Voltage Vceo | 52V |
| Maximum Supply Voltage | 52V |
| Minimum Supply Voltage | 12V |
| Supply Current | 2.8A |
| Maximum IGBT Collector Current | 2.8A |
| Typical Switching Frequency | 100kHz |
Key Features
- Designed for brushless DC motors with integrated 3 phase bridge drivers.
- Operates at a maximum collector emitter voltage of 52 V and collector current of 2.8 A.
- Supports PWM current control and Hall sensor decoding for autonomous motor operation.
- Surface mount SOIC package with 24 pins ensures compact PCB integration.
- Built-in protections against overtemperature, overcurrent, and undervoltage conditions enhance reliability.
- Typical switching frequency of 100 kHz enables efficient motor speed control.
- Operating temperature range from -40°C to 150°C for industrial environments.
Product Description
STMicroelectronics L6235D is a high-performance brushless DC motor driver IC designed to drive 3 phase motors with high precision and robustness. It integrates power drivers arranged as a three phase bridge along with decoding logic for Hall-effect sensors to facilitate autonomous motor control via microcontroller commands.
This IC delivers a maximum collector emitter voltage of 52 V and a collector current up to 2.8 A, supporting motors that require substantial power within compact embedded applications. The device operates with a typical switching frequency of 100 kHz, ensuring efficient motor speed modulation and smooth performance.
The L6235D is housed in a 24-pin SOIC surface mount package, measuring 15.6 mm length, 7.6 mm width, and 2.35 mm height, making it suitable for dense PCB layouts in industrial, HVAC, manufacturing, and robotic motor control systems.
Robust protections are built into the IC, including safeguards against overtemperature, overcurrent, and undervoltage scenarios, ensuring durability and preventing damage under harsh operational conditions. The device supports supply voltages from 12 V to 52 V and can operate reliably over the temperature range of -40°C to 150°C, catering to demanding environmental requirements.
Typical applications include industrial automation, motor controller modules, embedded drives, and power management circuits needing precise and reliable brushless DC motor control.
Designed for brushless DC motors with integrated 3 phase bridge drivers. Operates at a maximum collector emitter voltage of 52 V and collector current of 2.8 A. Supports PWM current control and Hall sensor decoding for autonomous motor operation.
Surface mount SOIC package with 24 pins ensures compact PCB integration. Built-in protections against overtemperature, overcurrent, and undervoltage conditions enhance reliability. Typical switching frequency of 100 kHz enables efficient motor speed control.
Operating temperature range from -40°C to 150°C for industrial environments. Compact dimensions: Length 15.6 mm, Width 7.6 mm, Height 2.35 mm. Explore more Motor Driver ICs by STMicroelectronics on EnvMart for advanced industrial and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L6235D operates at a maximum collector emitter voltage of 52 V.
It has a maximum output current rating of 2.8 A.
This model is specifically designed for brushless DC motors with integrated 3 phase bridge drivers.
The typical switching frequency for this motor driver IC is 100 kHz.
The dimensions of the L6235D are 15.6 mm in length, 7.6 mm in width, and 2.35 mm in height.
It operates reliably over a temperature range from -40°C to 150°C.
This model is housed in a 24-pin SOIC surface mount package.
The L6235D includes protections against overtemperature, overcurrent, and undervoltage conditions.
It supports supply voltages from 12 V to 52 V.
It supports PWM current control and Hall sensor decoding for autonomous motor operation.
Typical applications include industrial automation, motor controller modules, and embedded drives.
The maximum IGBT collector current for this model is 2.8 A.
