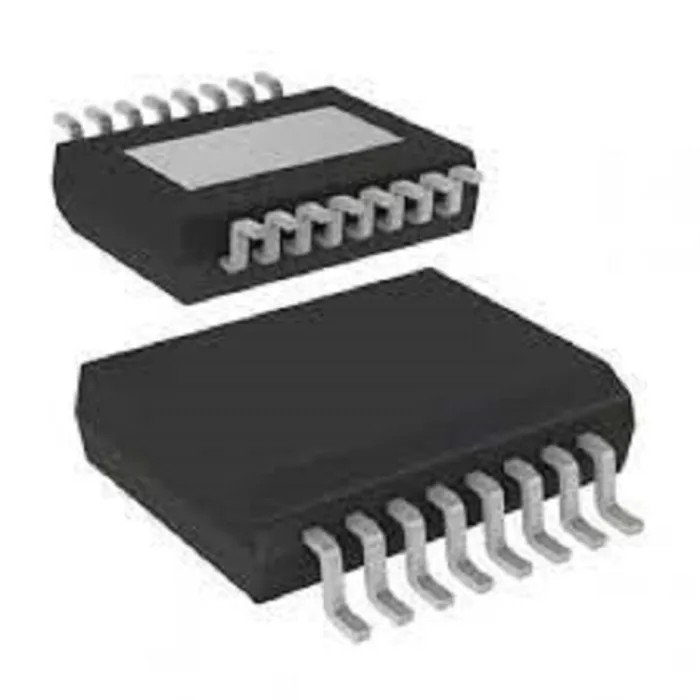

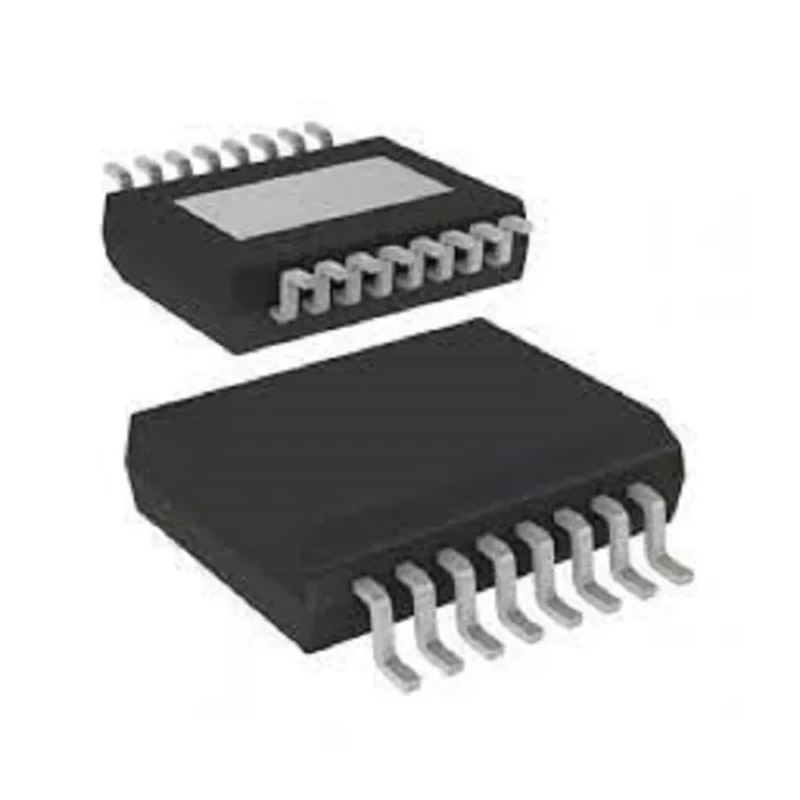

STMicroelectronics DC Motor Driver IC PowerSSO-36 36-Pin H Bridge 6V-28V 48mA Output L99H02XPTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics DC Motor Driver IC PowerSSO-36 36-Pin H Bridge 6V-28V 48mA Output L99H02XPTR

Name: STMicroelectronics DC Motor Driver IC PowerSSO-36 36-Pin H Bridge 6V-28V 48mA Output L99H02XPTR
Brand: STMicroelectronics
SKU: 203556
Price: 6.45 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	10.5mm
Model	L99H02XPTR
Width	10.5mm
Motor Type	DC Motor
Mount Type	Surface
Series	L99H02
Configuration	H Bridge
Output Current	48mA
Maximum Operating Temperature	150°C
Package Type	PowerSSO-36
Minimum Operating Temperature	-40°C
Pin Count	36
Automotive Standard	AEC-Q100
Maximum Supply Voltage	28V
Minimum Supply Voltage	6V
Supply Current	18mA

Key Features

Operates at supply voltages from 6 V to 28 V.
Supports output current up to 48 mA with an 18 mA operating supply current.
Includes integrated SPI interface for device control and diagnostic feedback.
Features a configurable current sense amplifier and thermal sensor interface for external MOSFETs.
AEC-Q100 qualified for automotive-grade reliability.
Compact dimensions of 10.5 mm x 10.5 mm x 2.45 mm for space-saving PCB design.
Implements a two-stage charge pump allowing 100% duty cycle operation with PWM frequencies up to 30 kHz.
Provides full RDSon drive down to 6 V for standard level threshold MOSFETs.

Product Description

STMicroelectronics L99H02XPTR is a high-reliability DC Motor Driver IC designed to control 4 external N-channel MOSFETs arranged in an H-bridge configuration. It is ideally suited for automotive motor-driving applications requiring precise current control and diagnostic capabilities.

Operating with a supply voltage range from 6 V to 28 V, this device features an integrated two-stage charge pump that supports PWM operation at frequencies up to 30 kHz with 100% duty cycle capability. It delivers an output current of up to 48 mA while consuming a supply current of 18 mA.

The integrated SPI interface allows comprehensive control and diagnostic feedback, enhancing system monitoring and safety. Additionally, a configurable current sense amplifier is embedded to enable precise current measurement, and an interface pin is available for thermal sensor monitoring of external MOSFETs.

Physically, the device is packaged in a compact PowerSSO-36 form factor (10.5 mm length and width, 2.45 mm height), facilitating efficient PCB layouts. It is automotive-qualified to AEC-Q100 standards, ensuring robustness in harsh operating environments. Key features include a charge pump output for driving external reverse battery NMOSFET protection and limited charge pump current to protect system components.

This motor driver IC enables reliable and efficient motor control in automotive and industrial systems, suitable for applications including powertrain, HVAC systems, and other electromechanical actuators.

Operates within extended temperature range from -40°C to 150°C. Supports full RDSon drive capability down to 6 V for enhanced efficiency. Offers programmable power management including free wheeling and sensing circuitry.

Includes embedded thermal sensing for improved system safety and diagnostics. The L99H02XPTR by STMicroelectronics exemplifies advanced motor control technology designed to meet stringent automotive application requirements.
