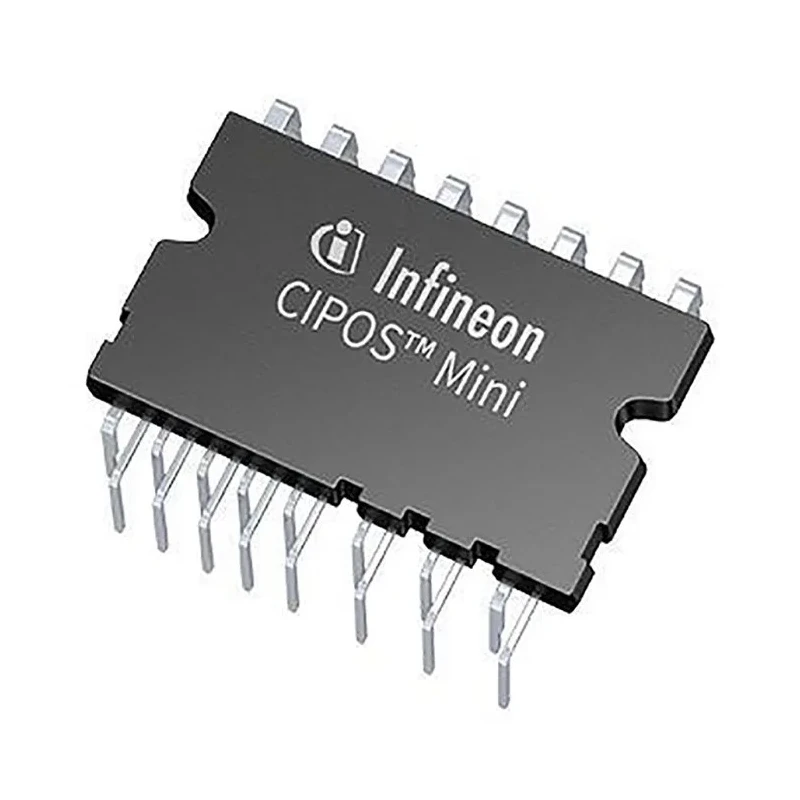

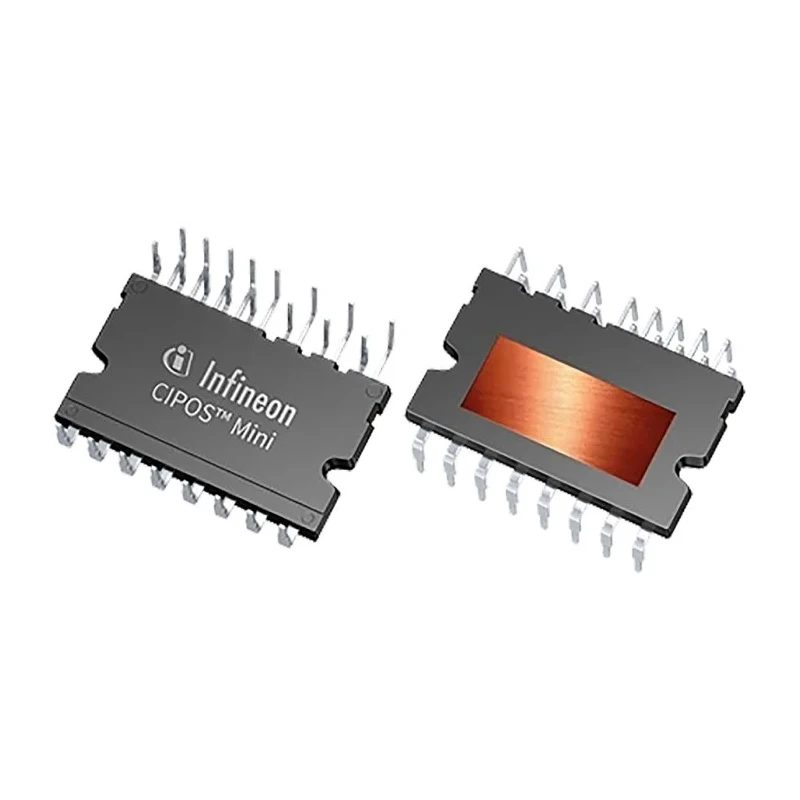

Infineon AC Motor Permanent Magnet Motor Driver IC 2.8V 24A 24-Pin DIP IKCM15H60GAXKMA2

Infineon IKCM15H60GAXKMA2 is an advanced AC Motor Permanent Magnet Motor Driver IC designed for 3-phase motor control applications. Packaged in a 24-pin DIP form factor, this driver IC supports efficient and reliable operation of permanent magnet AC motors commonly used in home appliances, fan and pump applications.

This Intelligent Power Module (IPM) in the CIPOS family delivers superior power density with ruggedness and system reliability. It features a maximum IGBT collector current of 24 A and a collector emitter voltage rating of 2.8 V, making it suitable for motor loads up to 1200 W inverter power rating. The device operates at a typical switching frequency of 20 kHz and covers a wide operating temperature range from -40°C to 150°C, ensuring stable performance in varied industrial environments.

The IKCM15H60GAXKMA2 module uses through hole mounting and has compact physical dimensions, which facilitate integration in motor control circuit designs. Its compliance with automotive standard AEC-Q101 demonstrates its high reliability for automotive and industrial usage.

This motor driver IC is ideal for industrial, home appliance, HVAC, and manufacturing motor control systems requiring compact, energy-efficient, and rugged power modules. Designed for 3-phase permanent magnet AC motors. High current and voltage ratings for demanding motor applications.

Robust thermal performance from -40°C to 150°C. Compact DIP package for easy PCB mounting. Low supply current for energy-efficient operation. Automotive-grade quality and standards compliance. Suitable for industrial, HVAC, and home appliance motors.

Enables enhanced motor system performance and energy savings. Part of Infineon's CIPOS family of Intelligent Power Modules. Explore a broad range of Motor Driver ICs and industrial electronic components at EnvMart to meet your motor control system requirements.
