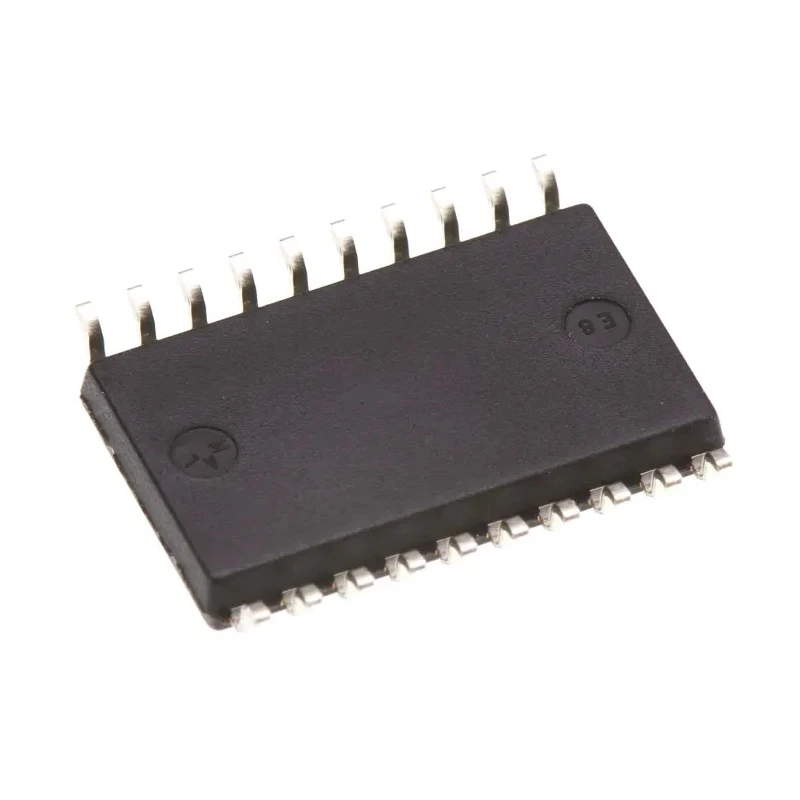

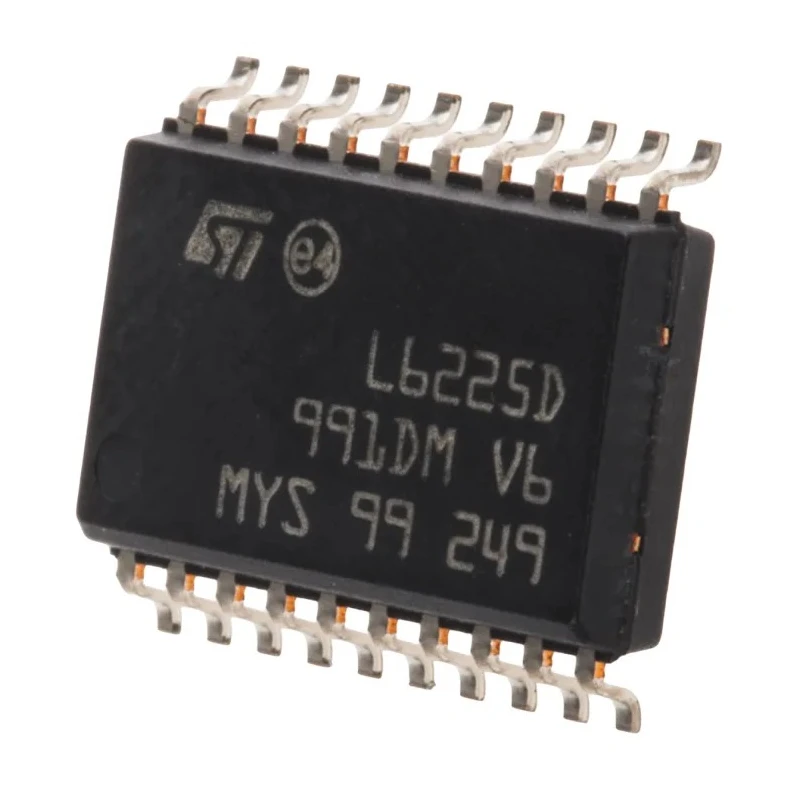

STMicroelectronics Brushed DC Motor Driver IC Full Bridge 52 V 1.4 A 20-Pin SOIC L6225D

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Brushed DC Motor Driver IC Full Bridge 52 V 1.4 A 20-Pin SOIC L6225D

Name: STMicroelectronics Brushed DC Motor Driver IC Full Bridge 52 V 1.4 A 20-Pin SOIC L6225D
Brand: STMicroelectronics
SKU: 182378
Price: 8.31 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.35mm
Length	13mm
Model	L6225D
Width	7.6mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	L6225
Configuration	Full Bridge
Output Current	2.8A
Maximum Operating Temperature	150°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	20
Maximum Collector Emitter Voltage Vceo	52V
Maximum Supply Voltage	52V
Minimum Supply Voltage	8V
Supply Current	1.4A
Maximum IGBT Collector Current	1.4A
Typical Switching Frequency	100kHz

Key Features

Operates at a typical switching frequency of 100 kHz for precise motor operation.
Supports minimum supply voltage of 8 V and maximum supply voltage of 52 V.
Designed with a 20-pin SOIC surface mount package for easy PCB integration.
Functions in an operating temperature range between -40°C and 150°C.
Provides output current capability of up to 2.8 A for robust motor driving.
Ideal for use with microcontrollers, DSPs, or FPGAs in motor and motion control systems.
Does not include automotive standards certification but is suitable for general industrial applications.

Product Description

STMicroelectronics L6225D is a high-performance Brushed DC Motor Driver IC designed to provide full bridge motor driving capabilities. With a maximum collector emitter voltage (Vceo) of 52 V and maximum IGBT collector current of 1.4 A, it efficiently controls brushed DC motors in industrial and embedded applications.

This motor driver IC comes in a 20-pin SOIC surface mount package, allowing easy integration into compact circuit boards. It operates within a broad supply voltage range from 8 V to 52 V and features a typical switching frequency of 100 kHz, ensuring responsive and smooth motor control.

The L6225D supports output currents up to 2.8 A, making it suitable for driving moderately sized motors used in automation, robotics, and other motor control systems involving microcontrollers, DSPs, or FPGA devices. Operating temperature range is from -40°C to 150°C, making it reliable in harsh industrial environments.

With compact dimensions of 13 mm length, 7.6 mm width, and 2.35 mm height, this IC enables space-efficient designs. Although it does not hold automotive standard approvals, it remains a versatile choice for various industrial, commercial, and laboratory motor control tasks.

Operates with full bridge configuration to effectively control brushed DC motors. Surface mount type in SOIC package for standard PCB assembly. Compatible with multiple input logic systems including microcontrollers and DSPs.

Ensures stable motor operations with broad voltage and current capabilities. Robust temperature range supports demanding industrial conditions. Explore more Motor Driver ICs and related semiconductor components at EnvMart for your industrial and electronic applications.
