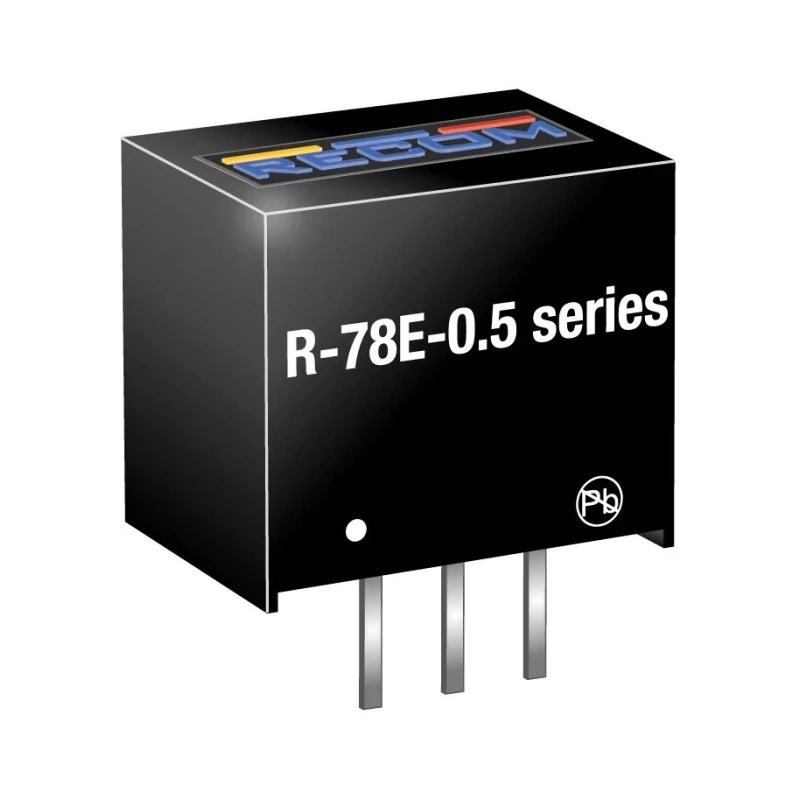

Recom Switching Regulator Through Hole 15V DC Output 28V DC Input 500mA 7.5W TO-220 R-78E15-0.5

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Regulator Through Hole 15V DC Output 28V DC Input 500mA 7.5W TO-220 R-78E15-0.5

Name: Recom Switching Regulator Through Hole 15V DC Output 28V DC Input 500mA 7.5W TO-220 R-78E15-0.5
Brand: Recom
SKU: 140743
Price: 6.37 USD
Availability: InStock



Category Switching Regulator Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / Switching Regulators Recom Switching Regulator, Through Hole, 15V d
Brand	Recom
Power	7.5W
Efficiency	95%
Length	11.6mm
Model	R-78E15-0.5
Depth	10.4mm
Gross Weight	2g
Width	10.4mm
Mount Type	Through Hole
Series	R-78E-0.5
Output Current	500mA
Maximum Operating Temperature	85°C
Package Type	TO-220
Load Regulation	±1 %
Minimum Operating Temperature	-40°C
MTBF	2182000h
Number of outputs	1
Ripple and Noise	70mV Pk-Pk
Maximum Input Voltage	28V dc
Line Regulation	±0.5 %
Standards/Approvals	RoHS
Minimum Input Voltage	18V
Output Voltage 1	15V dc

Key Features

Operates efficiently with up to 95% efficiency to conserve energy.
Through-hole mounting ensures secure installation in PCB assemblies.
Maintains stable output voltage with ±0.5% line regulation.
Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
Compact dimensions of 11.6mm length, 10.4mm width, and 10.4mm depth fit small devices.
MTBF rated at 2,182,000 hours for exceptional long-term reliability.
Includes protection against short circuits and overload conditions.
High ripple and noise performance with 70mV peak-to-peak rating.

Product Description

Recom R-78E15-0.5 is a high-performance switching regulator designed to step down DC voltages from 18V to 28V input to a stable 15V DC output at 500mA current. Featuring a through-hole mounting in a TO-220 package, it enables robust electrical connections and optimal thermal dissipation.

This regulator operates with an efficiency of up to 95%, minimizing power loss and heat generation. Its line regulation of ±0.5% ensures a consistent voltage supply even with input voltage variations, making it ideal for sensitive electronic applications.

With a wide operating temperature range from -40°C to 85°C, it is suitable for use in harsh industrial and commercial environments, including engineering workshops, robotics systems, and production lines.

The compact size of the unit, measuring 11.6mm in length, 10.4mm in width, and 10.4mm in depth, allows integration into space-constrained devices.

Designed for reliability, it boasts a mean time between failures (MTBF) of approximately 2.18 million hours. Built-in protections against short circuits and overload conditions help prevent equipment damage and operational downtime.

High energy efficiency of 95% reduces operational costs. Reliable through-hole mounting designed for vibration and mechanical stability. Stable voltage output with minimal ripple and noise. Wide temperature tolerance for industrial-grade applications.

Compact TO-220 package for easy incorporation into electronic designs.

This switching regulator is a dependable solution for power management in electronic components, power supplies, voltage conversion needs, and industrial automation systems. Designed and manufactured in Taiwan, it complies with RoHS environmental standards.
