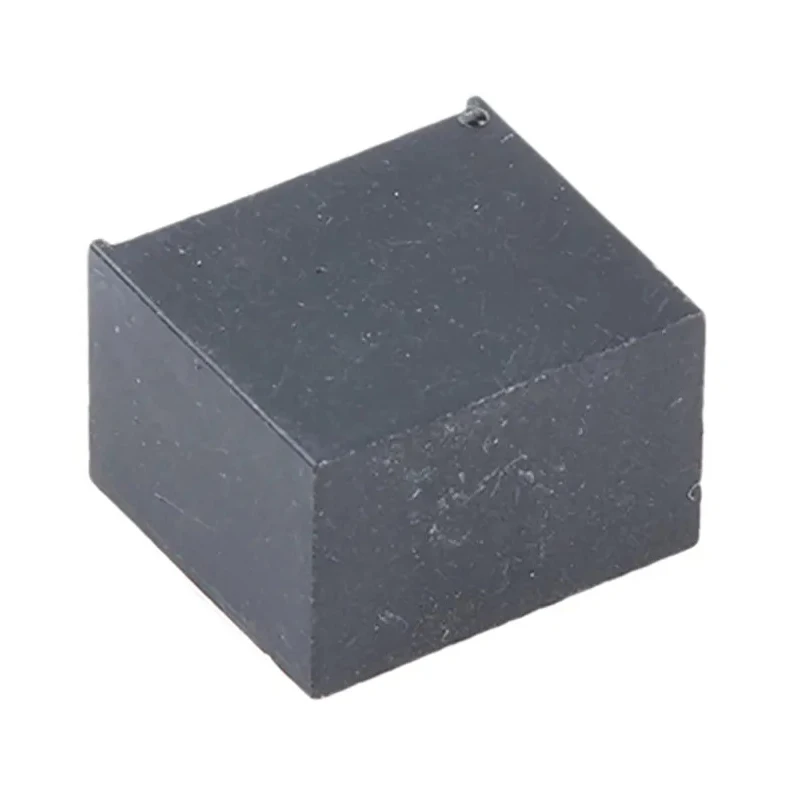

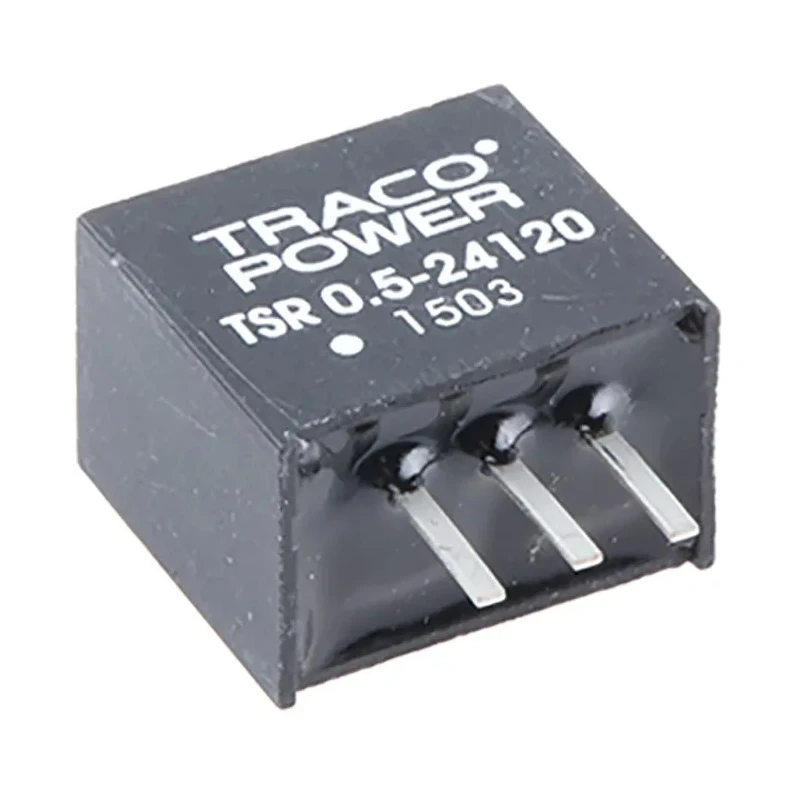

TRACOPOWER Switching Regulator Through Hole SIP-3 Package 12V DC Output 500mA 97% Efficiency TSR 0.5-24120
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 97% |
| Length | 11.5mm |
| Model | TSR 0.5-24120 |
| Depth | 10.2mm |
| Gross Weight | 2g |
| Width | 7.55mm |
| Mount Type | Through Hole |
| Series | TSR 0.5 |
| Output Current | 500mA |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP-3 |
| Load Regulation | ±0.4 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Ripple and Noise | 40mV Pk-Pk |
| Maximum Input Voltage | 32V dc |
| Line Regulation | ±0.2 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 15V |
| Output Voltage 1 | 12V dc |
Key Features
- Features through-hole mounting for vibration-resistant and permanent installation.
- High efficiency of 97% ensures minimal energy loss during voltage conversion.
- Output voltage is a stable 12V DC with output current up to 500mA.
- Wide input voltage range from 15V to 32V DC suitable for diverse power sources.
- Ripple and noise maintained at 40mV Pk-Pk for clean DC output.
- Operating temperature range from -40°C to 90°C supports harsh environments.
- Line regulation of ±0.2% and load regulation of ±0.4% for stable voltage output.
- Constructed with UL 94-V0 rated material for fire safety and self-extinguishing properties.
Product Description
TRACOPOWER TSR 0.5-24120 switching regulator is a through-hole mounted SIP-3 package device providing a regulated 12V DC output at 500mA output current with high efficiency of 97%. It is designed to convert input voltages ranging from 15V to 32V DC into a stable low-power output voltage suitable for a variety of industrial and electronic applications.
This regulator features low ripple voltage of 40mV peak-to-peak, maintaining signal integrity in sensitive electronic circuits. Thermal performance supports operation between -40°C and +90°C, making it robust for factory automation, safety technology, IT infrastructure, and embedded electronics.
The device offers excellent line and load regulation values of ±0.2% and ±0.4% respectively, ensuring stable output voltage under varying load and input conditions. The physical compactness with dimensions of 11.5 mm length, 7.55 mm width, and 10.2 mm depth allows integration into space-constrained PCB layouts.
The construction material is UL 94-V0 rated providing fire safety, making it suitable for safety-critical and industrial environments. It has an MTBF of 2 million hours, promising reliability and long service life.
Through-hole mounting for secure and vibration-proof installation. High efficiency maximizes input power utilization. Wide input voltage specifications covering multiple power supply conditions. Low output ripple contributing to circuit performance.
Wide temperature operation range for varied environments. Compact and lightweight with only 2 g weight.
Applications include factory automation, safety technology, IT services, and other low-power industrial electronics. This switching regulator is a dependable component for stepping down DC voltages efficiently and safely.
Explore more Switching Regulators and power supply solutions at EnvMart for quality and trusted components.
