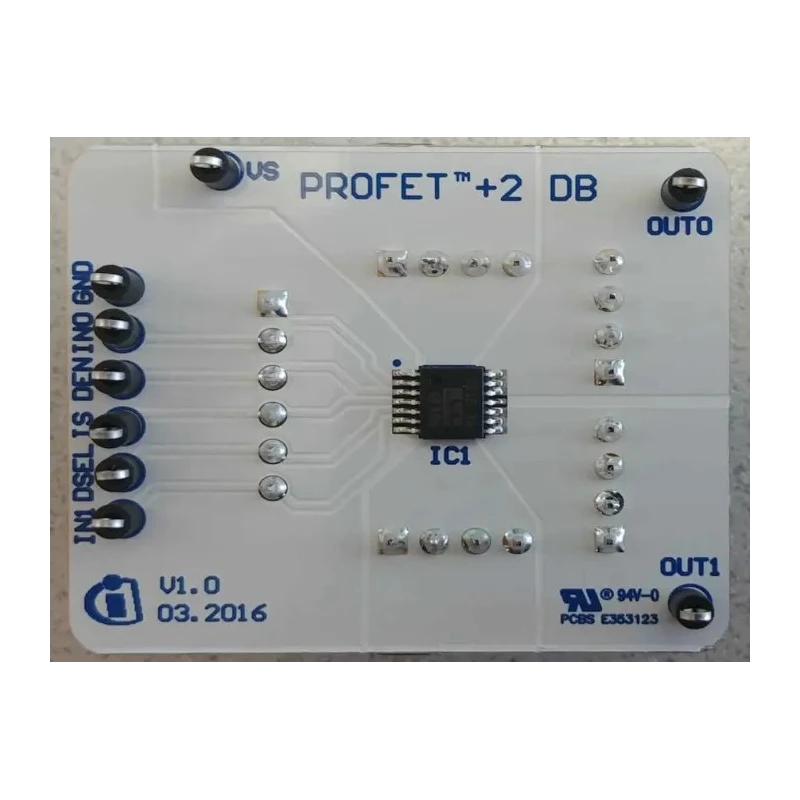

Infineon Evaluation Board with BTS7030-2EPA High-Side Switch Automotive Compatible BTS7030-2EPA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BTS7030-2EPA |
| For Use With | Automotive |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | BTS7030-2EPA |
| Kit Name | BTS7030-2EPA DAUGH BRD |
Key Features
- The board includes one BTS7030-2EPA high-side switch device.
- Compatible with PROFET™+2 12V motherboard systems for ease of use.
- Provides protection against current tripping, over-temperature, and overvoltage conditions.
- Includes load current sense output for precise load diagnosis.
- Optimized for design flexibility with pin-to-pin and external component compatibility across the BTS family.
- Miniaturized design supports compact laboratory setups and evaluations.
Product Description
The Infineon BTS7030-2EPA Evaluation Board is a specialized automotive-grade development board containing one high-side switch device, model BTS7030-2EPA. It is engineered to be compatible with the PROFET™+2 12V motherboard, facilitating seamless integration into existing test environments for motor, power, and robotics control systems.
This daughterboard is designed to provide electrical engineers and system developers a quick pick-and-place evaluation solution, removing the complexity of prototyping the BTS7030-2EPA device individually.
Key protective features integrated into the board include current tripping safeguards, over-temperature cutoffs, overvoltage mitigation, and load diagnosis via a load current sense output. These protections are critical for automotive system safety and reliability assessments.
The board's architecture is optimized for broad design flexibility, maintaining pin-to-pin compatibility within the BTS family and supporting external components to enable diverse application scenarios. Miniaturization efforts ensure the board occupies minimal space, supporting compact and ergonomic test bench layouts.
The board includes one BTS7030-2EPA high-side switch device. Compatible with PROFET™+2 12V motherboard for standardized use. Protection features for current tripping, over-temperature, and overvoltage. Load diagnosis through load current sense output.
Design flexibility with pin-to-pin and component compatibility with BTS family. Miniaturized form factor suitable for small laboratory environments.
This Evaluation Board is ideal for automotive industry development, testing, and research labs focusing on advanced motor control, power electronics, and embedded system integration. The device enables accurate performance assessment and aids in rapid prototyping of high-side switching applications.
Explore a comprehensive range of development boards and evaluation tools within the Industrial Electronics category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The main component of this evaluation board is the BTS7030-2EPA high-side switch device.
The board includes protective features such as current tripping safeguards, over-temperature cutoffs, and overvoltage mitigation to ensure safety during operation.
Yes, it is compatible with PROFET™+2 12V motherboard systems, facilitating integration into existing test environments.
This evaluation board is intended for automotive industry development, testing, and research labs focusing on advanced motor control, power electronics, and embedded system integration.
The load current sense output is used for precise load diagnosis, allowing for accurate performance assessment during testing.
The specific dimensions and weight of the evaluation board are not provided in the available data.
The country of origin for this evaluation board is India.
This evaluation board complies with RoHS standards, ensuring it meets environmental regulations.
The board's design is optimized for flexibility with pin-to-pin compatibility within the BTS family and support for external components.
The kit classification of this product is an Evaluation Board, specifically named BTS7030-2EPA DAUGH BRD.
The miniaturized design of this board supports compact laboratory setups and evaluations, making it suitable for small test bench layouts.
The featured device on this evaluation board is the BTS7030-2EPA high-side switch.
