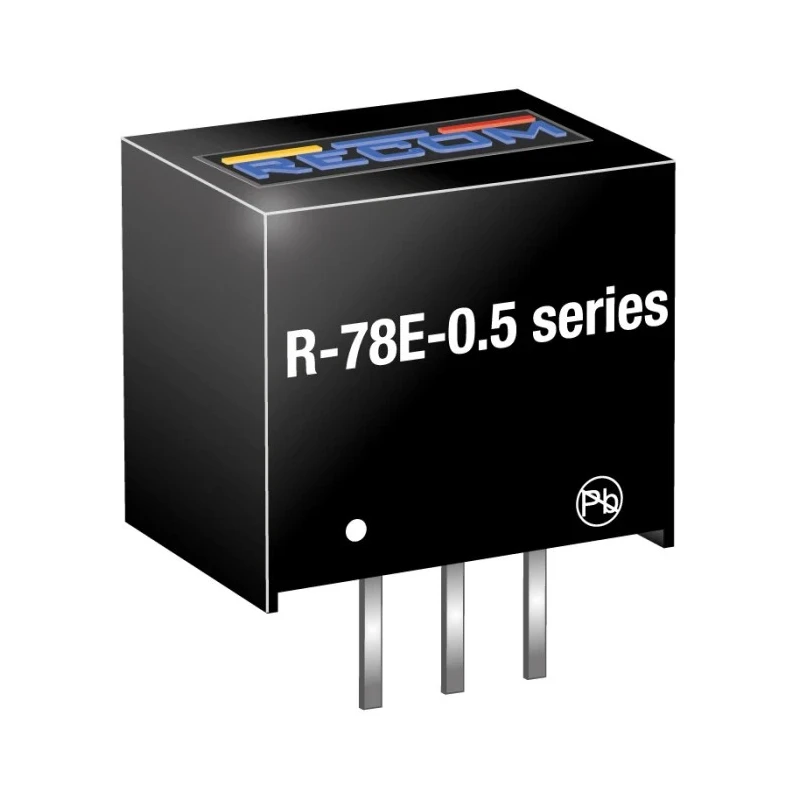

Recom Switching Regulator, Through Hole, 12V DC Output Voltage, 28V DC Input Voltage, 500 mA Output Current, 6W R-78E12-0.5

Recom R-78E12-0.5 switching regulator is a through-hole mounted DC-DC converter designed to provide a stable 12V DC output voltage from an input DC voltage ranging between 15 and 28 volts. It supports output currents up to 500 mA with a power output of 6W, making it suitable for various electronic applications that require reliable voltage regulation.

This regulator is housed in a compact TO-220 package measuring 11.6mm in length, 10.4mm in width, and depth, facilitating efficient board space usage. The high efficiency of 95% minimizes power loss and heat generation, reducing the need for additional cooling measures.

It operates reliably within a wide temperature range of -40°C to +85°C, suitable for industrial, military hardware, steel mills, and lift applications where environmental conditions are demanding. Ripple and noise are kept low at 70 mV peak-to-peak ensuring stable operation of sensitive electronic components.

Line regulation of ±0.5% and load regulation of ±1% ensure steady voltage output despite fluctuations in input voltage and output current, maintaining the integrity of device performance. The mean time between failure (MTBF) is an impressive 2,182,000 hours at maximum operating temperature, indicating long operational lifetime.

The product meets RoHS compliance requirements, emphasizing its safety and environmental standards adherence. Its through-hole mounting style allows for solid PCB connection suitable for intense operational conditions.

High efficiency reduces power consumption and heat generation. Robust operating temperature suitable for harsh and industrial environments. Low ripple and noise preserve circuit stability and component longevity. Excellent line and load regulation for reliable voltage consistency.

Compact TO-220 package enables easy integration in constrained spaces. Extremely long MTBF means high reliability over extended periods. Wide input voltage range adds flexibility for various power supply conditions. RoHS compliant assuring environmental and safety standards.

Ideal for use in industrial electronics, military hardware, steel manufacturing equipment, lifts, and other demanding environments that require precise and stable DC power supply. Explore the full range of Switching Regulators and voltage converters on EnvMart for comprehensive solutions to your power regulation needs.
