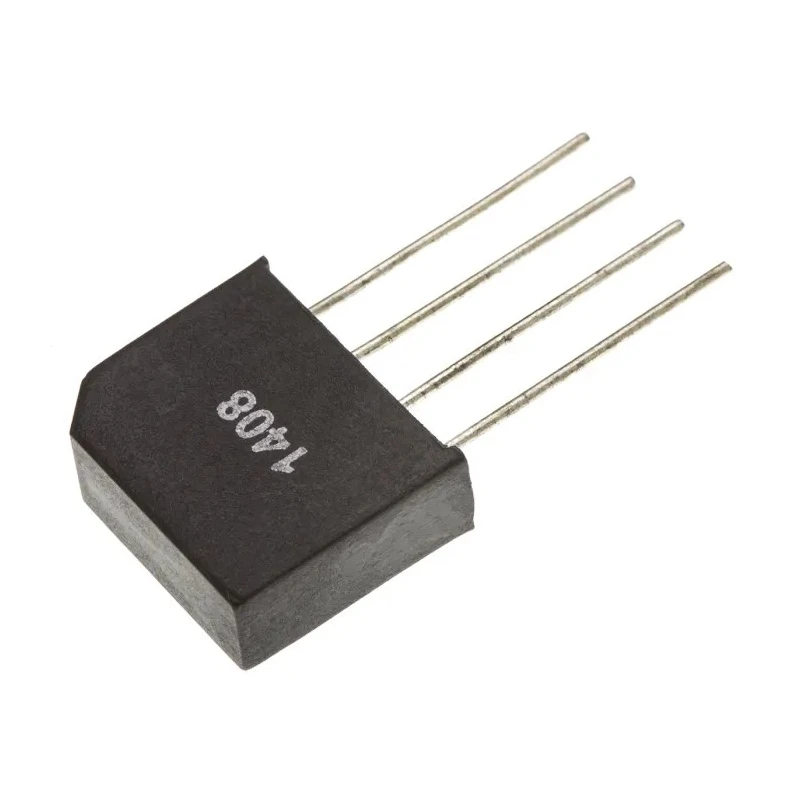

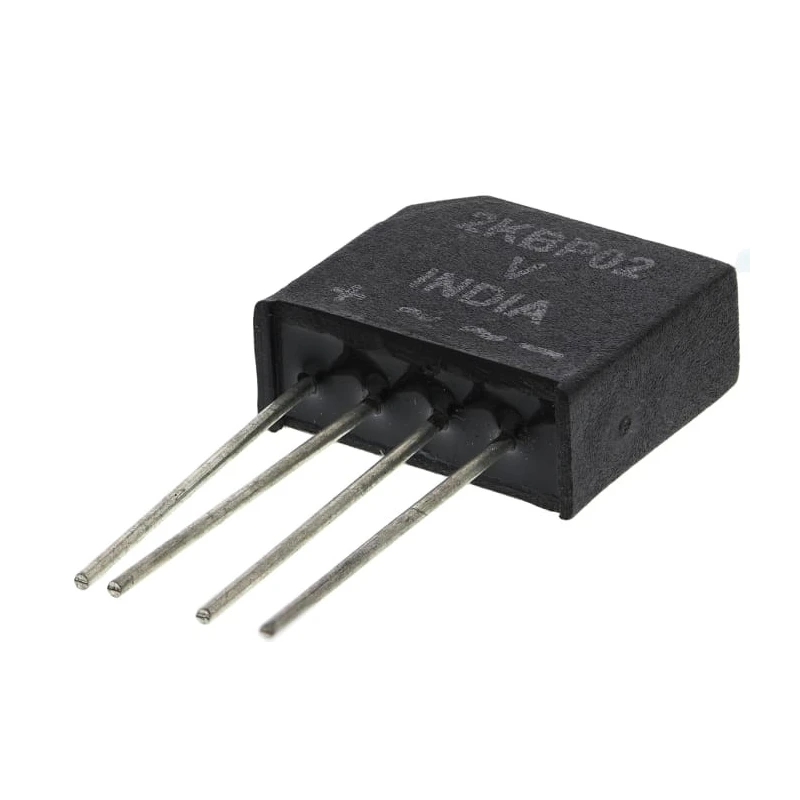

Vishay Bridge Rectifier, 200 V Peak Reverse Voltage, 63 A Surge Current, 2 A Forward Current, 4-Pin Single Phase VS-2KBP02

Name: Vishay Bridge Rectifier, 200 V Peak Reverse Voltage, 63 A Surge Current, 2 A Forward Current, 4-Pin Single Phase VS-2KBP02
Brand: Vishay
SKU: 182927
Price: 1.5 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	15mm
Length	17.5mm
Model	VS-2KBP02
Width	6.8mm
Mount Type	Through Hole
Series	VS-2KBP
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-44
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	200V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	63A
Forward Current If	2A
Peak Forward Voltage Vf	1V
Vishay Bridge Rectifier, 400 V 63 A, 4-Pin SingleBrand	Vishay
Vishay Bridge Rectifier, 2A, 200V, 4-PinBrand	Vishay

Key Features

Compact through-hole mounting D-44 package ensures ease of PCB integration.
Maximum operating temperature of 150°C supports industrial environments.
Forward current rating of 2 A suitable for general electronic applications.
Robust design provides peak non-repetitive forward surge current of 63 A.
Operates within temperature range of -40°C to 150°C for versatility.
Low peak forward voltage of 1 V minimizes power losses.
Single configuration diode bridge for AC to DC conversion.
Sized 17.5 mm in length, 15 mm height, and 6.8 mm width for compact footprint.

Product Description

Vishay VS-2KBP02 is a single-phase bridge rectifier designed to convert AC into DC with full-wave rectification. It features a compact D-44 through-hole package with four pins, optimized for printed circuit board mounting. With a peak reverse repetitive voltage (Vrrm) of 200 V and a forward current rating (If) of 2 A, it is suitable for robust general-purpose applications in industrial and consumer electronics.

This bridge rectifier supports a peak non-repetitive forward surge current (Ifsm) of 63 A, enabling it to handle transient surges effectively. It operates reliably across a wide temperature range from -40°C minimum to 150°C maximum, making it excellent for harsh environments. The low peak forward voltage of 1 V reduces power dissipation and improves efficiency.

The compact dimensions of 17.5 mm length, 15 mm height, and 6.8 mm width allow for space-efficient PCB design. Although not certified for automotive standards, the VS-2KBP02 offers dependable performance for industrial manufacturing equipment, power supplies, HVAC controllers, and other electronic devices requiring steady DC power.

Compact through-hole mounting D-44 package. Single-phase 4-pin configuration for full-wave rectification. Peak reverse voltage of 200 V and peak surge current of 63 A. Operating temperature from -40°C to 150°C ensures versatility.

Low power loss with 1 V peak forward voltage. Ideal for industrial and consumer electronic power applications. Explore more Bridge Rectifiers and semiconductor solutions on EnvMart for advanced industrial and laboratory uses.
