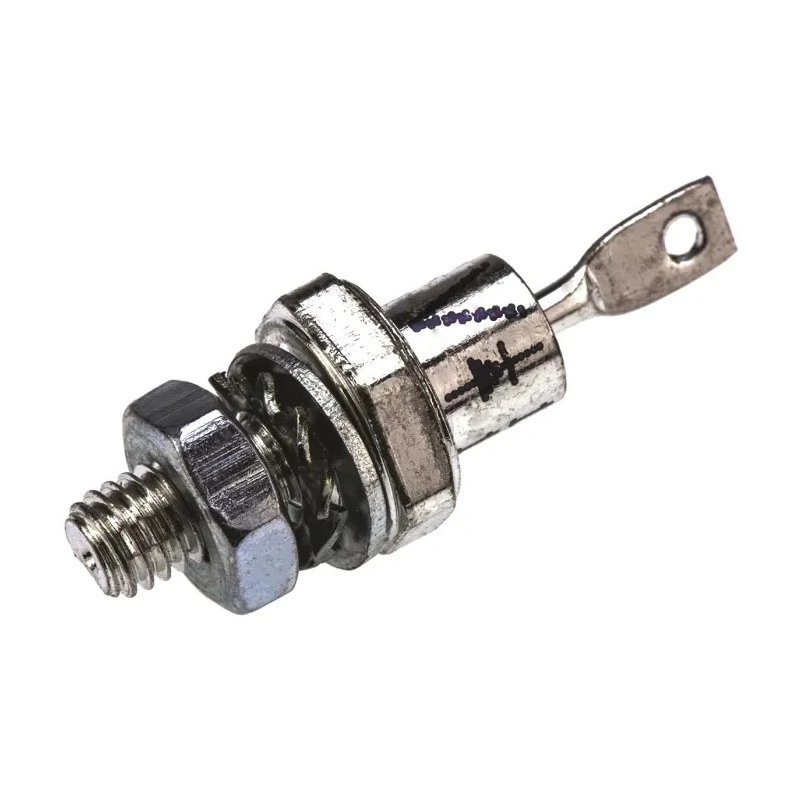

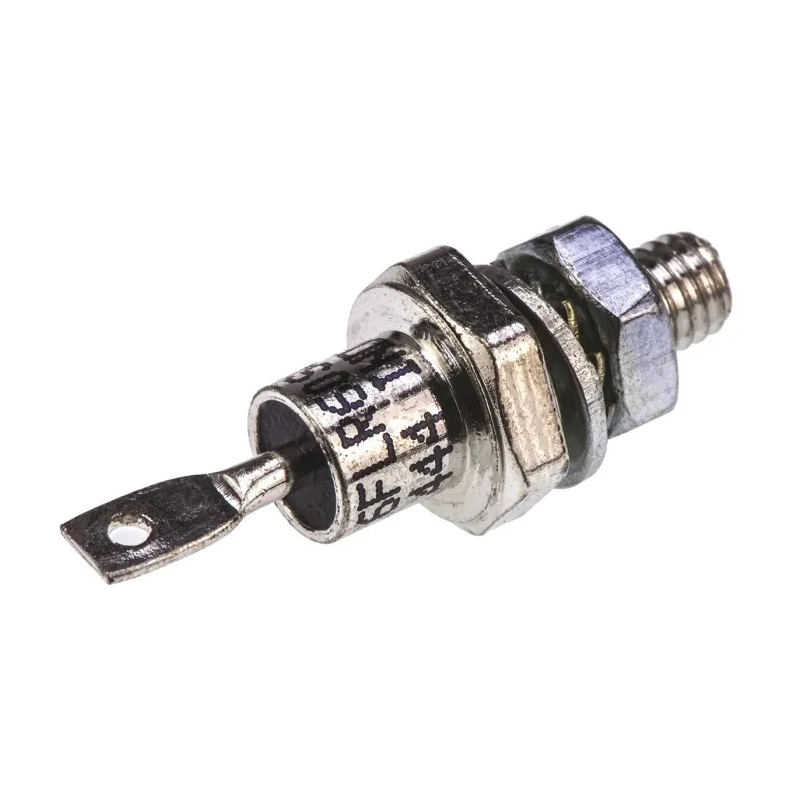

Vishay 600 V 16 A Fast Recovery Diode 2-Pin DO-203AA VS-16FLR60S02
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-16FLR60S02 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-16 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 225A |
| Maximum Forward Voltage Vf | 1.4V |
| Peak Reverse Recovery Time trr | 200ns |
| Vishay 800 V 16 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- Maximum continuous forward current of 16 amperes ensures reliable performance.
- Peak reverse repetitive voltage rating of 600 volts for high voltage applications.
- Fast recovery rectifier type with peak reverse recovery time of 200 nanoseconds.
- Compact 2-pin DO-203AA stud anode package measuring 31.8 mm height and 12.69 mm length.
- Wide operating temperature range from -65°C to 150°C for harsh environments.
- Peak non-repetitive forward surge current rating of 225 amperes for transient conditions.
- Maximum forward voltage drop of 1.4 volts for efficient conduction.
- Low peak reverse current leakage of 50 microamperes to reduce power loss.
Product Description
Vishay VS-16FLR60S02 is a high-efficiency fast recovery diode designed for power electronics applications requiring 600 V voltage and 16 A current ratings. It comes in a 2-pin DO-203AA stud anode package with compact dimensions of 31.8 mm height, 12.69 mm length, and 11 mm diameter. The device features a fast recovery rectifier capability with a peak reverse recovery time of 200 ns, making it suitable for switching power supplies and high-frequency rectification.
This diode supports a wide operating temperature range from -65°C to 150°C, providing reliable performance in industrial, laboratory, manufacturing, and commercial electronics environments. The peak non-repetitive forward surge current of 225 A ensures durability under occasional surge conditions. Its low peak reverse current of 50 μA reduces leakage losses, and the maximum forward voltage of 1.4 V contributes to overall system efficiency.
The VS-16FLR60S02 is a versatile diode suitable for use in power supply rectification, voltage regulation, and protection circuits. Its screw mount type allows secure attachment in assemblies requiring robust mechanical stability. The device meets industry standards but carries no specific automotive standard or special approvals.
Maximum continuous forward current of 16 amperes ensures reliable performance. Peak reverse repetitive voltage rating of 600 volts for high voltage applications. Fast recovery rectifier type with peak reverse recovery time of 200 nanoseconds.
Compact 2-pin DO-203AA stud anode package measuring 31.8 mm height and 12.69 mm length. Wide operating temperature range from -65°C to 150°C for harsh environments. Peak non-repetitive forward surge current rating of 225 amperes for transient conditions.
Maximum forward voltage drop of 1.4 volts for efficient conduction. Low peak reverse current leakage of 50 microamperes to reduce power loss.
This product is ideal for industrial electronics, power management systems, laboratory equipment, and commercial electronic devices. Explore our range of Vishay semiconductor diodes on EnvMart for reliable electronic components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-16FLR60S02 diode is 16 amperes.
This model has a peak reverse repetitive voltage rating of 600 volts, making it suitable for high voltage applications.
The peak reverse recovery time for the VS-16FLR60S02 is 200 nanoseconds, allowing for efficient switching in power applications.
The diode comes in a compact 2-pin DO-203AA package with a height of 31.8 mm and a length of 12.69 mm, and a diameter of 11 mm.
It operates within a wide temperature range from -65°C to 150°C, making it suitable for harsh environments.
The peak non-repetitive forward surge current rating is 225 amperes, allowing it to handle transient conditions effectively.
The maximum forward voltage drop is 1.4 volts, which contributes to efficient conduction.
The peak reverse current leakage is 50 microamperes, which helps reduce power loss in applications.
The VS-16FLR60S02 features a screw mount type, allowing for secure attachment in various assemblies.
This diode is suitable for power supply rectification, voltage regulation, and protection circuits in industrial and commercial electronics.
The diode configuration is a stud anode, which is designed for robust mechanical stability in electronic assemblies.
The Vishay VS-16FLR60S02 is manufactured in India.
